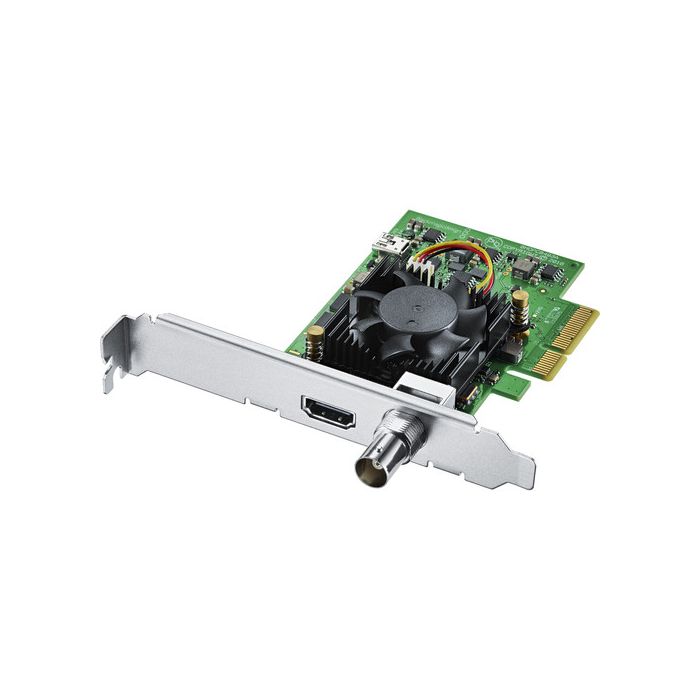

Blackmagic Design DeckLink Mini Recorder 4Kby Blackmagic Design
Blackmagic Design DeckLink Mini Recorder 4K. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects, the Decklink Mini Recorder 4K has you covered.
- Blackmagic Design DeckLink Mini Recorder 4K
- Low-Profile Bracket
Record SD, HD, or 4K footage via HDMI or SDI with the Blackmagic Design DeckLink Mini Recorder 4K. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects, the Decklink Mini Recorder 4K has you covered. The input panel holds a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both capable of DCI and UHD 4K resolutions.
Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.
The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.
- Color Space Conversion: Hardware-based, real-time color space conversion
- HD Up-Conversion: Software-based down-conversion during video playback
- DaVinci Resolve, Fusion, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Media Express, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
|I/O||1 x BNC, SD/HD/3G/6G-SDI input
1 x HDMI Type A, v2.0 input
|Computer Interface||PCI-E 2.0 x4|
Canon XF (MPEG-2)
Apple ProRes 4444/422 HQ/422/LT/Proxy
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
|Resolution Support||4096 x 2160 23.98/24/25
3840 x 2160 23.98/24/25/29.97/30
|SDI Compliance||SMPTE 259M, 292M|
|SDI Metadata Support||VITC read for 3:2 pulldown removal
VANC capture using up to 3 lines of video in file
HD RP188 and closed captioning
|Audio Sampling||24-bit, 48 kHz|
|Color Spaces Supported||REC 601, REC 709, REC 2020|
|Operating System Support||MacOS 10.10 or later
Windows 7/8.1/10 (64-bit)
|Certification||FCC, CE and C-Tick|
|Environmental||Operating Temperature: 32 to 104°F / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Humidity: 0-90%, non-condensing
|Dimensions||Length: 4.7" / 119 mm
Form Factor: Half-height, half-length
|Weight||3.2 oz / 90 g|
