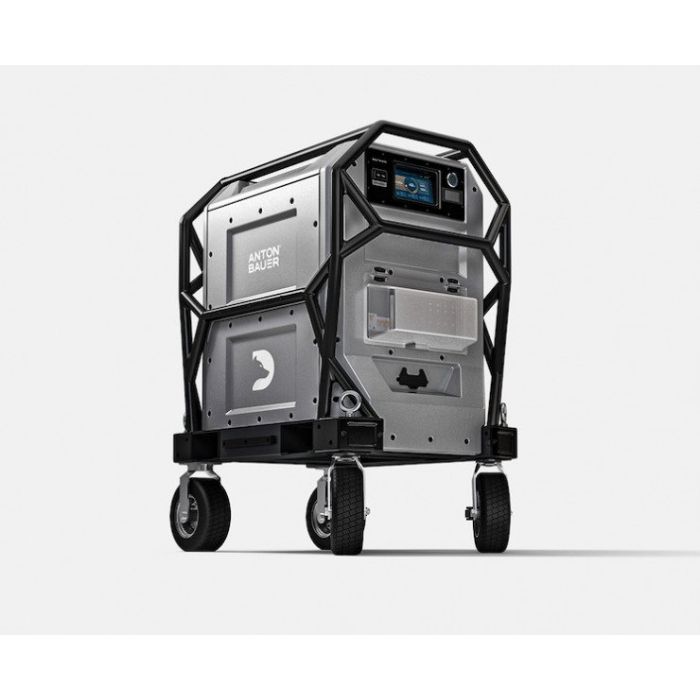

Anton Bauer Salt-E Dog 9kWh Sodium Sustainable Power Supply

by Anton Bauer
Auf Anfrage
SKU
Salt-E-Dog
The Anton/Bauer Salt-E Dog is the first sodium battery designed and built for the motion picture and television industry.

Paket beinhaltet

  • Anton Bauer Salt-E Dog 9kWh Sodium Sustainable Power Supply

Big Production Power, Small carbon footprint.

The Anton/Bauer Salt-E Dog is the first sodium battery designed and built for the motion picture and television industry.

Using sodium chemistry, the 9kWh battery delivers consistent, reliable power that is cleaner and more environmentally safe than fossil fuel or lithium generators.

With no noise, and no pollution, Salt-E Dog helps productions to deliver on net-zero sustainability pledges and maintain quality standards without compromise.

Flexible Freedom

The perfect off-the-grid or on-the-go power source for your production, thanks to its robust construction and portable design. Recharge from a range of convenient sources, including grid power, solar PV, and Level 2 EV charge points.

Pure Power

A pure sine wave output means no risk of dirty power causing damage to sensitive equipment. Its clean and stable output matches grid power so you can power your set with confidence, capturing every shot without a hitch.

Safe On Set

Safety is key, and the sodium cell technology in Salt-E Dog delivers a safer and more secure production experience. Safely place the unit near equipment, in vehicles, or even with talent with no risk of thermal runaway or fire. Eliminate the need for fire marshals on set, water trucks, and lower insurance premiums.

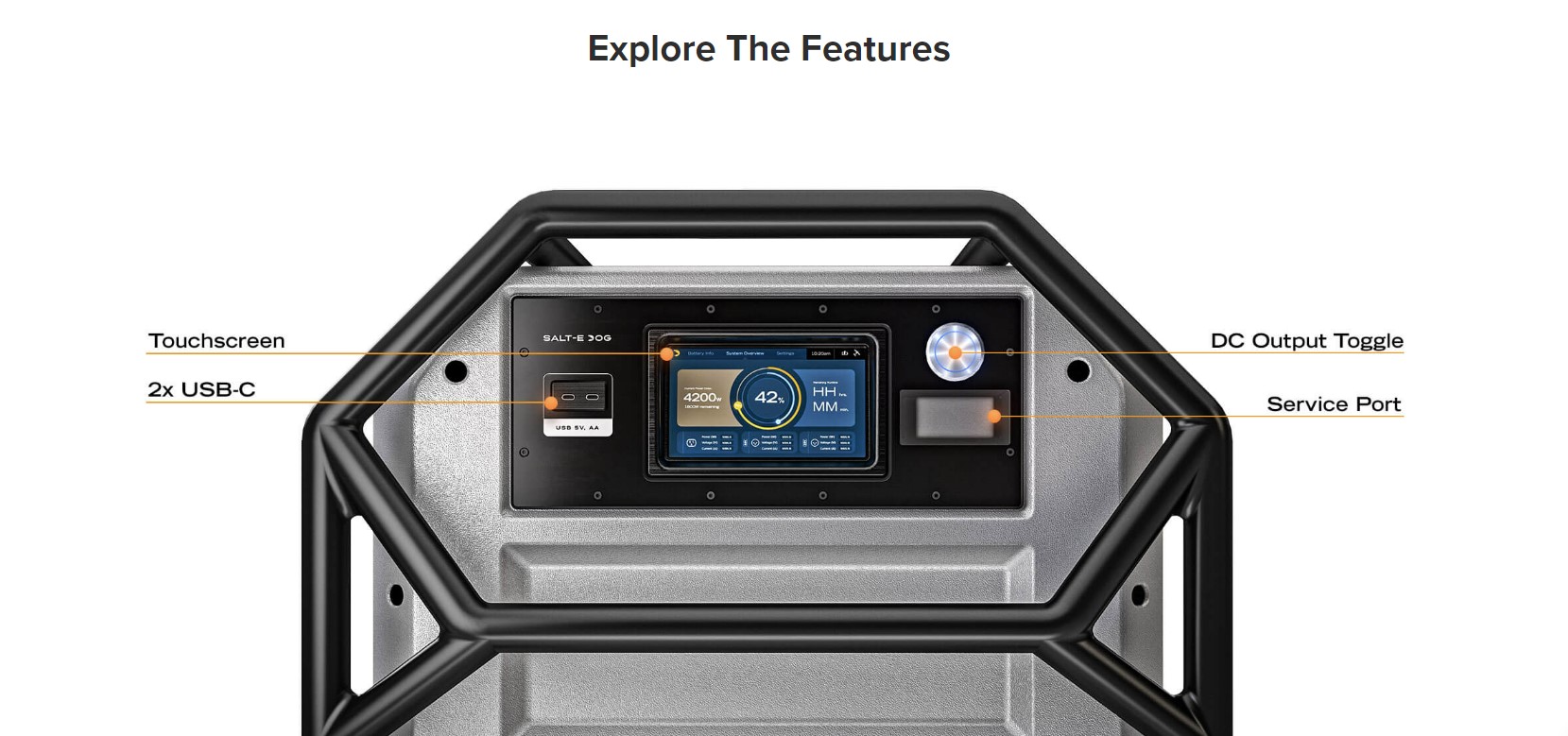

Real Time Smart Display

Take charge and plan power usage with the 7” display. The touch screen shows real-time capacity, time-to-empty or time to full charge in hours and minutes, along with access to system settings.







Battery Info
Capacity 9kWh
Cell Chemistry Sodium Nickel Chloride
Life Cycle 4500 cycles (80% DOD)
Invertor Type Pure Sine Wave (+/- 2%)
Shelf Life 20 years

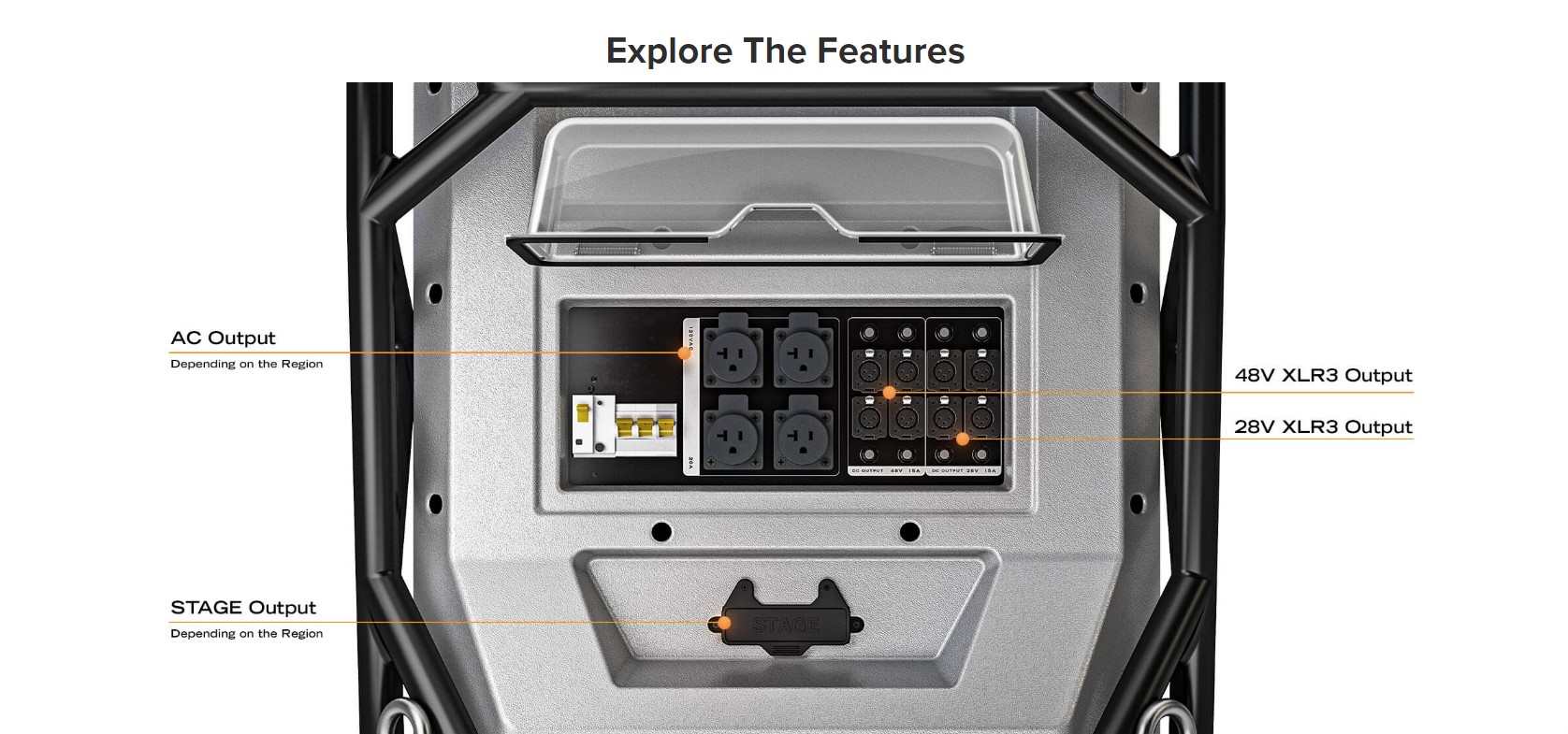

Outputs 4 x 120VAC 20A
AC Output 4 x 28VDC 16A
XLR3 4 x 48VDC 16A
USB-C 2 x 5-20V, 100W
Stage (Bates) 125V, 50A Female
Maximum Continuous Output 6000W

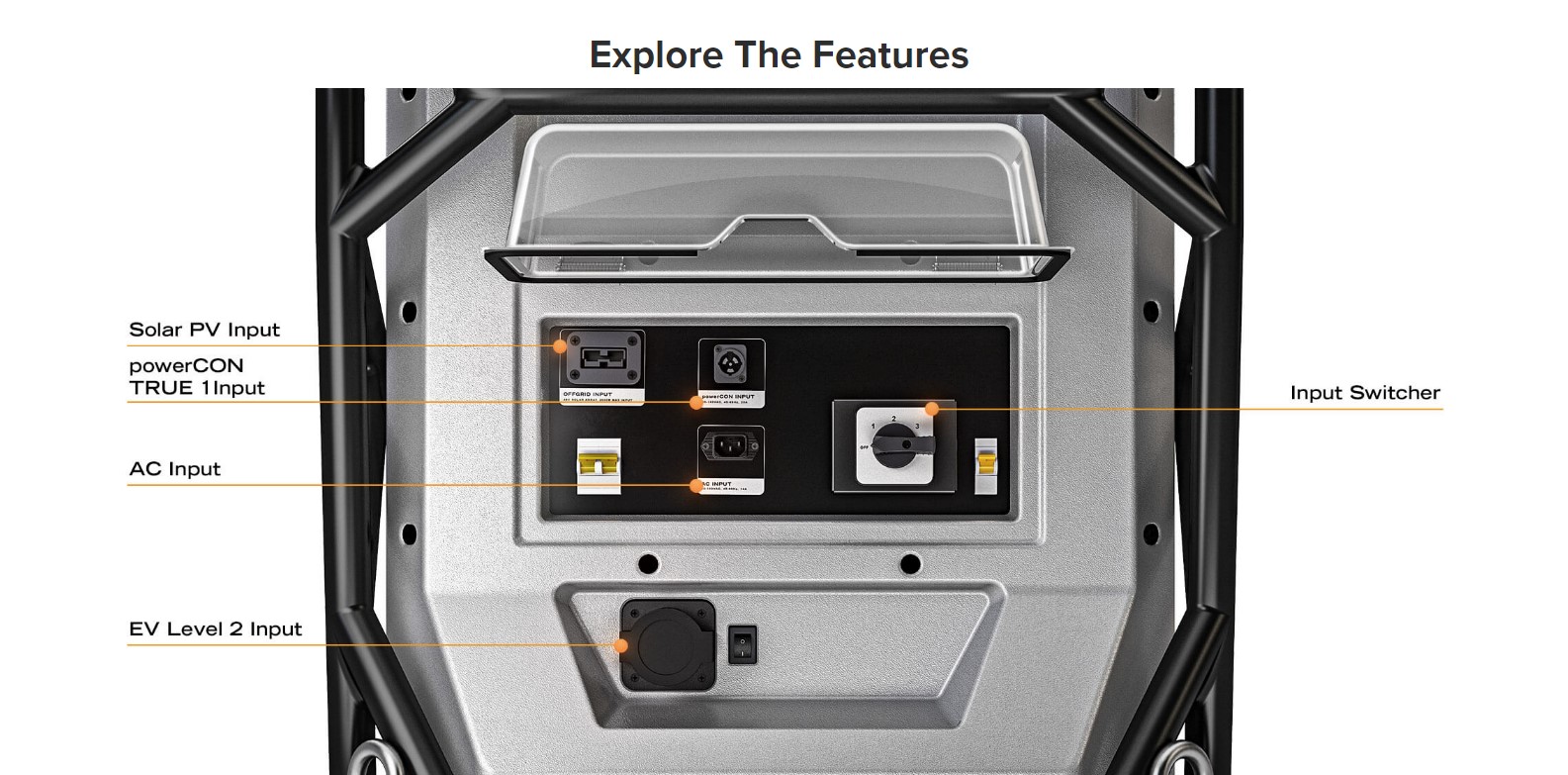

Inputs
AC Adaptor 20A IEC 320-C20
EV Charger CCS Level 2 (J1772)
PowerCon True1 TOP (20A)
Solar PV 48~98V
Voltage Range 90~140 VAC
Recharge Times
AC Adaptor ≈10 Hours 0~100%
  ≈6 Hours 0~80%
EV Charger ≈11 Hours
Solar PV ≈12 Hours (With prime sunshine,
  ideal orientation and low temp)
General
Display 7” touchscreen
Weight 661 lbs (300 kg)
Dimensions (inc tyres) 29.5 x 51.9 x 39.3”
  / 75 x 132 x 100cm
Tires 12” puncture-proof
Operating Temperature 14-140F (-10 to +60C)
Storage Temperature 14-140F (-10 to +60C)
Certification IEC62984 (Pending)
