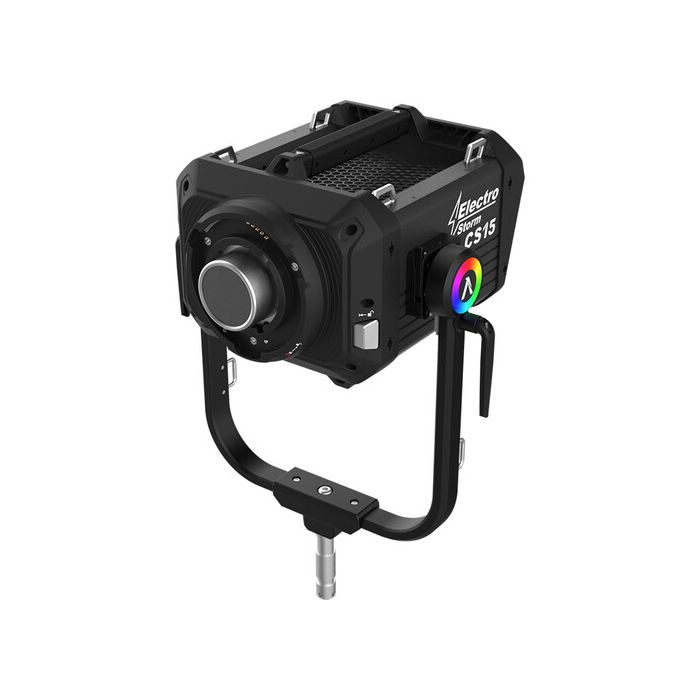

Aputure Electro Storm CS15 Flight Case version

by Aputure
Verfügbarkeit: Auf Lager
SKU
AP-STORMCS15FC

Designed with power and durability for film and television professionals, the Electro Storm CS15 RGB LED Monolight from Aputure is a full-color point-source fixture offering 1500W of ultra-high color quality.

9.987,50 € 7.990,00 €

Paket beinhaltet

  • CS15 Lamp head
  • CS15 Controlbox
  • Removable Yoke for CS15/XT26
  • Controlbox Handcart
  • Electro Storm CS15/XT26 Head Cable (15m)
  • EU plug - AC Power Cable for CS15 (6m)
  • Aputure Mount 35* Reflector
  • Barndoor for 35*/50* Reflector
  • Aputure Mount Barndoor adapter for Barndoor
  • Aputure Mount Protection Cover
  • Packaging Standard carton version:EPP foam + Honeycomb cardboard + pallet

Designed with power and durability for film and television professionals, the Electro Storm CS15 RGB LED Monolight from Aputure is a full-color point-source fixture offering 1500W of ultra-high color quality. The CS15 provides 2000-10,000K CCT and tint control, dual accessory mounts, advanced connectivity options, and a rugged IP65 dust- and weather-resistant construction to withstand demanding filming environments. Made with optimization and versatility in mind, filmmakers and lighting technicians will appreciate this powerful, color-accurate, RGB fixture that is ideal for illuminating large areas. This CS15 version comes with a US plug. A robust flight case is also included for storage and transportation.

  • Light with Flight Case
  • Output: 32,600 Lux at 9.8' w/ Reflector
  • 2000-10,000K CCT; Full RGB Color Control
  • AC or Battery Power
  • Onboard, DMX & App Control
  • Art-Net, sACN & LumenRadio CRMX Control
  • SSI (D56) 86 | SSI (Tungsten) 89
  • Advanced Liquid-Cooling, IP65 Rated
  • Electronic A-Mount, Bowens S Mount
  • Includes 35° Reflector & Control Box

Chipsets and Color Accuracy

The full-color LED chipset goes just beyond 1500W of power output that rivals industry-standard 1800W HMIs, providing expanded color controls across its broad 2000 to 10,000K CCT range. It also offers green-magenta adjustment and impressive coverage of over 90% of colors within the Rec. 2020 color space. The dual-blue LED chipset design allows the light to achieve broad spectral reproduction, boasting an SSI of daylight and tungsten at 86 and 89, respectively. This ensures industry-leading color quality in all shooting environments. The CS15 outputs up to 32,600 lux at a distance of 9.8' using its included 35° reflector.

Professional Connectivity

Designed with professionals in mind, the CS15 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net & sACN via etherCON, and 16-bit DMX512. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.

Expanded Mounting Options

Featuring dual accessory mounts, the CS15 offers both the universal Bowens Mount and the innovative electronic A-Mount compatibility. This unique combination makes it one of the most adaptable fixtures on the market, catering to a wide range of modifier options, such as the versatile Spotlight Max. The A-Mount, designed for heavy-duty modifiers, including the optional F14 Fresnel, guarantees stability, durability, and optimized color accuracy while supporting motorized focus control. The Aputure mount is also compatible with the optional 20 and 50° reflectors.

Advanced Liquid Cooling Technology

To effectively manage heat dissipation and maximize light output, the CS15 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.

Additional Benefits

The fixture comes with 15 built-in lighting effects, XY color control, advanced HSI, over 300 gel presets, and max and constant output modes. 0.1 to 100% stepless dimming is available as well as PWM and high-speed flicker-free dimming modes. Adding to its versatility, it also supports battery operation via dual 48 VDC inputs. In terms of convenience, the CS15's included high-output control box features side and top-facing ports, and a control box handcart is also supplied for easy transportation. If needed, users can also benefit from an optional motorized yoke that allows for smooth remote operation.

Light Fixture
Item Type 1 x LED Monolight
Included Light Modifier 1 x Reflector
Included Storage Case 1 x Case
Photometrics 2000K:
  8645 fc / 93,060 Lux at 3.3' / 1 m (with Reflector)*
  960 fc / 10,340 Lux at 9.8' / 3 m (with Reflector)
  344 fc / 3710 Lux at 16.4' / 5 m (with Reflector)
  3200K:
  24,079 fc / 259,200 Lux at 3.3' / 1 m (with Reflector)*
  2675 fc / 28,800 Lux at 9.8' / 3 m (with Reflector)
  985 fc / 10,610 Lux at 16.4' / 5 m (with Reflector)
  4300K:
  26,011 fc / 279,990 Lux at 3.3' / 1 m (with Reflector)*
  2890 fc / 31,110 Lux at 9.8' / 3 m (with Reflector)
  1029 fc / 11,080 Lux at 16.4' / 5 m (with Reflector)
  5600K:
  27,256 fc / 293,400 Lux at 3.3' / 1 m (with Reflector)*
  3028 fc / 32,600 Lux at 9.8' / 3 m (with Reflector)
  1082 fc / 11,650 Lux at 16.4' / 5 m (with Reflector)
  10000K:
  22,992 fc / 247,500 Lux at 3.3' / 1 m (with Reflector)*
  2554 fc / 27,500 Lux at 9.8' / 3 m (with Reflector)
  933 fc / 10,050 Lux at 16.4' / 5 m (with Reflector)

  *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature 2000 to 10,000K
Color Modes RGB
Color Accuracy Standard SSI 86 at 5600K
  SSI 89 at 3200K
  CRI 98
  TLCI 98
  CQS 97
  TM-30 Rf 93
  TM-30 Rg 101
Cooling System Fan
Dimming Built-In Dimmer
   • 0.1 to 100%
Beam Angle 62° Unmodified
Built-In Flash No
Front Accessory Mount Proprietary
  Bowens S
Connectivity
Wireless Remote Control Type Bluetooth
  Wireless CRMX
Mobile App Compatible Yes: Android & iOS
  App Name: Sidus Link
  *As of December, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Range 328.1' / 100 m
Max DMX Control Channels 512
Power & I/O
Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)
  Battery (Not Included)
Inputs/Outputs Power Supply/Controller
  1 x XLR 5-Pin DMX Input
  1 x XLR 5-Pin DMX Output
  1 x etherCON/RJ45 Remote/Network Input/Output
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 48 VDC at 19 A
Included Adapter / Cable Yes
Power Consumption 1500 W
  2200 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
Environmental
Operating Temperature -4 to 113°F / -20 to 45°C

Storage Temperature -40 to 185°F / -40 to 85°C
General
Display Yes
Dimensions 18 x 13.9 x 11.1" / 45.7 x 35.2 x 28.1 cm (Fixture without Yoke)
  21.7 x 10.7 x 10.3" / 55 x 27.3 x 26.2 cm (Power Supply/Controller)
Weight 39.7 lb / 18 kg (Fixture without Yoke)
  41.9 lb / 19 kg (Power Supply/Controller)
