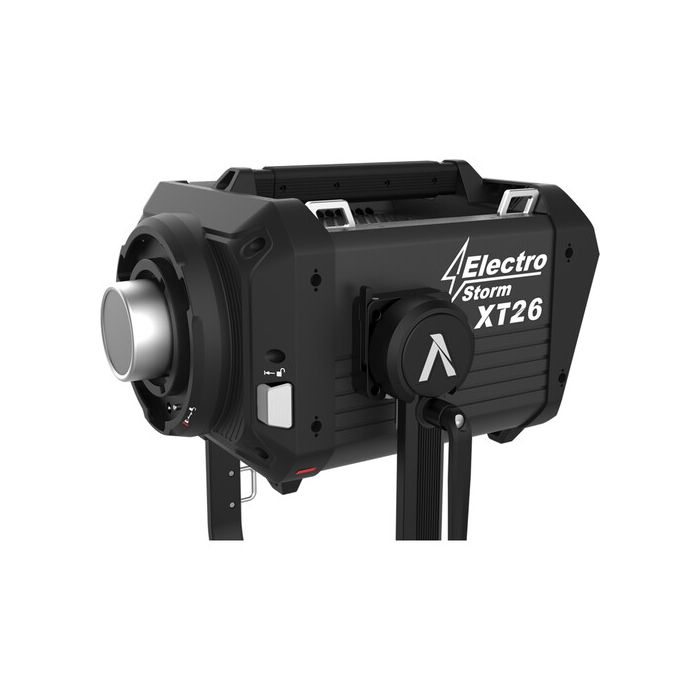

Aputure ELECTRO STORM XT26 with Flight Case

by Aputure
Verfügbarkeit: Auf Lager
SKU
AP-STORMXT26FC

Designed with power and durability for film and television professionals, the Electro Storm XT26 Bi-Color LED Monolight from Aputure is a bi-color point-source fixture offering 2600W of dynamic white CCT from 2700 to 6500K and tint control, dual accessory mounts, advanced connectivity options, and a rugged IP65 dust and weather resistant construction to withstand demanding filming environments.

11.237,50 € 8.990,00 €

Paket beinhaltet

  • XT26 Lamp head
  • XT26 Controlbox
  • Removable Yoke for CS15/XT26
  • Controlbox Handcart
  • Electro Storm CS15/XT26 Head Cable (15m)
  • PCE CEE PLUG (16A) - AC Power Cable for XT26 (6m)
  • Aputure Mount 35* Reflector
  • Barndoor for 35*/50* Reflector
  • Aputure Mount Barndoor adapter for Barndoor
  • Aputure Mount Protection Cover
  • Packaging Flight Case version: EPP foam + Flight Case

Designed with power and durability for film and television professionals, the Electro Storm XT26 Bi-Color LED Monolight from Aputure is a bi-color point-source fixture offering 2600W of dynamic white CCT from 2700 to 6500K and tint control, dual accessory mounts, advanced connectivity options, and a rugged IP65 dust and weather resistant construction to withstand demanding filming environments. The XT26's innovative electronic modifiers provide enhanced optimization and motorized control. This XT26 version comes with a US plug. A robust flight case is also supplied for storage and transportation.

  • Light with Flight Case
  • Output: 65,200 Lux at 9.8' w/ Reflector
  • 2700-6500K CCT
  • AC or Battery Power
  • Onboard, DMX & App Control
  • Art-Net, sACN & LumenRadio CRMX Control
  • CRI 98 | TLCI 98 | SSI 74/85
  • Advanced Liquid-Cooling, IP65 Rated
  • Electronic A-Mount, Bowens S Mount
  • Includes 35° Reflector & Control Box

Chipsets and Color Accuracy

In addition to a 2600W output that rivals industry-standard 12,000W tungsten Fresnels and 4000W HMIs, the light is equipped with a powerful chipset that delivers accurate color reproduction across its tunable CCT range from 2700 to 6500K. It offers a CRI and TLCI of 98 and SSI of daylight and tungsten at 74 and 85, respectively. The latest-generation dynamic white chipset also introduces green-magenta color correction, allowing for precise adjustments between 3000 to 6000K. The XT26 outputs up to 65,200 lux at a distance of 9.8' using its included 35° reflector.

Professional Connectivity

Designed with professionals in mind, the XT26 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net & sACN via etherCON, and 16-bit DMX512. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.

Expanded Mounting Options

Featuring dual accessory mounts, the XT26 offers both the universal Bowens Mount and the innovative electronic A-Mount compatibility. This unique combination makes it one of the most adaptable fixtures on the market, catering to a wide range of modifier options, such as the versatile Spotlight Max. The A-Mount, designed for heavy-duty modifiers, including the optional F14 Fresnel, guarantees stability, durability, and optimized color accuracy while supporting motorized focus control. The Aputure mount is also compatible with the optional 20 and 50° reflectors.

Advanced Liquid Cooling Technology

To effectively manage heat dissipation and maximize light output, the XT26 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.

Additional Benefits

The fixture comes with nine built-in lighting effects and max and constant output modes. 0.1 to 100% stepless dimming is available as well as PWM and high-speed flicker-free dimming modes. Adding to its versatility, it also supports battery operation via dual 48 VDC inputs. In terms of convenience, the XT26's included high-output control box features side and top-facing ports, and a control box handcart is also supplied for easy transportation. If needed, users can also benefit from an optional motorized yoke that allows for smooth remote operation.

Light Fixture
Item Type 1 x LED Monolight
Included Light Modifier 1 x Reflector
Included Storage Case 1 x Case
Photometrics 2700K:
  30,350 fc / 326,700 Lux at 3.3' / 1 m (with Reflector)*
  3372 fc / 36,300 Lux at 9.8' / 3 m (with Reflector)
  1178 fc / 12,690 Lux at 16.4' / 5 m (with Reflector)
  3200K:
  38,460 fc / 414,000 Lux at 3.3' / 1 m (with Reflector)*
  4273 fc / 46,000 Lux at 9.8' / 3 m (with Reflector)
  1490 fc / 16,040 Lux at 16.4' / 5 m (with Reflector)
  4300K:
  51,336 fc / 552,600 Lux at 3.3' / 1 m (with Reflector)*
  5704 fc / 61,400 Lux at 9.8' / 3 m (with Reflector)
  1986 fc / 21,380 Lux at 16.4' / 5 m (with Reflector)
  5600K:
  54,513 fc / 586,800 Lux at 3.3' / 1 m (with Reflector)*
  6057 fc / 65,200 Lux at 9.8' / 3 m (with Reflector)
  2108 fc / 22,700 Lux at 16.4' / 5 m (with Reflector)
  6500K:
  46,821 fc / 504,000 Lux at 3.3' / 1 m (with Reflector)*
  5202 fc / 56,000 Lux at 9.8' / 3 m (with Reflector)
  1814 fc / 19,530 Lux at 16.4' / 5 m (with Reflector)

  *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature 2700 to 6500K (in CCT Mode)
Color Modes Daylight, Tungsten
Color Accuracy Standard CRI 98
  TLCI 98
  SSI 74 at 5600K
  SSI 85 at 3200K
  TM-30 Rf 93
  TM-30 Rg 101
Cooling System Fan
Dimming Built-In Dimmer
   • 0.1 to 100%
Beam Angle 62° Unmodified
Built-In Flash No
Front Accessory Mount Proprietary
  Bowens S
Connectivity
Wireless Remote Control Type Bluetooth
  Wireless CRMX
Mobile App Compatible Yes: Android & iOS
  App Name: Sidus Link
  *As of December, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Range 328.1' / 100 m
Max DMX Control Channels 512
Power & I/O
Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)
  Battery (Not Included)
Inputs/Outputs Power Supply/Controller
  1 x XLR 5-Pin DMX Input
  1 x XLR 5-Pin DMX Output
  1 x etherCON/RJ45 Remote/Network Input/Output
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 48 VDC at 33.5 A
Included Adapter / Cable Yes
Power Consumption 2600 W
  3500 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
Environmental
Operating Temperature -4 to 113°F / -20 to 45°C
Storage Temperature -40 to 185°F / -40 to 85°C
General
Display Yes
Dimensions 18 x 13.9 x 11.1" / 45.7 x 35.2 x 28.1 cm (Fixture without Yoke)
  21.7 x 10.7 x 10.3" / 55 x 27.3 x 26.2 cm (Power Supply/Controller)
Weight 39.7 lb / 18 kg (Fixture without Yoke)
  45.2 lb / 20.5 kg (Power Supply/Controller)
