Aputure INFINIMAT 8X8 KIT LED & Clear (EU)

Aputure INFINIMAT 8X8 KIT LED & Clear (EU)

by Aputure

Verfügbarkeit: 7-10 days delivery

SKU

AP60039AR8CL

Modular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available

21.750,00 € 17.400,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

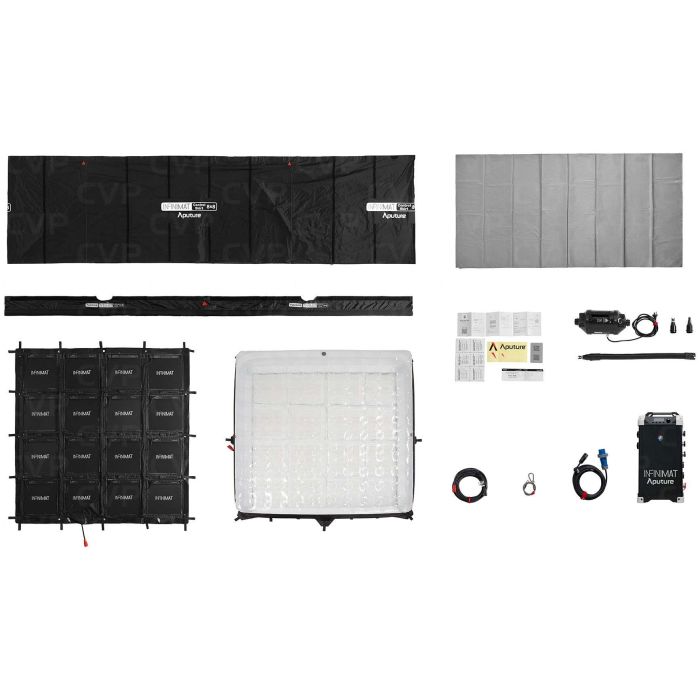

Paket beinhaltet

1x Flight Case for INFINIMAT LED & Clear Softbox 8x8
1x Aputure INFINIMAT Only 8x8
1x Aputure INFINIMAT 15m Head Cable (1600W)
1x Aputure INFINIMAT Inflatable Clear Softbox 8x8
1x INFINIMAT Diffusion Cloth (1 Stop) 8x8
1x INFINIMAT Diffusion Cloth (2 Stop) 8x8
1x Aputure INFINIMAT Control Skirt 8x8
1x Carrying Case for Control Grid 8x8
1x Aputure INFINIMAT Control Grid 8x8
1x Aputure INFINIMAT Patch Kit
1x Aputure INFINIMAT Air Pump Max
1x Aputure INFINIMAT Cushion 8x8
1x Rolling Case for Control Box 1600w Pack
1x Aputure INFINIMAT Control Box 1600W
1x LP-24 AC Power Cable
1x Safety Rope (1.3m)

Details

Modular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths are available in various sizes ranging from 1x2 to 20x20 feet. Traditional rigid frame softbox options are also available for select sizes. The lamp heads are designed with replaceable tiles for easy maintenance and multiple mounting/rigging methods are provided for different sizes.

The INFINIMAT system offers a wide range of features including tuneable CCT, green-magenta adjustment, stepless dimming, and multiple control methods. The inflatable airbag provides structural support and rigidity while the system is IP65 dust and water-resistant. With double the output compared to competitors, INFINIMATs are a versatile and durable lighting solution suitable for various production needs.

Mehr Informationen

COLOUR SPECIFICATIONS
CCT	2,000K – 10,000K
CRI	≥96
TLCI	≥97
CQS	≥95
SSI (Tungsten)	84
SSI (D56)	73
TM-30 RF (Average)	92
TM-30 RG (Average)	100
HARDWARE FEATURES
Pixel Count	16 pixels
Pixel Module	2x2
Softbox Inflation Time (Air Pump Max)	2 min
Full-Inflation Duration	2 days
POWER SPECIFICATIONS
Max Power Consumption	2,000 W
Max Power Output	1,600 W
Operating Voltage DC1 & DC2	12 V–16.8 V, 22 V–33.6 V
Operating Voltage AC	100 V ~ 264 V
CONTROL AND FIRMWARE
Control Methods	On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable	Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX)	≤100 m / ≤328.1 ft
Control Box Type	INFINIMAT Control Box 1600W
ENVIRONMENTAL SPECIFICATIONS
Weather Resistance Rating	IP65
Operating Temperature	-20 ºC ~ 50 ºC
Storage Temperature	-20 ºC ~ 85 ºC
Control Box Noise Levels High Speed Mode	35.9 dBA
Control Box Noise Levels Medium Speed Mode	34.2 dBA
WEIGHT
INFINIMAT 8x8	32.00 kg
	70.55 lbs
INFINIMAT Air Pump Max	3.75 kg
	8.27 lbs
Control Box 1600W	19.38 kg
	42.73 lbs
Inflatable Clear Softbox 8x8	10.34 kg
	22.8 lbs
1-Stop Diffusion Cloth	601 g
	1.32 lbs
2-Stop Diffusion Cloth	739 g
	1.63 lbs
Light Control Skirt 8x8	3.45 kg
	7.61 lbs
Light Control Grid 8x8	3.50 kg
	7.72 lbs
Flight Case (INFINIMAT LED & Clear Softbox 8x8)	40.00 kg
	88.18 lbs
Rolling Case (Control Box 1600W Pack)	7.50 kg
	16.53 lbs
DIMENSIONS
INFINIMAT 8x8	239.0 x 239.0 cm
	7.8 x 7.8 ft
INFINIMAT Air Pump Max	34.8 x 17.8 x 17.8 cm
	13.7 x 7.0 x 7.0 in
Control Box 1600W	27.3 x 26.2 x 55.0 cm
	10.8 x 10.3 x 21.7 in
Inflatable Clear Softbox 8x8	239.0 x 239.0 x 27.0 cm
	7.8 x 7.8 x 0.9 ft
1-Stop or 2-Stop Diffusion Cloth	236.5 x 236.5 cm
	7.8 x 7.8 ft
Light Control Skirt 8x8	235.0 x 234.0 cm
	92.5 x 92.5 in
Light Control Grid 8x8	230.0 x 230.0 cm
	7.6 x 7.6 ft
Flight Case (INFINIMAT LED & Clear Softbox 8x8)	73.0 x 65.0 x 73.0 cm
	28.7 x 25.6 x 28.7 in
Rolling Case (Control Box 1600W Pack)	68.0 x 45.0 x 40.7 cm
	26.8 x 17.7 x 16.0 in
