Atomos Shinobi 7 RX Monitor & Receiver + TX Transmitter Bundle

Atomos Shinobi 7 RX Monitor & Receiver + TX Transmitter Bundle

by Atomos

Verfügbarkeit: 7-10 days delivery

SKU

BUN-ATOMSHBRX1

Special bundle: Atomos Shinobi 7 RX + Atomos TX 4K/HD Wireless Video Monitoring (Transmitter only)

Normalpreis 1.123,75 € * Minimal price in last 30 days Sonderangebot 959,00 € 767,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

-14%

Neu

Skip to the end of the images gallery

Skip to the beginning of the images gallery

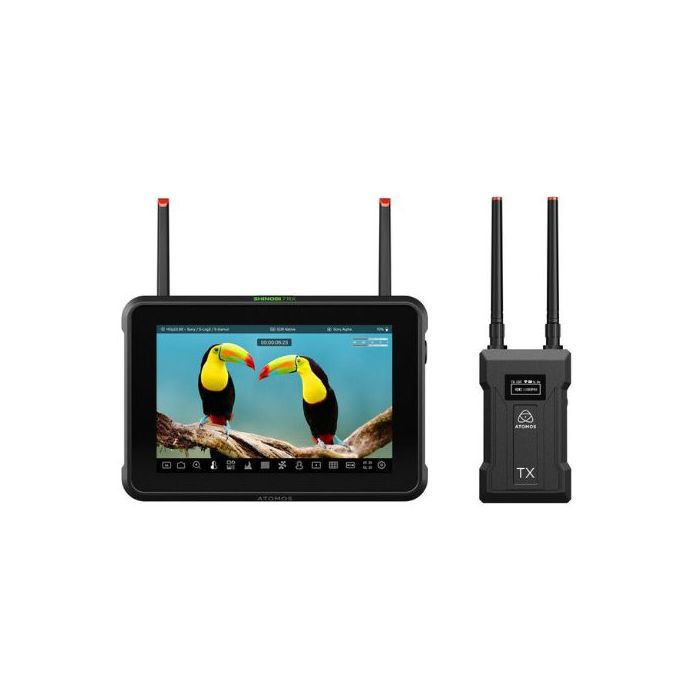

Paket beinhaltet

Atomos Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver
2 x Antenna
Antenna Tip Set (Back, White, Yellow, Green, Red)
2 x Antenna Cap
USB-C 2.0 Cable (3.3')
Atomos TX 4K/HD Wireless Video Transmitter

Details

Atomos Shinobi 7 RX

Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver from Atomos. This 7" high-bright HDR monitor provides the ability to view 4K footage remotely via Wi-Fi while also providing remote focus and camera control in an Atomos TX/RX environment or via wired USB/serial.

7" Daylight Viewable Screen

The Shinobi 7 RX features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

Built-In Wi-Fi 6E

The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984' away.

This allows your crew to move elements on the set freely without losing visual connection.

High-Resolution Connectivity

Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
Output signal via HDMI and 3G-SDI loop outputs
The Shinobi 7 RX features HDMI/SDI cross conversion support

Touch to Focus

While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest.

Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.

Power & Versatile USB-C Connection

The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank.

In addition to providing power, the USB-C port can provide camera control for supported cameras. The USB-C port can also be used with external calibrators without the need for a computer.

Supported Log Formats

The monitor supports numerous Log formats, including:

Sony: SLog / SLog2 / SLog3 / HLG
Canon: C-Log / C-Log2 / C-Log3
ARRI: Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
Panasonic: V-Log / HLG, JVC J-Log
RED: RedLogFilm / Log3G10 / Log3G12
FUJIFILM: F-Log, PQ (HDR10), HLG
Nikon: N-Log

HDR Monitoring

The monitor supports numerous HDR formats, including:

BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
Canon Cinema: DCI P3 / DCI P3plus / Rec. 709
Panasonic: V Gamut
ARRI: ALEXA Wide Gamut
JVC: LS300
RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

Audio Monitoring

Input/output embedded audio via HDMI and SDI, and output audio using the 3.5mm headphone port for convenient audio monitoring. There's also a 3.5mm stereo line audio input to monitor external sound.

Image Tools

The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools.

An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals, and they can be used with the built-in image tools for exposure control.

Camera Control

The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive.

Depending on the supported camera, it can control features such as Record Trigger, White Balance, Shutter Speed, Shutter Angle, Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus, and more.

Calibration

The Shinobi 7 RX monitor can be calibrated with Calibrite Display Pro HL/Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec. 709 monitoring.

Accurate monitoring ensures reliable results.

Anamorphic De-Squeeze

The Shinobi 7 RX supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x.

Atomos TX 4K/HD Wireless Video Monitoring (Transmitter only)

Add 4K30 wireless video transmission to your production using the versatile TX 4K/HD Wireless Video Transmitter from Atomos. The transmitter provides HDMI and SDI inputs and features an HDMI loop output. It can transmit to up to four compatible Atomos receivers up to a 985' line-of-sight distance away. It can also transmit directly to Android and iOS devices for complete mobile monitoring.

The unit transmits using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI input. In addition to the USB-C port, the unit can be powered using a DC power adapter or an L-series type battery using the integrated battery plate.

Quick Features

Compact and portable
Transmits up to 4K30 via HDMI and 1080p60 via SDI
5 GHz Wi-Fi transmission with strong anti-interference
Range of up to 985'
Powered by L-series battery slot, USB-C input, or 9 to 16 VDC input
Transmit to iOS or Android smartphones
Supports up to four receivers per transmitter
Transmitter features two HDMI inputs, one SDI input, and one HDMI loop output

Mehr Informationen

Atomos Shinobi 7 RX

Display
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Aspect Ratio	0,673611111
Touchscreen	Yes
Maximum Brightness	2200 nits / cd/m2
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes: Advanced HDR
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Antenna I/O	2x RP-SMA
Video I/O	1x HDMI 2.0 Input
	1x BNC (3G-SDI) Input
	1x HDMI 2.0 Loop Output
	1x BNC (3G-SDI) Output
Embedded Audio	HDMI: 8-Channel
	SDI: 12-Channel
Audio I/O	1x 1/8" / 3.5 mm Line Input
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (16.8 VDC) Input
Other I/O	1x 2.5 mm (LANC) Output
	1x USB-C 3.0 / 3.1/3.2 Gen 1 Input [Shared with Power, Camera Control]
	2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only]
Wireless
Wireless Range	984.3' / 300 m
Frequency Range	5 GHz
Latency	60 ms
Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI (8/10-Bit 4:2:2)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	SDI (8/10-Bit 4:2:2)
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Video Signal Conversion	HDMI to SDI
	1080p
	SDI to HDMI
	1080p
Audio Format	8-Channel 24-Bit
Power
Input Power	6.2 to 16.8 VDC
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	13 W (Maximum)
Mounting
Tripod/Accessory Mounting	Top
	1x 1/4"-20 Female
	Bottom
	1x 1/4"-20 Female
General
Environmental Resistance	No
Operating Conditions	Up to 104°F / 40°C
Material of Construction	Plastic
Dimensions	7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm
Weight	1.3 lb / 580.00 g
