Atomos Shogun Studio

by Atomos
Verfügbarkeit: 7-10 days delivery
SKU
ATOMSHSTU01

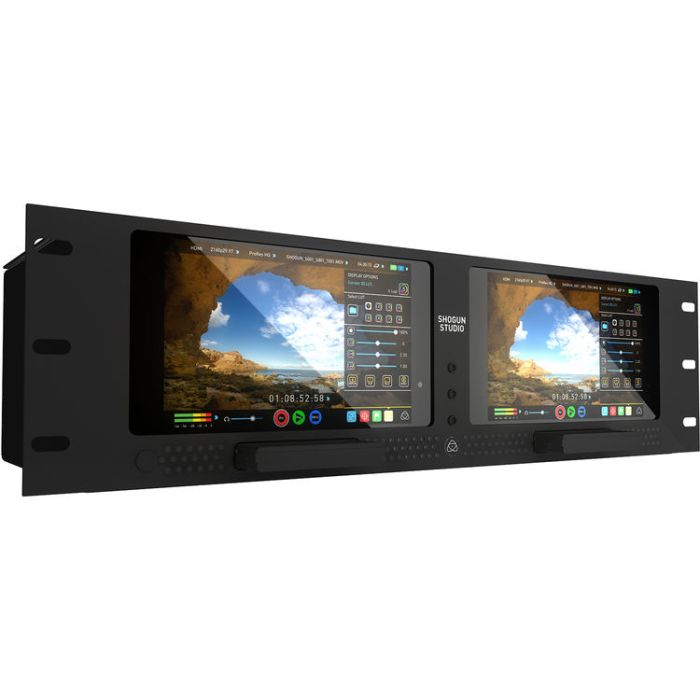

Atomos Shogun Studio 4K Monitor / Recorder combines two color-calibrated 1920 x 1200 resolution displays with 4K video recording and edit-ready codecs in a 3RU chassis with removable rack mount ears.

4.350,00 € 3.480,00 €

Paket beinhaltet

  • Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI
  • IEC C14 AC Cable
  • 5 x Master Caddies
  • Docking Station
  • Detachable Rack Ears

The Atomos Shogun Studio 4K Monitor / Recorder combines two color-calibrated 1920 x 1200 resolution displays with 4K video recording and edit-ready codecs in a 3RU chassis with removable rack mount ears. This configuration is well suited for live event, studio, and on-set DIT work. The Shogun Studio utilizes 4K HDMI and 12G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras. The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid's DNxHD format and UHD 4K video using Avid's DNxHR. Video is recorded to single or raided 2.5" HDD and SDDs for fast and reliable write speeds.

As a monitor, the Shogun features a 7" IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.

The Shogun Studio supports Tally function, custom 3D LUTs, Genlock In for multi-camera syncing. There are also a variety of onscreen tools to help you set up your shots, including a full waveform monitor, RGB parade display, vectorscope, focus peaking, and framing, focus, and exposure assisting tools. With two slots, one for each monitor, for a master recording caddy, you can simultaneously record the signal being fed to each monitor.

Dual Monitors in a Rackmount Chassis
The Shogun Studio installs two Shogun monitors in a 3 RU rackmount chassis, with removable rackmount ears. This configuration is suitable for live event, studio, on-set and Broadcast professionals.
Record UHD 4K & Raw Video
Bypass your camera's internal compression and record UHD 4K (3840 x 2160) video to Apple ProRes over HDMI or 12G-SDI at 23.98, 24, 25, 29.97, or 30 fps. The 4K-capable HDMI input makes the Shogun particularly useful for recording 4K output signals from cameras such as the Sony a7S and Panasonic GH4.
1080p up to 120 fps
Record up to 120 fps in Full HD (1920 x 1080) for high-resolution slow-motion shots.
10-Bit 4:2:2 Recording
Record in 4:2:2 Apple ProRes or Avid DNxHD or DNxHR formats from your camera's uncompressed SDI or HDMI output, bypassing a round of internal compression and data loss. Uncompressed Cinema DNG Raw 4K video is also supported from capable cameras.
7" IPS Touchscreen Monitor with Rec. 709 Color Calibration
Each of the monitors incorporate a 7" IPS screen features a 1920 x 1200 resolution and provides a wide viewing-angle of 178° for easier off-axis monitoring. Each screen is calibrated to SMPTE Rec. 709 with 100% gamut and D65 white point, letting you monitor your colors with confidence. A standard Canon C-Log calibration is also available for use with Canon EOS Cinema cameras, so you won't have to look at flat, washed-out looking images on set. ON-the-fly re-calibration is available with the Atomos Spyder calibration tool, sold separately.
3D LUT Support
You can preview looks on set thanks to the ability to load 3D LUTs onto the Shogun. Simply load Cube files on an SSD and access via the "Display Options" button on the home screen.
HDD or SSD Storage
Record to single or raided 2.5" HDDs or SSDs for faster more reliable write speeds to manage 4K recording. A 2TB raided drive will give your over 5 hours of continuous 4K recording in 4K ProRes 422 HQ.
Monitoring Tools
The Shogun offers a comprehensive set of tools to help you set up, focus, and properly exposure your shots. These tools include a full waveform monitor, RGB parade display, luma overlay, vectorscope with zoom, and a test pattern generator for signal calibration. The monitor also provides focus peaking with multiple levels and colors, false color in two modes, and fully adjustable zebra from 0 to 100%.
Supports Video Playback
You can review what you've shot thanks to in-device video playback. The touchscreen interface allows you to navigate clips and provides softkeys to play, pause, rewind, and stop footage. Additionally, the playback will display a preview frame of the selected clip in the file browser.
4K to HD Down-Conversion
4K signals can be internally down-converted and output at 1080p resolution in the same frame rate as the input. This enables secondary monitoring on an HD field monitor, or recording a lower resolution proxy copy to a second recording device
Start/Stop Trigger
Trigger record start/stop and record time code straight from the camera with Atomos' HDMI time code trigger protocols from Sony, Canon, and other cameras. Over SDI you have full support of all protocols. You also have control over file naming, for automatic backup and version control of your footage.

Note: The SDI trigger is manufacturer-specific - you will need to select your camera make from the menu to enable
Optional CFast Adapter
Record to small, lightweight, and highly reliable CFast media cards using the optional SATA to CFast adaptor.
Create FCPX XML Projects
Create Final Cut Pro X XML projects in the field so you are ready to edit straight away. Favorite/reject flags in the metadata let you quickly finding and uploading the best shots into FCPX or Adobe Premiere Pro.
Genlock Support
Lock to an external Genlock reference signal to synchronize the Shogun's SDI playout when using multi-camera setups.
Time Code
The Shogun lets you synchronize with your camera's time code. Record Run, Free Run, and Time-of-Day time codes are also available for independent external recording.

Display

Screen Size Dual 7.1" capacitive touch panels
Resolution 1920 x 1200
ppi: 323
Screen Type IPS LCD
Viewing Angle 179° with 100% sRGB color accuracy
Color Gamut 100% sRGB calibrated to Rec 709 with infinite 3D LUT conversion including BT-2020, DCI-P3
Bit Depth 8-bit
Brightness 400 cdm²
Contrast Ratio 800:1
Tally Light Front

Monitoring

LUT Support 3D LUT in .CUBE format
Internal Storage: 8 custom Luts
Upload from External: Unlimited
LUT on Output On screen
On output
Available to burn in to recorded clip

Recording

Modes Pre Roll
HD: 8 seconds
4K: 2 seconds

4K to HD Downscale
Loop out and Playback

Trigger & Timcode for Record
LTC input and loop-through, SDI, HDMI, LANC, Timecode, Custom SDI

Metadata Tagging
Yes
Formats 4K-DCI: 24/25/30p
4K-UHD: 24/25/30p, 1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
Codecs ProRes HQ, 422, LT
DNxHR - HQX, HQ, SQ, LB
DNxHD - 220,145,36
HD Uncompressed V210
DNG Files
File Type / Wrapper .MOV
DNG
Pull Down 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
RAW Formats C500
Sony FS
AJA
Arri to ProRes
DNxHR
DNG
Uncompressed
Resolutions from RAW 4K, UHD, HD: 120/60
Simultaneous Recording 4K ProRes & 2K/HD ProRes
4K DNxHR & 2K/HD DNxHD
4K RAW & 2K/HD RAW
2 x 4K/2K/HD ProRes, DNxHR/HD & RAW
RAW to ProRes/DNxHR
Convert or Duplicate Files 4K Avid to 4K ProRes
2K/HD Avid to 2K/HD ProRes
4K ProRes to 2K/ProRes
4K ProRes to 2K/HD Avid
4K Avid to 2K ProRes

Inputs / Outputs

Input Per Monitor
HDMI: 1x HDMI 1.4b up to 12-bit
SDI: 1 x 12G/6G/3G/HD
Timecode: LTC input and loop-through, SDI, HDMI, Internal REC Run, Time of Day, Auto Restart
Genlock
Genlock Input for Playout: Black Burst, Tri-Level Sync
Output Per Monitor
HDMI: 1 x HDMI (loop-through)
SDI: 1 x 12G/6G/3G/HD (loop-through)
Timecode: Loop-through, SDI, HDMI, Internal REC Run, Time of Day, Auto Restart

Drive Specs

Drive Slot 2 channels
Drive Type Qualified 2.5" drives supplied in Master Caddy
Drive Format exFAT
FAT 32
Connections SATA
Hot Swap Support Yes (between channels)

Interface

Control Type AtomOS Capacitive Multi-Touch
Front Panel Buttons Power: 2x (one per monitor)
Screen Lock: 2x (one per monitor)
Jog/Shuttle On screen
RS422 Remote Yes
Ethernet Control Remote: Yes (AMP)
Scheduling Yes: Rec / Play
Gang Control Yes

General

Power Dual Redundant Power Supplies: IEC c14 PSU FCC, CE, CCC UL, PSE (external Adaptor)
Operating Temperature -22 to 104°F / -30 to 40°C
Rack Height 3 RU
Dimensions 19 x 5.2 x 8" / 482 x 132 x 202 mm
Weight 8.2 lb / 3.7 kg
