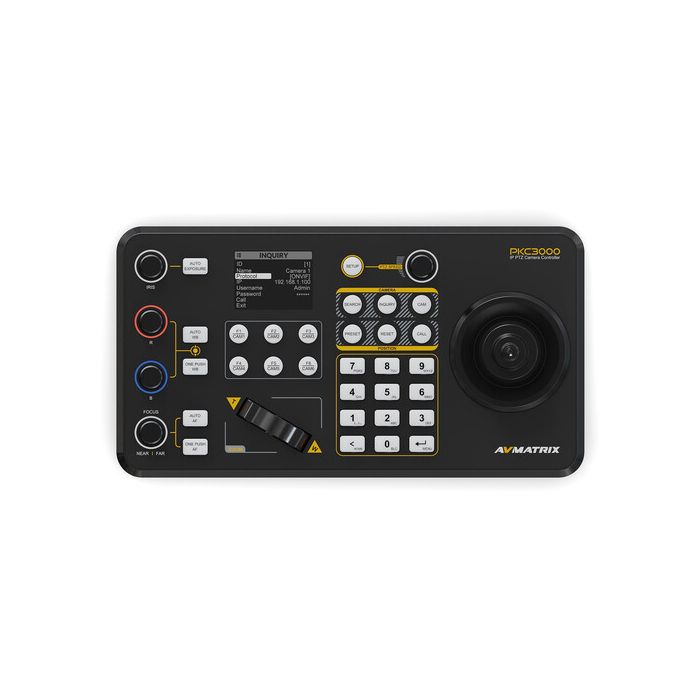

AVMATRIX PKC3000 IP Based PTZ camera JoystickController

The Professional IP & Serial PTZ Camera Joystick Controller from AVMATRIX provides serial and IP-based control for up to 255 PTZ cameras in a cross-protocol environment. The controller offers ONVIF and VISCA-over-IP modes and VISCA, Pelco-P, and Pelco-D serial modes supporting IP/RS-232/422/485 communication.

Its 4D joystick provides pan, tilt, zoom, and focus functions, and it features variable speed control. The illuminated, multicolor keys provide different function information, and there are six assignable keys, six camera quick keys, five knobs, and a zoom rocker to fine-tune your camera movements and settings. It features a clear 2.2" LCD screen to view the configuration, status, and menus, and it also provides tally output to the cameras. The controller is powered by the included power adapter, or it can be powered using an existing PoE network.

IP and Serial Control

Supports VISCA-over-IP, ONVIF, VISCA, Pelco-P, and Pelco-D control protocols

Control up to 255 Cameras

Control and cross-mix control up to 255 AVMATRIX cameras or other VISCA-over-IP PTZ cameras

Automatically searches IP network for available cameras

4D Joystick

4D joystick offers simultaneous pan, tilt, zoom, and focus control

Infinitely variable joystick speed control

Quick Controls

Tactile feel with zoom rocker switch

Quick button/knob control of exposure, shutter speed, iris, white balance, focus, pan/tilt/zoom speed

Six user-assignable keys

Six camera shortcut keys

Multicolor key illumination

Hardware and Power

PoE support and 12 VDC power supply

Metal housing

2.2" LCD screen
