BETSO En2 HEXAPACK
by BetsoThe BETSO EN2 HEXAPACK is a portable rack system for Audio Ltd. En2 receivers. It provides power distribution to all inserted receivers, connected antennas, and even other external devices.
It can handle up to three MX/DX/DX2 receivers, so up to 6 audio channels can be easily connected to one pair of receiver antennas for maximum rig organization.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
1 x BETSO En2 HEXAPACK

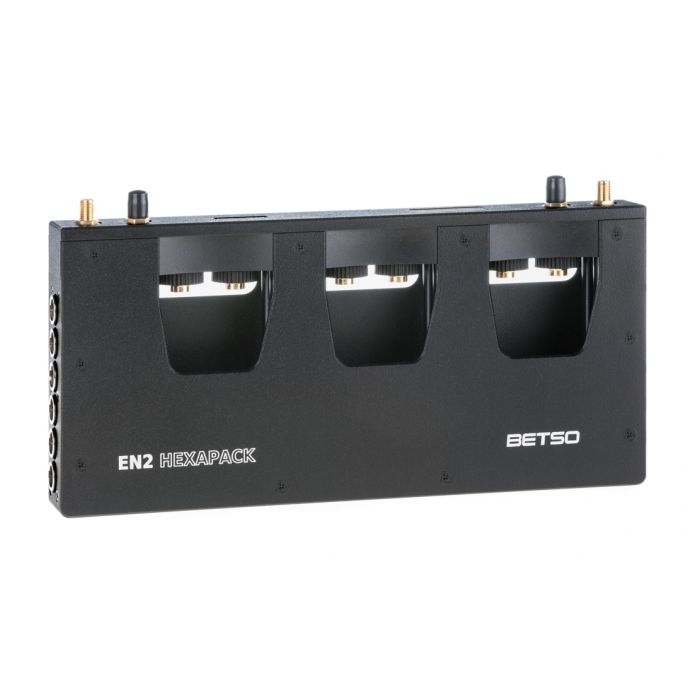

The BETSO EN2 HEXAPACK is a portable rack system for Audio Ltd. En2 receivers. It provides power distribution to all inserted receivers, connected antennas, and even other external devices.
It can handle up to three MX/DX/DX2 receivers, so up to 6 audio channels can be easily connected to one pair of receiver antennas for maximum rig organization. HEXAPACK has very compact dimensions and robust construction, which designate it for field use.
RF signal from each antenna is equally distributed to all connected En2 receivers. For systems with larger numbers of transmitted channels, signal from each antenna can be evenly distributed between one or more HEXAPACKS or other devices through the antenna output connectors.
The HEXAPACK high-efficient input filters help to prevent receiver intermodulation with other sources in band outside of the main working range of wireless systems like walkie-talkies, FM radios, wireless focus systems, WiFi and Bluetooth devices like mobile phones, etc.
If required, external antennas powering can be easily switched on, providing DC power supply to external antennas through SMA connectors. This feature is valuable for easy connection of active receiver antennas like BETSO SHARKIE or BETSO CPAA.
The BETSO HEXAPACK can be powered externally from DC power source of 6-18 V DC, which can be distributed to other (up to two) devices by parallel-connected external power connectors for easy rig interconnection. This external powering is then used for En2 receiver powering and optionally, if required, for active antenna powering.
Thanks to precise CNC milling manufacturing technology, aluminium alloy material, and original hi-quality connectors and components, HEXAPACK is very durable and compact solution for the best rig organization.
Frequency range: 470 MHz to 850 MHz
Input filters attenuation: High below 450 MHz (for example -82dB @ 100 MHz), High above 870 MHz (for example -35dB @ 2.4 GHz)
Dimensions (h x w x d): 125 x 235 x 29 mm
Weight: approx. 564 g
Mechanical construction: CNC milled aluminium alloy
Powering: External powering 6 - 18 V DC
Current consumption: 30mA @ 12V
