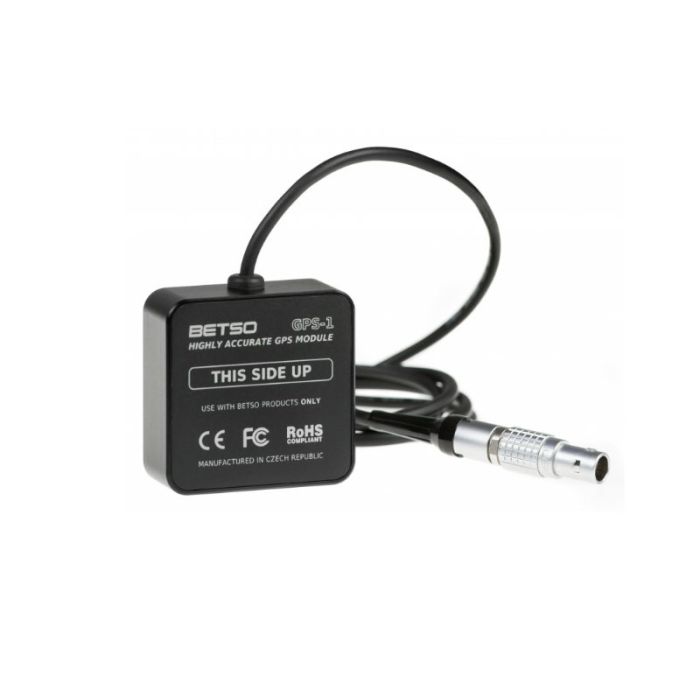

BETSO GPS-1
by BetsoGPS-1 module allows for the calibration of internal TCXO for time code related products for accuracy better than 0.1 ppm (typically 0.02 ppm).
Thanks to the BETSO GPS-1 module, you are able to sync any number of BETSO time code generator devices anywhere in the world to the exact same UTC time code.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
1 x Betso GPS-1 Calibration Module
Well-known crystal aging and reflow process nominal frequency displacements are no problem for BETSO time code products thanks to the possibility of software calibration.
GPS-1 module allows for the calibration of internal TCXO for time code related products for accuracy better than 0.1 ppm (typically 0.02 ppm).
After the calibration procedure, which is done during the manufacturing process for each related time code unit, TCXO performance is calibrated not only to meet its nominal values before reflow, but also to ensure that even better results (up to 0.02 ppm of time code accuracy) are reached.
In the field, TCXO calibration takes place due to TCXO aging parameters, which cause possible TCXO nominal frequency displacement along the age of each product. The typical value of this parameter is ± 1 ppm / year as a maximum value where usually less catastrophic factors apply. So TCXO calibration makes sense after each couple of years of product usage.
Thanks to the BETSO GPS-1 module, you are able to sync any number of BETSO time code generator devices anywhere in the world to the exact same UTC time code.
UTC time code is time code on any selected frame rate which is second aligned to world UTC - Coordinated Universal Time.
Dimensions (h x w x d): 42 x 42 x 17 mm
Weight: approx. 54g
Mechanic construction: CNC milled, anodized aluminium alloy
Powering: External powering from connected BETSO time code device
TCXO calibration accuracy: Better than 0.1 ppm (typically 0.02 ppm)
