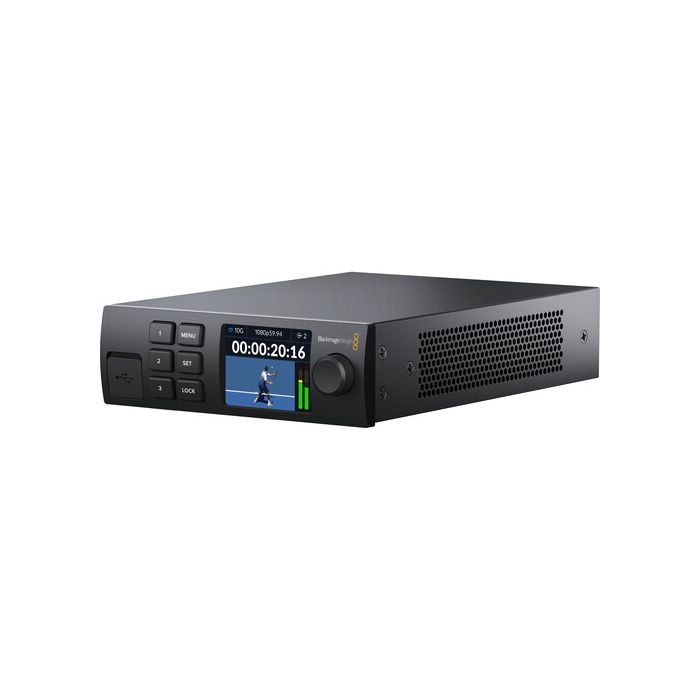

Blackmagic Design 2110 IP Converter 3x3G
by Blackmagic DesignThe new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic 2110 IP Converter 3x3G
- Welcome wallet with QR code for software download
The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!
Connections | |
SDI Inputs | 3 |
SDI Loop Outputs | 3 |
SDI Outputs | 3 |
SDI Audio Inputs | 16 channels embedded audio. |
SMPTE 2110 Input / Output | 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. |
10G Ethernet Port | 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. |
Reference Output | Tri-Sync or Black Burst. |
Computer Interface | USB-C for updates, configuration and control. |
Video Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 |
1080i50, 1080i59.94, 1080i60 | |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 | |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601. |
SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
Color Precision | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
Color Space | REC 601, REC 709 |
IP Video Compliance | |
SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
Receiver: Narrow, Wide Synchronous, Asynchronous | |
SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
ST 2059-1 | |
ST 2059-2 | |
NMOS IS-04 Discovery and Registration | v1.3.2 |
Peer-to-peer via mDNS/DNS-SD | |
NMOS IS-05 Connection Management | v1.1.2 |
NMOS BCP-002-01 | Natural Grouping |
NMOS BCP-004-01 | Receiver capabilities |
Control | |
Built in Control Panel | 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. |
External Control | RJ-45 10Gb/s Ethernet and USB-C. |
Display | Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings. |
Operating Systems | Mac 12.0 Monterey, |
Mac 13.0 Ventura or later. | |
Windows 10, 64-bit. | |
Windows 11. | |
Power Requirements | |
Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. |
Power Inputs | 1 x IEC C14 socket for AC power. |
1 x RJ45 Ethernet connector for power from PoE+ power supplies. | |
Power Usage | 20 W |
Environmental Specifications | |
Operating Temperature | 5° to 40 ° C (32° to 104° F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |
Relative Humidity | 0% to 90% non-condensing |
