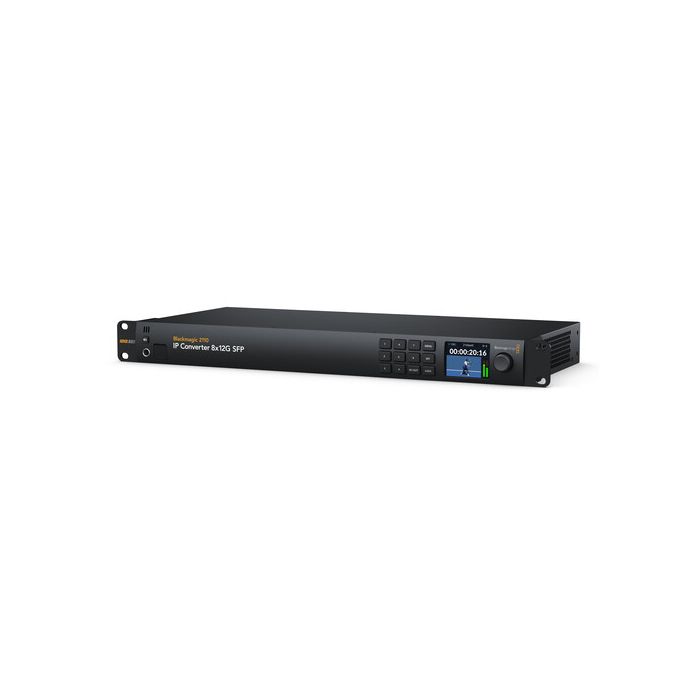

Blackmagic Design 2110 IP Converter 8x12G SFP
by Blackmagic Design
Verfügbarkeit:
7-10 days delivery
SKU
CONVNVIPC8/12GSFP
Blackmagic 2110 IP Converter 8x12G SFP lets you add SMPTE-2110 UP video to 12G-SDI broadcast equipment.
3.111,25 €
2.489,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic 2110 IP Converter 8x12G SFP
Blackmagic 2110 IP Converter 8x12G SFP lets you add SMPTE-2110 UP video to 12G-SDI broadcast equipment. It features 8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using SFP modules for compatibility with optical fiber Ethernet modules for long distances. Its 1RU design includes and control panel with LCD and support HD and Ultra HD standards up to 2160p60.
| Connections | |
| Total SDI Inputs | 9 |
| SDI Video Inputs | 8 |
| SDI Main Program Inputs | 1 |
| Total SDI Outputs | 9 |
| SDI Video Outputs | 8 |
| SDI Main Program Outputs | 1 Loop Out. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| SMPTE ST-2110 IP Video Inputs/Outputs | 8 x 10G Ethernet |
| Analog Audio Outputs | 1 x 6.35 mm headphone socket. |
| SDI Audio Inputs | 16 Ch embedded audio on SDI input. |
| SDI Audio Outputs | 16 Ch embedded audio on SDI loop output. |
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| Analog Audio Outputs | 1 x 6.35 mm headphone socket. |
| Multi Rate Support | Auto detection of SD, HD, Ultra HD and 4K. |
| Reclocking | Yes |
| Ethernet | 8 x 10Gb/s SFP sockets supporting up to 10G BASE-T for SMPTE 2110 IP video in and out. |
| 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates. | |
| Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. |
| SDI Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
| 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | |
| 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
| SDI Compliance | |
| SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output. |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
| Receiver: Narrow, Wide Synchronous, Asynchronous | |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
| ST 2059-1 | |
| ST 2059-2 | |
| NMOS IS-04 Discovery and Registration | v1.3.2 |
| Peer-to-peer via mDNS/DNS‑SD | |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| Audio | Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket. |
| Control | |
| Built in Control Panel | 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings. |
| Operating Systems | Mac 13.0 Ventura, |
| Mac 14.0 Sonoma or later. | |
| Windows 10 and 11. | |
| Power Supply | 2 x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Usage | TBA |
| Physical Installation | 1 rack unit. |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (41° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non‑condensing |
