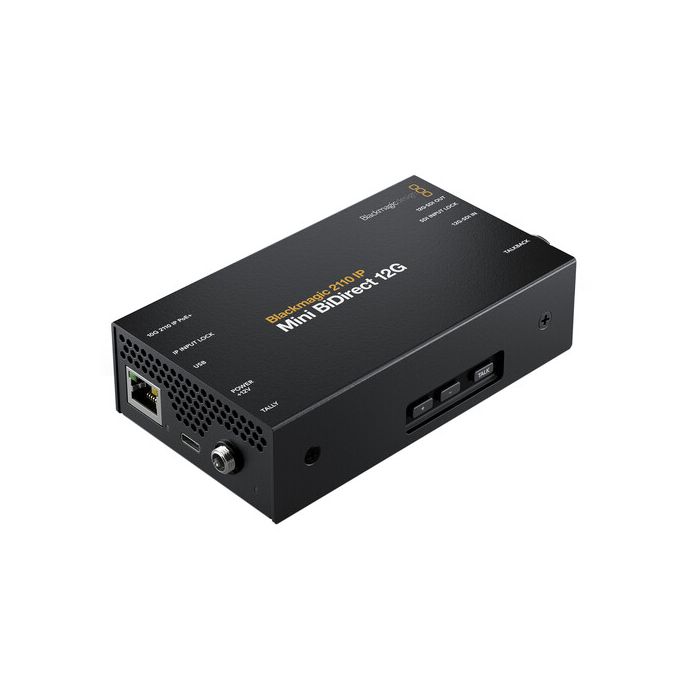

Blackmagic Design 2110 IP Mini BiDirect 12G
by Blackmagic Design
Verfügbarkeit:
7-10 days delivery
SKU
CONVNVIPF/IP/12G
Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems.
442,50 €
354,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic 2110 IP Mini BiDirect 12G
- Plug Pack Power Supply with universal adaptor plugs
Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. It connects and powers from 10G Ethernet or the included DC power supply.
| Connections | |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| SMPTE ST-2110 IP Video Inputs/Outputs | 1 x 10G Ethernet |
| Analog Audio Inputs | 1 x 5 pin XLR Talkback. |
| Analog Audio Outputs | 1 x 5 pin XLR Talkback. |
| SDI Audio Inputs | 16 Ch embedded audio on SDI input. |
| SDI Audio Outputs | 16 Ch embedded audio on SDI loop output. |
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
| Multi Rate Support | Auto detection of SD, HD, 2K, Ultra HD and 4K. |
| Reclocking | Yes |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
| Computer Interface | 2 x USB-C 3.1 Gen 1 (up to 5 Gb/s) for configuration and firmware updates. |
| SDI Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
| 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI |
| 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI | |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| SDI Compliance | |
| SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output. |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
| Receiver: Narrow, Wide Synchronous, Asynchronous | |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
| ST 2059-1 | |
| ST 2059-2 | |
| NMOS IS-04 Discovery and Registration | v1.3.2 |
| Peer-to-peer via mDNS/DNS‑SD | |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| LED Indicators | 1 x IP Input Lock LED indicator light |
| 1 x SDI Input Lock LED indicator light | |
| 1 x Tally LED indicator light | |
| Control | Talkback button controls for Volume Up, Volume Down and Push to Talk. |
| Talkback and Tally | |
| Talkback | 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. |
| Live Tally Indicator | Tally LED indicator light |
| Operating Systems | Mac 13.0 Ventura, |
| Mac 14.0 Sonoma or later. | |
| Windows 10 and 11. | |
| Power Requirements | |
| Power Supply | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. |
| 1 x RJ45 Ethernet connector for power from PoE++ power supplies. | |
| Operational Voltage Range | 12 - 16 V |
| Power Usage | 18W |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (41° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non‑condensing |
