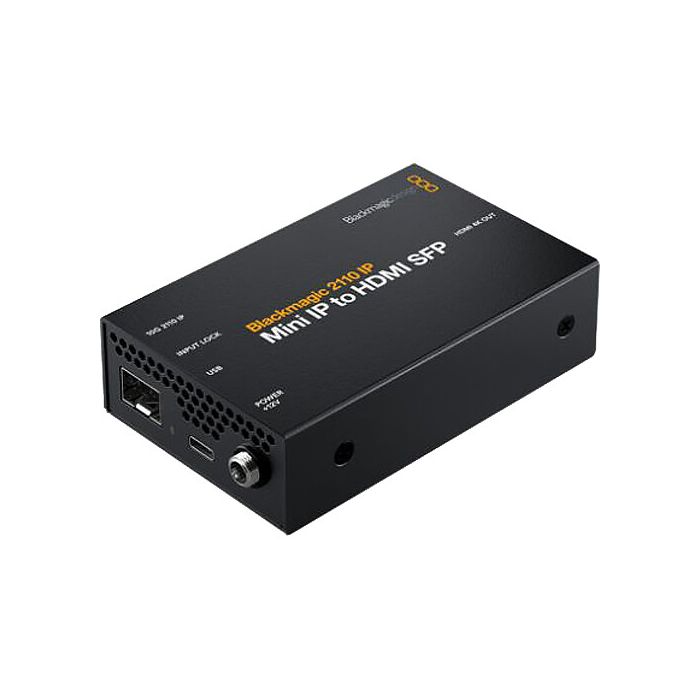

Blackmagic Design 2110 IP Mini IP to HDMI SFP
by Blackmagic Design
Verfügbarkeit:
7-10 days delivery
SKU
CONVNVIPE/IP/HDMISFP
Blackmagic 2110 IP Mini IP to HDMI SFP lets you monitor 2110 IP video and audio on any HDMI monitor or TV over long distances.
368,75 €
295,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic 2110 IP Mini IP to HDMI SFP
- Welcome wallet with QR code for software download
Blackmagic 2110 IP Mini IP to HDMI SFP lets you monitor 2110 IP video and audio on any HDMI monitor or TV over long distances. Its compact design means it can be placed behind displays, while it connects to a standard SFP socket that supports a 10G optical fiber Ethernet module, so you connect it over long distances. Blackmagic 2110 UP Mini IP to HDMI SFP also supports 3G, 6G and 12G optical fiber SDI modules for regular SDI video compatibility. Powers from the included 12V DC power supply.
Connections | |
HDMI Video Outputs | 1 |
HDMI Audio Outputs | 8 Ch embedded audio on SDI loop output. |
SMPTE ST-2110 IP Video Inputs | 1 x 10G Ethernet |
SMPTE ST-2110 IP Video Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
Ethernet | 1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. |
SDI Video Standards | |
HDMI SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HDMI HD Video Standards | 720p50, 720p59.94, 720p60 |
1080i50, 1080i59.94, 1080i60 | |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
HDMI Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
HDMI 4K Video Standards | |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
SMPTE Compliance | |
HDMI Color Precision | 4:2:2 |
HDMI Color Space | YUV |
IP Video Compliance | |
SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
Receiver: Narrow, Wide Synchronous, Asynchronous | |
SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
ST 2059-1 | |
ST 2059-2 | |
NMOS IS-04 Discovery and Registration | v1.3.2 |
Peer-to-peer via mDNS/DNS‑SD | |
NMOS IS-05 Connection Management | v1.1.2 |
NMOS BCP-002-01 | Natural Grouping |
NMOS BCP-004-01 | Receiver capabilities |
Displays | 1 x IP Input Lock LED indicator light |
Operating Systems | Mac 13.0 Ventura, |
Mac 14.0 Sonoma or later. | |
Windows 10 and 11. | |
Power Requirements | |
Power Supply | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. |
Operational Voltage Range | 12 - 16 V |
Power Usage | TBA |
Environmental Specifications | |
Operating Temperature | 5° to 40° C (41° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non‑condensing |
