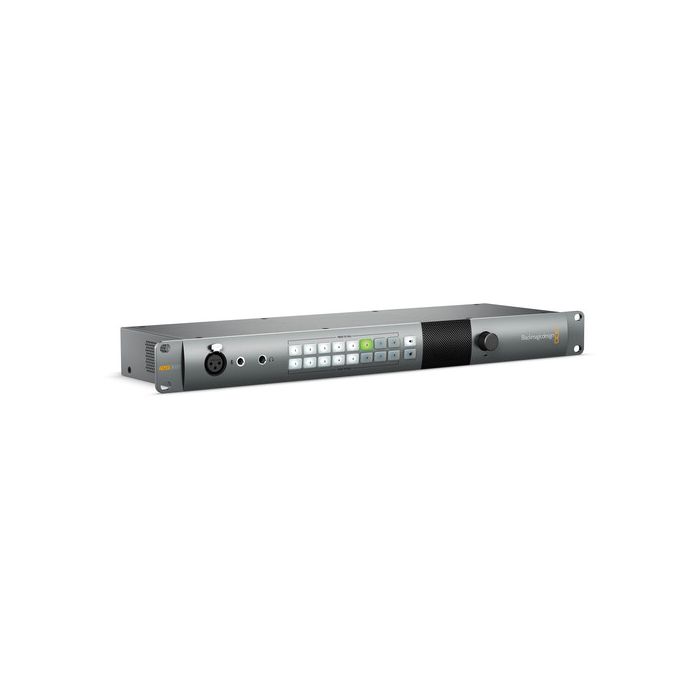

Blackmagic Design ATEM Talkback Converter 4K
by Blackmagic DesignBlackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design ATEM Talkback Converter 4K
- SD Card with Software
With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel.
This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry standard rack-mount equipment and furniture.
Optional Optical Fiber Connectors
- The ATEM Talkback Converter 4K can be upgraded to use standard single mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.
Talkback and Tally
- The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or the area is too loud. When connected to the ATEM Camera Converter without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allow you to control who hears what.
The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.
Precision Signal Processing
- The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features eight independent simultaneous SDI to optical and optical to SDI converters (with the optional fiber terminals), when used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters.
Connections | |
---|---|
I/O | 1 x SDI Program Input 1 x SDI Program Output 1 x XLR for talkback microphone 1 x 0.25" TRS headset connector 1 x 0.206" TRS microphone connector 1 x Stereo RCA monitoring output 8 x 10-bit SD/HD/Ultra HD 4K camera input 8 x 10-bit SD/HD/Ultra HD 4K camera output 8 x 10-bit SD/HD/Ultra HD 4K output With optional connectors 8 x LC fiber SD/HD/Ultra HD I/O with audio |
Computer Interface | 1 x USB mini-B connector (for firmware updates) |
Supported Formats | |
---|---|
SD Format Support | 525/29.97 NTSC 625/25 PAL |
HD Format Support | 1280 x 720p50, 59.94, 60 1920 x 1080i50, 59.94, 60 1920 x 1080PsF23.98, 24, 25, 29.97, 30 1920 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
2K Format Support | 2048 x 1080PsF23.98, 24, 25 2048 x 1080p23.98, 24, 25 |
4K Format Support | 3840 x 2160p23.98, 24, 25, 29.97, 30, 50, 60 4096 x 2160p23.98, 24, 25, 29.97, 30, 50, 60 |
SDI Compliance | SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M |
Video Processing | Sampling: 4:4:4, 4:2:2 Color Precision: 10-bit Color Space: REC 601, REC 709 Rate Support: SDI automatically switches between SD, HD, and UHD 4K |
Audio Sampling | 24-bit, 48 KHz A/D Conversion |
Other Specs | |
---|---|
Compatible Operating Systems | Mac OS X 10.9 and newer Windows 7 and 8 |
Environmental | Operating Temperature: 41 to 104&decF / 5 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0 to 90% non-condensing |
Certifications | EMC, UL, FCC, CE, C-Tick, KCC |
Power Supply | 110 to 240 VAC input with redundant 12 to 31 VDC input |
Power Usage | 60 W |
Dimensions | 19 x 6.3 x 1.75" / 483 x 160 x 44 mm Form Factor: 1 RU |
Weight | 5 lb / 2.3 kg |
