Blackmagic Design DeckLink 8K Pro Mini
by Blackmagic Design
Verfügbarkeit:
7-10 days delivery
SKU
BDLKHCPRO8K12GMINI

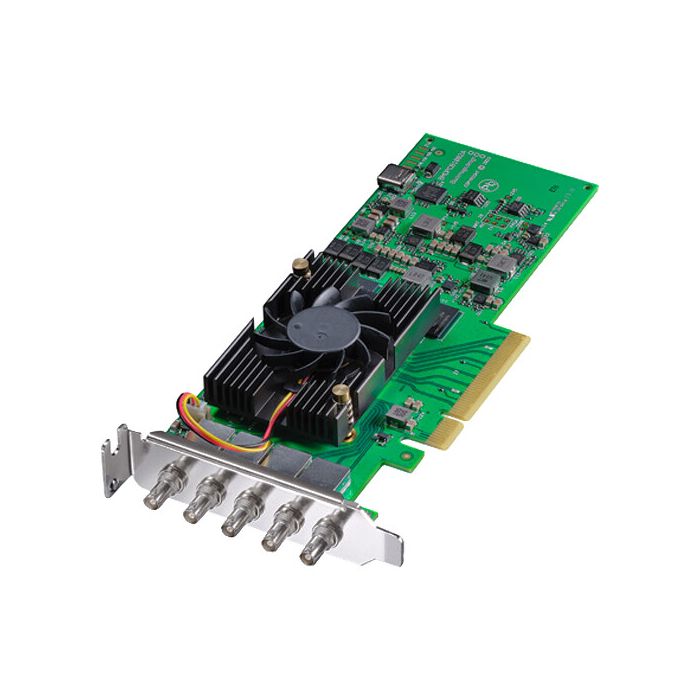

DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card.
810,00 €
648,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design DeckLink 8K Pro Mini Capture Card
DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card. Featuring 4 independent 12G‑SDI Micro BNC connections, DeckLink 8K Pro Mini can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution and high dynamic range workflows!
Inputs / Outputs | |
System Connection | PCIe 3.0 x8 |
Inputs/Outputs | 4 x Micro-BNC (12G-SDI) Female (Switchable) |
Audio Inputs | No |
Other I/O | 1 x BNC Reference Input |
Simultaneous Multi-Input Support | Yes |
Format Support | |
Input Video Format | BNC (8/10/12-Bit 4:4:4/4:2:2 RGB) |
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB) |
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
Embedded Audio | SDI Input: 64-Channel |
SDI Output: 64-Channel | |
Standards | |
Video Standard Compliance | SMPTE 259M/274M/292M/296M/372M/424M/ST-2036-1/ST-2048/ST-2081-10/ST-2081-11/ST-2082-1/ST-2082-10/ST-2108-1 |
HDR Compatibility | Hybrid Log Gamma |
Hardware | |
OS Compatibility | macOS 12 or Later |
macOS 13 | |
Windows 11 or Later (64-Bit Only) | |
Windows 10 or Later (64-Bit Only) | |
Linux | |
Power Consumption | Device: 18 W |
Environmental | |
Operating Temperature | 41 to 122°F / 5 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% () |
Storage Humidity | 0 to 90% (Non-Condensing) |
General | |
Dimensions | 7.1" / 180.3 mm |
Weight | 4.25 oz / 120 g |
