Blackmagic Design DeckLink IP HD
by Blackmagic DesignCapture and play back HD video directly into 2110 IP-based broadcast systems with the DeckLink IP HD.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design DeckLink IP HD
- Low Profile Slot Bracket
- Welcome Wallet with QR Code
- Limited 3-Year Manufacturer Warranty

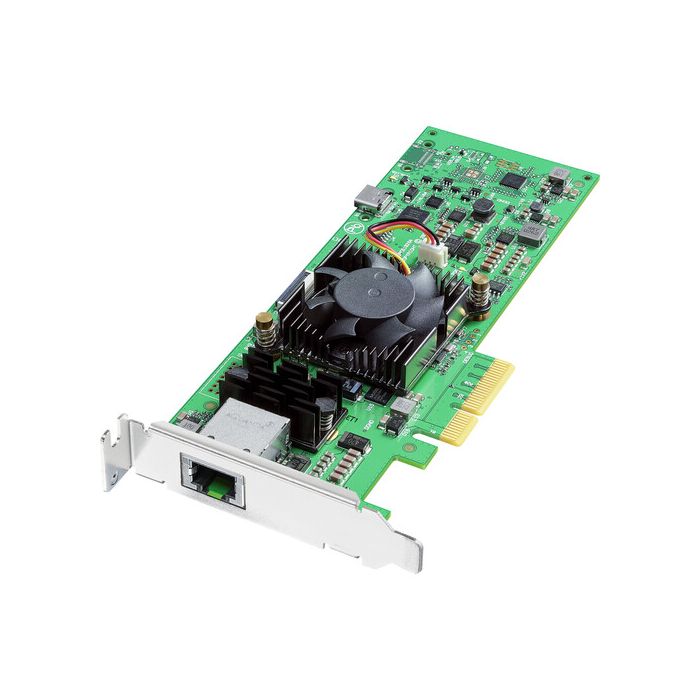

Capture and play back HD video directly into 2110 IP-based broadcast systems with the DeckLink IP HD from Blackmagic Design. This versatile PCIe card can capture and play back 10-bit uncompressed video at resolutions up to 1080p60 with three input and three output channels of video over a single RJ45 10G Ethernet connector with embedded audio. The Decklink IP supports all popular video software including DaVinci Resolve, Avid Media Composer, Final Cut Pro, Adobe Premiere, and more, with full compatibility with the latest Mac, Windows, and Linux operating systems.
This PCIe 4-lane, generation 2 card supports a very vast range of codecs, including AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, and Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, and 10-bit 4:4:4.
Other supported applications include: Fusion, Adobe After Effects, Avid Pro Tools, Steinberg Cubase and Nuendo, Adobe Photoshop, Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio/Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard ,Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go, and Autodesk Flam.
System Connection | PCIe x4 |
Inputs/Outputs | 1 x RJ45 |
Audio Inputs | None |
Input Video Format | RJ45 (8/10/12-Bit 4:4:4 RGB) |
1080p at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
RJ45 (8/10-Bit 4:2:2 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Output Video Format | RJ45 (8/10/12-Bit 4:4:4 RGB) |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
RJ45 (8/10-Bit 4:2:2 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio | LAN (RJ45): 16-Channel |
Video Standard Compliance | SMPTE ST-2082/ST-2100/ST-2110 |
HDR Compatibility | None |
OS Compatibility | macOS 12 to 13 or Later |
Windows 10 (64-Bit Only) | |
Windows 11 | |
Linux | |
Power Consumption | 10 W |
Operating Temperature | 32.0 to 104.0°F / 0.0 to 40.0°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Dimensions | 7.2" / 18.3 cm |
Weight | 3.7 oz / 105 g |
