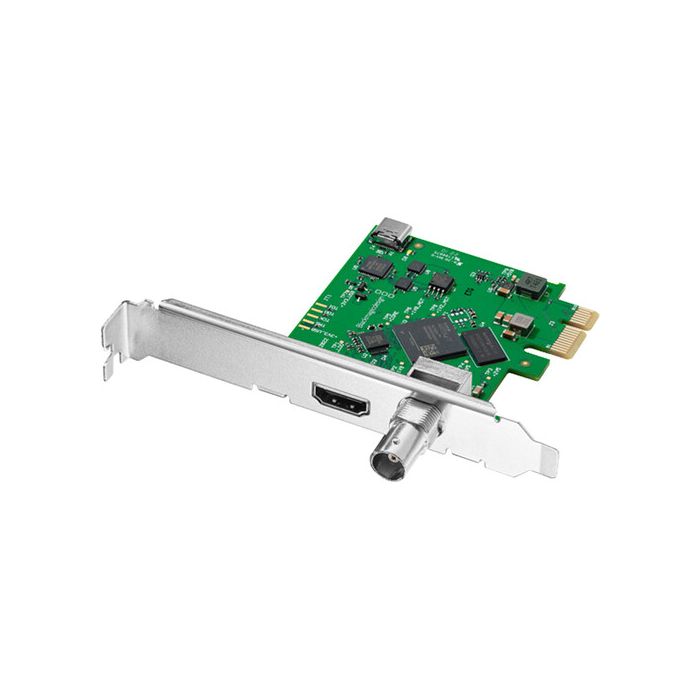

Blackmagic Design DeckLink Mini Recorder HD
by Blackmagic DesignBroadcast-Quality Recording
1-Lane PCIe Slot Card (for 1-16 Lanes)\
SDI and HDMI Inputs
Supports up to 2K DCI over SDI
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design DeckLink Mini Recorder HD
- Low-Profile Slot Bracket
Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
Wirecast, vMix, OBS, Cinergy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLRDV-NTSC DV-PAL, DVCPRO50, DVCPROHD,
DPX HDV, HEVC, XDCAM EX, XDCAM HD,
XDCAMHD422, DNxHR & DNxHD AppleProRes 4444,
Apple ProRes 422 HQ Apple ProRes 422 Apple ProRes 422LT
Apple ProRes 422 Proxy Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2,
Uncompressed 10-bit 4:4:4
System Connection |
(Length Unspecified) |
Video Inputs | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
1 x HDMI (HDMI 2.0) | |
Audio Inputs | None |
Simultaneous Multi-Input Support | Not Specified by Manufacturer |
Input Video Format | SDI (8/10/12-Bit 4:4:4 RGB) |
1080p at 23.98/24/25/29.97/30 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
SDI (8/10-Bit 4:2:2 YUV) | |
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps | |
DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080PsF at 23.98/24/25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (8-Bit 4:4:4 RGB, YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
HDMI (12-Bit 4:4:4 YUV) | |
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio | SDI: 16-Channel |
HDMI: 8-Channel | |
Standards |
|
Video Standard Compliance | SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware |
|
OS Compatibility | macOS 11.1 |
macOS 12.0 or Later | |
Windows 10 | |
Windows 11 | |
Linux | |
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility | |
Power Consumption | Device: 3 W |
Environmental |
|
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Humidity | 0 to 90% (Non-Condensing) |
General |
|
Dimensions | 3.62" / 91.95 mm |
Weight | 1.98 oz / 56 g |
Packaging Info |
|
Package Weight | 0.29 lb |
Box Dimensions (LxWxH) | 5.6 x 5.3 x 1.2" |
