Blackmagic Design Fairlight HDMI Monitor Interface
by Blackmagic DesignFor DaVinci Resolve Systems
Enables Use of an HDMI Monitor
Compact Design is Easily Concealed
Ethernet/SDI Input Switch
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design Fairlight HDMI Monitor Interface
- 12V Universal Power Supply with International Socket Adapters

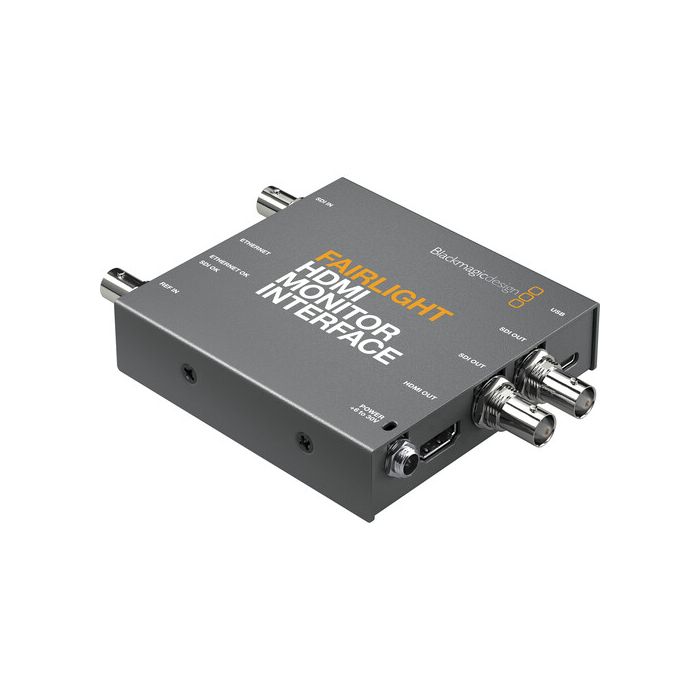

Make your existing HDMI monitor compatible with a Fairlight console by utilizing the Blackmagic Design Fairlight HDMI Monitor Interface, a compact video signal converter that changes the Ethernet data from a Fairlight Console Channel Control to standard HDMI format. It also features an Ethernet/SDI input switch to select the SDI input for lip sync checks.
In addition to the HDMI Type-A output for connection to your HDMI display, this interface incorporates two SDI outputs to allow hookup to a remote SDI monitor. LEDs are present for easy verification of valid Ethernet and SDI input signal. Configuration and updates are handled through USB and power is provided via the included external power supply.
Use HDMI Monitors with Fairlight Consoles
If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control. This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console Ethernet data to HDMI.
Instant Graphic Feedback
You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor.
SDI Support
The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing. The SDI output mirrors the HDMI output so you can connect the interface to a remote SDI monitor.
I/O Ports
Ethernet input on an RJ45 port
3G-SDI input on a BNC jack
Dual 3G-SDI outputs on BNC jacks
HDMI Type-A output
Input Status LEDs
The interface features status LEDs for easy confirmation of valid Ethernet and SDI input signal.
Configuration and Updates via USB Type-C
A USB Type-C port is provided for software configuration (via Fairlight Studio and Console setup utility) and software updates.
Convenient Software Upgrades
The Fairlight HDMI Monitor Interface utilizes an internal software upgrade function via an updater application.
External Power Supply
The Fairlight HDMI Monitor Interface comes with a +12V universal power supply and international socket adapters for most countries.
For DaVinci Resolve Systems
Enables Use of an HDMI Monitor
Compact Design is Easily Concealed
Ethernet/SDI Input Switch
HDMI Type-A Output
Dual SDI Outputs
Ethernet/SDI Status LEDs
USB Type-C Port for Configuration
Includes External Power Supply
Video Input Connectors | 1 x RJ45 Female 1 x BNC (3G-SDI) Female |
Input Video Format | SDI (4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps |
Audio Input Connectors | None |
Video Output Connectors | 2 x BNC (3G-SDI) Female 1 x HDMI Female |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps |
Audio Output Connectors | None |
Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
Other I/O | 1 x BNC Reference Input 1 x USB Type-C Firmware, Control Input |
Expansion Slots | None |
Power Connector | 1 x Barrel (6 to 30 VDC) Input |
Power Consumption | 12 VDC (6 W) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
