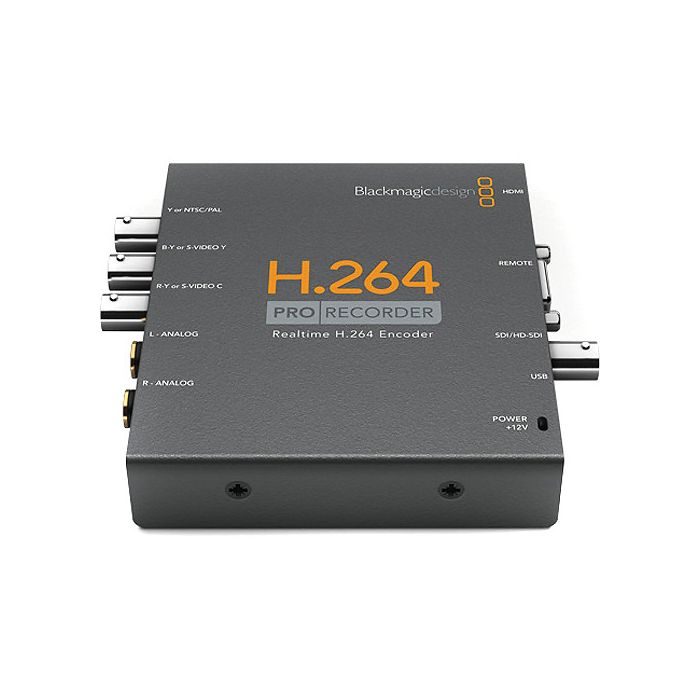

Blackmagic Design H264 Pro Recorderby Blackmagic Design
Blackmagic Design H.264 Pro Recorder is designed for the industry professionals who require professional encoding from SDI, HDMI, analog/component composite, and balanced audio.
- Blackmagic Design H.264 PRO Recorder
- 12v Power Supply
- Media Express, Blackmagic System Preferences and Blackmagic Driver on Mac OS X
- Media Express, Blackmagic Control Panel and Blackmagic Driver on Windows
The Blackmagic Design H.264 Pro Recorder is designed for the industry professionals who require professional encoding from SDI, HDMI, analog/component composite, and balanced audio. The flexible Pro Recorder enables you to capture old or new video formats into the same file formats used on the web, iPad, iPod, iPhone, Apple TV, and more, providing a convenient solution to capture from professional broadcast decks directly to SD and HD H.264 files.
With the Media Express software, you can encode hours of content into popular online formats and batch H.264 files with an attractive user interface as well as create playlists from captured files. The software supports CMX EDL import and RS-422 accurate deck control, and is compatible with Mac and Windows operating systems. It also provides clip information such as frame size, frame-rate, color space, format, and codec.
The H.264 recorder allows you to capture high-quality videos and select between SDI, HDMI, and analog component video inputs. Apart from capturing audio from the SDI, HDMI, or stereo balanced analog audio input jacks, you can also connect the recorder directly to HD or SD video sources as the SDI, HDMI, and capture from HDCAM, Digital Betacam, Betacam SP, DVD players, and more. Analog video inputs switch between component s-video and composite, and support SD and HD.
The Pro Recorder allows you to save your old memories as digital files on your PC, converting old programming video formats into H.264 file format. It supports real-time scaling, and allows you to capture videos at Full HD or SD resolution.
- Real-time H.264 encoder that connects via USB
- Designed for industry professionals who need professional encoding from SDI, HDMI, analog component/ composite and balanced audio
- Capture from professional broadcast decks directly to SD and HD H.264 files
- Capture old or new programming content into the same file format used on the web, iPad, iPod, iPhone, Apple TV, and YouTube
- Media Express software to encode content into popular online formats
- Batch H.264 files with a user interface
- RS-422 deck control is included with software for Mac and Windows
- Clip information - frame size, frame-rate, color space, format, and codec
- Converts old video tapes to H.264 file format
- Ideal for mobile applications using a notebook/computer (power supply required)
|Connections||SDI Video Input:
1 x 12 bit SD/HD switchable
Analog Video Input:
1 x Component YUV on 3 BNCs switchable to S-Video or Composite
Component supports HD and SD
HDMI Video Input:
1 x HDMI type A connector
SDI Audio Input:
2 Channels from embedded SDI audio
Analog Audio Input:
2 Channels of professional balanced analog audio with standard 1/4" jack connections
HDMI Audio Input:
2 Channels from embedded HDMI audio
Sony compatible RS422 deck control port
USB 2.0 high speed (480 Mb/s)
|Standards||HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60
SD Format Support: 625/25 PAL, 525/29.97 NTSC and 480p
SDI Compliance: SMPTE 259M and 292
Multiple Rate Support: SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD-SDI
Video Sampling: 4:2:2
Color Precision: 12 bit
Color Space: 4:2:2 YUV
Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
HDMI Color Precision: 12 bit
Copy Protection: For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
|Firmware||Firmware upgrade via USB|
|Installation||Connect unit to the computer's USB 2.0 port, install Blackmagic H.264 Pro Recorder software and run Media Express
