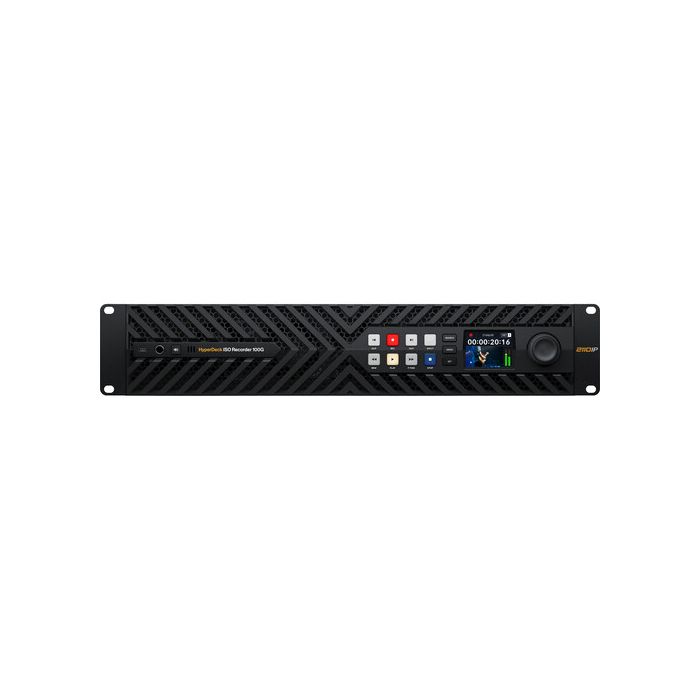

Blackmagic Design HyperDeck ISO Recorder 100G
by Blackmagic DesignThe Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design HyperDeck ISO Recorder 100G
The Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows. Capable of recording up to eight channels of 10-bit 4:2:2 video at resolutions up to DCI 4K60, the unit captures each feed as an individual ProRes file directly to network storage over dual 100GbE connections. SMPTE ST 2022-7 redundancy ensures uninterrupted recording across dual network paths, while support for 16 channels of embedded audio per stream preserves full multichannel audio integrity for post-production.
Designed for live production and broadcast environments, the HyperDeck ISO Recorder enables simultaneous recording and playback of all eight channels, making it suitable for live switching, replay, and post-event editing. A front-panel 2.2" LCD with machined metal search dial and transport controls provides precise clip navigation and monitoring, complemented by a built-in speaker and headphone output for audio confidence. External control is supported via RS-422 serial, NMOS over RJ45, and USB-C configuration, while dual AC inputs, redundant network paths, and advanced Blackmagic OS management ensure reliable operation in demanding scenarios.
- Records eight simultaneous SMPTE 2110 IP video channels up to DCI 4K60
- Two pairs of 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
- Direct recording to shared network storage over 100G Ethernet
- Supports ProRes 422 HQ, 422, 422 LT, and Proxy codecs
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per video stream
- Simultaneous multichannel playback for testing and replay
- 2.2" front-panel LCD for video, audio, and system monitoring
- Machined metal search dial with electronic clutch and transport controls
- Built-in speaker and headphone output for audio monitoring
- RS-422 deck control and Ethernet-based remote control support
- Dual 10G RJ45 ports for NMOS control and configuration
- USB-C interface for setup and firmware updates
- Dual IEC C14 AC inputs for redundant power delivery
| Display | |
| Panel Type | LCD |
| Size | 2.2" |
| Touchscreen | No |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 2x QSFP28 100G Input |
| 2x QSFP28 100G Output | |
| 2x BNC (12G-SDI) Monitor Output | |
| 1x HDMI Monitor Output | |
| Audio I/O | 1x 1/4" Headphone Output |
| Other I/O | 2x RJ45 10G NMOS Control Input |
| 2x RJ45 2110 PTP Clock Input/Output | |
| 1x RJ45 1G Management Input | |
| 1x D-Sub 9 RS-422 Control Input | |
| 1x D-Sub 9 RS-422 Control Output | |
| Video Resolution | Fiber Input/Output (10-Bit 4:2:2 YUV) |
| 4096 x 2160: | |
| 23.98/24/25/29.97/30 fps | |
| 3840 x 2160: | |
| 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080p: | |
| 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i: 50/59.94/60 fps | |
| 1920 x 1080PsF: 25/29.97/30 fps | |
| 1280 x 720p: 50/59.94/60 fps | |
| Power | |
| Power Source | AC Input (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power I/O | 2x IEC C14 Input |
| Physical | |
| Mounting | 4x Unthreaded Rackmount Hole |
| Color | Black |
| Certifications | IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10 |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm (2 RU) |
