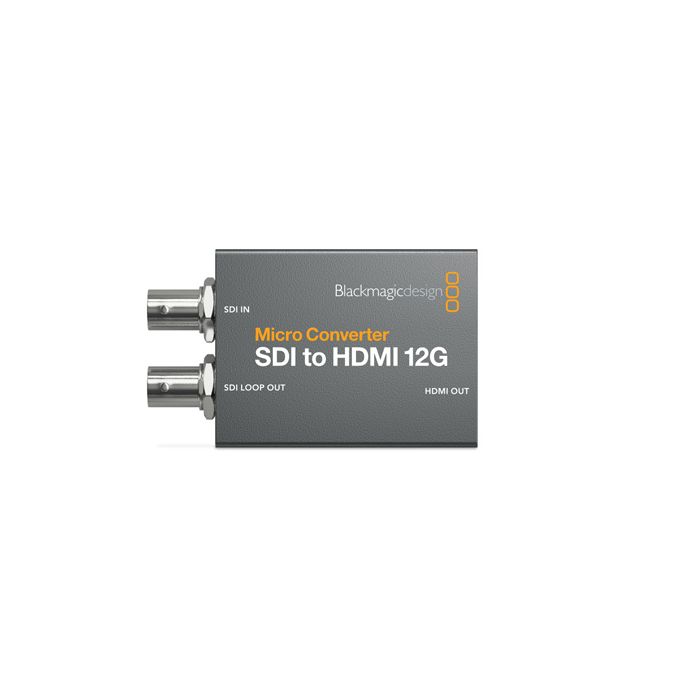

Blackmagic Design Micro Converter - SDI to HDMI 12G
by Blackmagic Design
Verfügbarkeit:
Auf Lager
SKU
CONVCMIC/SH12G/WPSU
The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring.
193,75 €
155,00 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Micro Converter SDI to HDMI 12G (with Power Supply)
- Power Supply
- International Plug Set
It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You get a universal power supply with international AC plug adapters, or you can power it over USB from a television or a mobile phone charger.
SDI Video Inputs | 1 |
SDI Video Outputs | 1 x loop out. |
HDMI 2.0 Video Outputs | 1 x type A. |
SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
Multi Rate Support | Auto detection of SD, HD, 2K, Ultra HD and 4K. |
Updates, Configurations and Power | USB Type‑C. |
Standards | |
SD Video Standards
|
525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
1080PsF25, 1080PsF29.97, 1080PsF30 | |
1080i50, 1080i59.94, 1080i60 | |
2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI |
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI | |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 |
SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
SDI Color Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. |
SDI Color Space | YUV |
SDI Auto Switching | Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI. |
HDMI Video Standards | 525i59.94 NTSC, 625i50 PAL |
720p50, 720p59.94, 720p60 | |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
1080i50, 1080i59.94, 1080i60 | |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
HDMI Color Precision | 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. |
HDMI Color Space | YUV |
Power Requirements | |
Power Consumption
|
4W max. |
Operational Voltage Range | 4.4V to 5.25V DC |
Environmental Specifications | |
Operating Temperature
|
0° to 40° C (32° to 104° F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |
Relative Humidity | 0% to 90% non-condensing |
