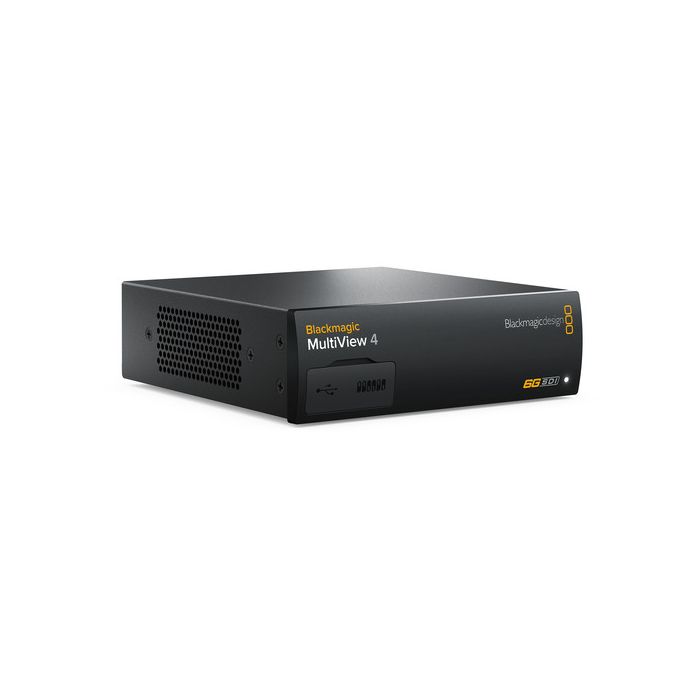

Blackmagic Design MultiView 4

by Blackmagic Design
Verfügbarkeit: 7-10 days delivery
SKU
HDL-MULTIP6G/04

Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs.

657,50 € 526,00 €

Paket beinhaltet

  • Blackmagic Design MultiView 4
  • SD Card with Software and Manual

The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity. The MultiView 4 allows for 2x2 display with each input fully re-synchronized. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

Housed in a 1 RU machined aluminum frame, the MultiView 4 is ready for use in the studio, broadcast truck, or even on location. It can be controlled with the included control software via the Ethernet port or by an optional Teranex front panel (not included). For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240 VAC, or you can power the unit by 48 VDC PoE+.

Note: IEC power cable is not included.

  • Native Ultra HD multi-view output
  • 4x 6G-SDI inputs; accepts SD, HD, Ultra HD, and DCI 4K signals
  • Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
  • 1x 6G-SDI and 1x HDMI multi-view outputs
  • 4x SDI loop outputs
  • 2x2 multi-view configurations
  • 2-channel audio meters for each view
  • 16x9 SD support
  • Tally support with ATEM switchers via optional Teranex Mini Smart Panel
  • 1 RU machined aluminum chassis
  • Software control over Ethernet; supports Videohub router protocol
  • Built-in 90 to 240 VAC power supply
  • IEC power cable required
  • Supports PoE+ 48 VDC

Connections

SDI Video Input 4 x 10-bit SD/HD/6G-SDI
SDI Video Output 4 x 10-bit SD/HD/6G-SDI loop outputs
Multi-View Outputs 1 x 10-bit HD/6G-SDI
1 x HDMI, type A (supports EDID of the monitor)
Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control 1 x RJ45 Ethernet
Configuration Via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Reclocking On all SDI outputs; auto switching between SD, HD, or 6G-SDI video

Standards

Format Support SD Format Support
625/25 PAL
525/29.97 NTSC

HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s
SDI Video Sampling 4:2:2 and 4:4:4
SDI Color Precision 4:2:2 and 4:4:4 10-bit
SDI Color Space Inputs: YUV or RGB
Outputs: YUV
SDI Audio Sampling 48 kHz and 24-bit
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M

Software

Software Control Multi-view control software included free for Windows and Mac OS X
Internal Software Upgrade Via included updater application

General

Power Supply IEC power cable required
90 to 240 VAC input
PoE+: 48 VDC
Power Consumption 16 W
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Rack Space 1 RU
Dimensions (W x H x D) 5.51 x 1.75 x 6.69" (13.99 x 4.45 x 16.99 cm)
Weight 1.28 lb (0.58 kg)
