Blackmagic Design OpenGear Converter - Analog to SDI

Verfügbarkeit: 7-10 days delivery
SKU
CONVOPENGAAS

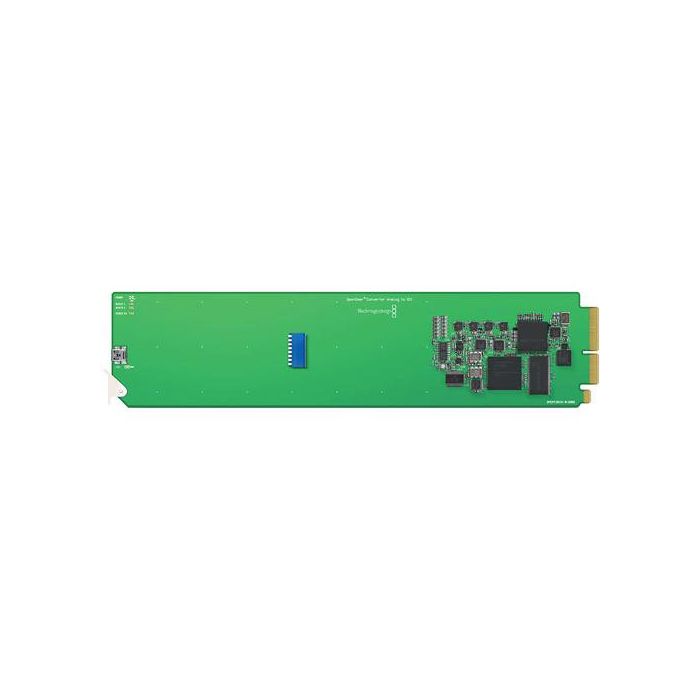

OpenGear Converter Analog to SDI Module from Blackmagic Design is a component designed for use in the modular OpenGear system.

Normalpreis 4.625,00 HRK Sonderangebot 4.162,50 HRK 3.330,00 HRK

Paket beinhaltet

  • Blackmagic Design OpenGear Converter Analog to SDI Module

The OpenGear Converter Analog to SDI Module from Blackmagic Design is a component designed for use in the modular OpenGear system. OpenGear is essentially an open-standards chassis that can be mounted in a rack for conversion and processing work. The chassis accepts different modules to enhance its functionality, allowing the solution to be expanded or scaled at will.

This module is designed to convert analog HD/SD component, NTSC, PAL or S-video input to SDI output with balanced AES/EBU and analog audio embedding. It is well suited for use with Betacam SP, VHS, set-top boxes, gaming consoles, and HDV cameras, among other possible equipment and applications.

Analog to SDI Conversion

Use this module to convert analog HD/SD component, NTSC, PAL or S-video input to SDI output with balanced AES/EBU and analog audio embedding.

OpenGear System

This module is intended for use in the OpenGear modular chassis.
Input Analog Video:
1 x channel component SD/HD
Analog Audio
2 x channels of professional balanced analog audio with standard 1/4" jack
AES/EBU Digital Audio
2 x channels of professional balanced digital with standard 1/4" jack
Output SDI: 1 x channel switchable between SD, HD and 3Gbs SDI
Standards SDI Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SDI Compliance:
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video Sampling:
4:2:2
SDI Video Rates:
SDI video connections are switchable between standard definition and high definition.
SDI Color Precision:
4:2:2
SDI Color Space:
YUV
SDI Audio Sampling:
Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching:
Automatically selects between SD SDI, HD-SDI and 3 Gbs SDI
Analog Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Analog Color Precision:
4:2:2
Analog Color Space:
YUV
HDMI Format Support:
625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
HDMI Color Precision:
4:2:2 and 4:4:4
HDMI Color Space:
YUV and RGB
Copy Protection:
For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP
