Blackmagic Design StudioBridge 100G

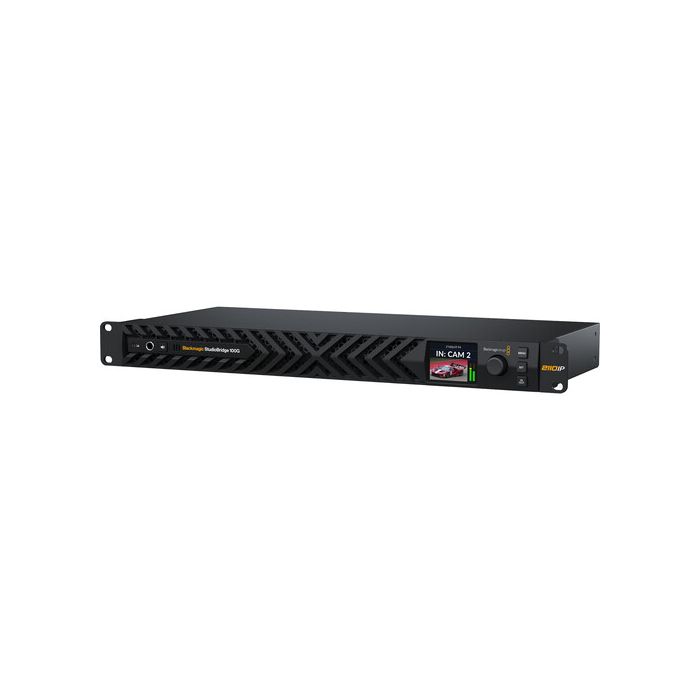

by Blackmagic DesignThe Blackmagic Design StudioBridge 100G is a 1 RU IP video bridge designed to integrate one to two high-bandwidth camera streams into redundant 100G broadcast infrastructures.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design StudioBridge 100G
The Blackmagic Design StudioBridge 100G is a 1 RU IP video bridge designed to integrate one to two high-bandwidth camera streams into redundant 100G broadcast infrastructures. Supporting up to two channels of SMPTE 2110 video at resolutions up to 4K60, the unit converts one 100GbE IP video stream or two IP video streams of less than 100Gb/s total bandwidth into dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.
Engineered for deployment in live production and broadcast environments, the StudioBridge 100G sports two 10G RJ45 ports and two 10G SFP optical fiber interfaces for additional accessory connection. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, while built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Convert one to two camera feeds under 100 Gb/s total bandwidth into dual 100GbE outputs
- Two 100GbE QSFP28 inputs and two 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy
- Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards
- Auto-detection of HD and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, timecode, and system monitoring
- Integrated control knob and buttons for source selection and configuration
- Built-in speaker and headphone output for audio monitoring
- Two RJ45 and two SFP optical fiber accessory connectors
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
| Display | |
| Panel Type | LCD |
| Size | 2.2" |
| Touchscreen | No |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 2x QSFP28 100G Input |
| 2x QSFP28 100G Output | |
| Audio I/O | 1x 1/4" Headphone Output |
| Other I/O | 1 x RJ45 1G Control Input |
| 2 x RJ45 10G Accessory Port | |
| 2 x SFP Optical Fiber Connector | |
| Power | |
| Power Source | AC Input (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Physical | |
| Mounting | 4x Unthreaded Rackmount Hole |
| Color | Black |
| Certifications | IEEE1588-2008, SMPTE2110-20, SMPTE2110-21, SMPTE2110-30, SMPTE2110-40, SMPTE2022-7 |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm |
