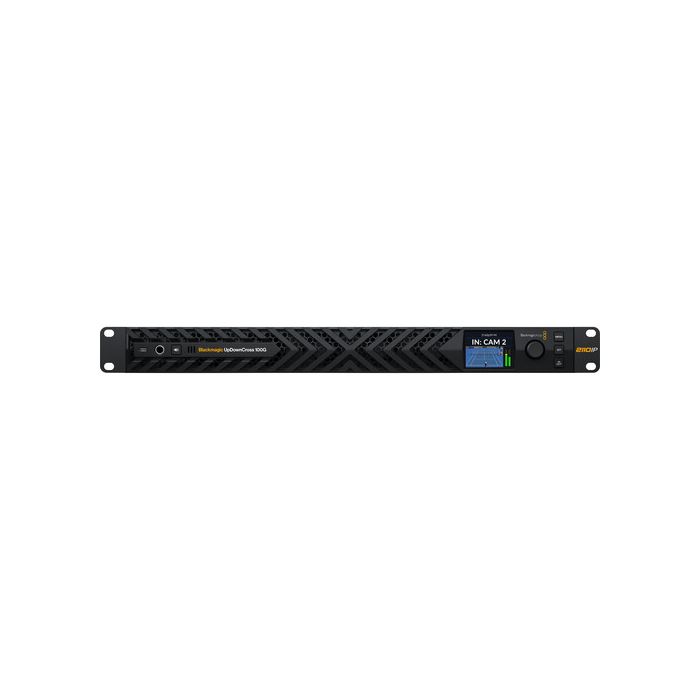

Blackmagic Design UpDownCross 100G
by Blackmagic DesignThe Blackmagic Design UpDownCross 100G is a 1 RU IP video standard converter designed for 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at SD, HD, and Ultra HD resolutions, the unit simultaneously converts IP video streams into any other video standard via dual 100GbE QSFP28 interfaces with SMPTE 2022-7 redundancy for uninterrupted signal delivery.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- Blackmagic Design UpDownCross 100G
The Blackmagic Design UpDownCross 100G is a 1 RU IP video standard converter designed for 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at SD, HD, and Ultra HD resolutions, the unit simultaneously converts IP video streams into any other video standard via dual 100GbE QSFP28 interfaces with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each IP stream also supports up to 16 channels of embedded audio.
Engineered for deployment in live production and broadcast environments, the UpDownCross 100G sports a front-panel 2.2" LCD with an integrated control knob and buttons, allowing real-time monitoring of video, audio, and system status. A built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Converts eight channels of IP video from SD, HD, or Ultra HD to any other standard
- Two 100GbE QSFP28 interfaces with full SMPTE 2022-7 redundancy support
- Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 IP video
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, timecode, and system monitoring
- Integrated control knob and buttons for source selection and configuration
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
| Inputs/Outputs | |
| Video I/O | Input/Output |
| 2x QSFP28 100G Ethernet | |
| Expansion Slots | No |
| Format Support | |
| Video Resolution | Fiber Input/Output (10-Bit 4:2:2 YUV) |
| 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 1920 x 1080PsF at 25/29.97/30 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| Audio Format | Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit |
| Embedded Audio | IP: 16-Channel |
| Reclocking | No |
| Standards | |
| Video Standard Compliance | SMPTE: ST 2110-20/ST 2110-21/ST-2022-7/ST-2110 |
| HDR Support | Yes |
| HDMI CEC | No |
| Broadcast System Compatibility | NTSC, PAL |
| Hardware | |
| Wireless | No |
| OS Compatibility | macOS 26.0 or Later |
| Windows 11 or Later | |
| Display | |
| Display | 2.2" LCD |
| Power | |
| Power I/O | 2x IEC C14 Input |
| PoE Support | No |
| Power Consumption | 100 to 240 VAC |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Rack Form Factor | 1 RU |
| Certifications | IEEE 1588-2008, SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 |
| Dimensions | 19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm |
