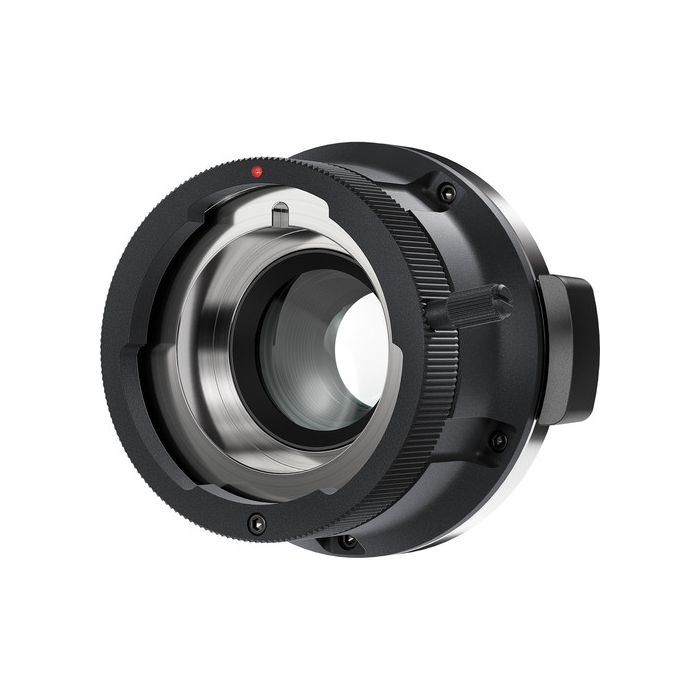

Blackmagic Design URSA Mini Pro B4 Mount

by Blackmagic Design
Verfügbarkeit: 7-10 days delivery
SKU
CINEURSAMUPROTB4HD

URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro.

466,25 € 373,00 €

Paket beinhaltet

  • Blackmagic Design URSA Mini Pro B4 Mount
  • Turret Dust Cap
  • Lens Rear Protective Cover
  • Molded Mount Case
  • Set Spare Mounting Screws
  • URSA Mini Pro Shim Kit

The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.

  • The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.
  • The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera.
Mount B4
Magnification 1.1x
Optics Resolution 1920 x 1080
Image Circle 10.56 x 5.94 mm
Dimensions 3.27 x 2.2 x 2.92" / 83.1 x 56 x 74.2 mm
Weight 12 oz / 340 g
