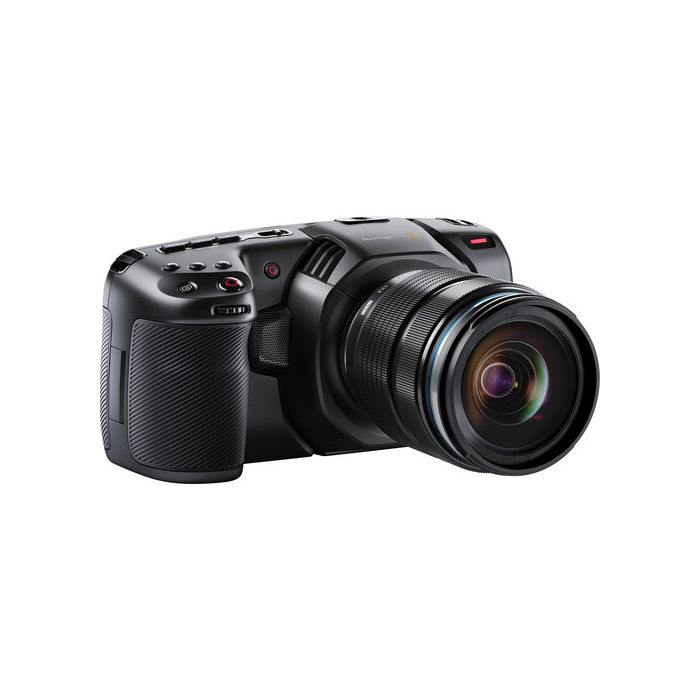

Blackmagic Design Pocket Cinema Camera 4K

by Blackmagic Design
Verfügbarkeit: Auf Lager
SKU
CINECAMPOCHDMFT4K

4/3" Sized HDR Sensor
Record DCI 4K 4096 x 2160 up to 60 fps
Dual Native ISO to 25,600
5" Touchscreen Display
Active Micro Four Thirds Lens Mount
Record up to 120 fps Windowed HD
CFast 2.0 & SD/UHS-II Card Slots
External Recording via USB Type-C
13-Stop Dynamic Range, 3D LUT Support
Includes DaVinci Resolve Studio License

1.498,75 € 1.199,00 €

Paket beinhaltet

  • Blackmagic Pocket Cinema Camera 4K
  • Lens turret dust cap
  • 30W power supply with locking connector and international adapters.
  • SD card with software and manual
  • Welcome card
  • DaVinci Resolve Studio with activation key.
  • 12 Month Limited Manufacturer's Warranty.

The Blackmagic Design Pocket Cinema Camera 4K features a 4/3" sensor for capturing up to 4096 x 2160 DCI 4K images at rates up to 60 fps in a variety of codecs including CinemaDNG Raw/Raw 3:1/Raw 4:1, and various ProRes 422 options. Slow-motion rates up to 120 fps are available in cropped Full HD. Its Micro Four Thirds lens mount accommodates the original, lightweight Pocket Cinema Camera lenses, and can be used with PL, C, EF, and other lenses with the use of separately available adapters. A dual-native ISO up to 25,600 is featured for low-light capture, and 13 stops of dynamic range provide rich HDR images.

Record using the internal CFast 2.0 and SD/UHS-II card slots, or employ the USB-C output for capturing longer clips to an external drive. The Pocket Cinema Camera 4K's 5" touchscreen LCD display reduces the need for an external, onboard monitor, while a full-sized HDMI port enables you to output a signal to a larger display. The menu and interface are the same as the ones found on the URSA Mini camera, and 3D LUTs can be applied for monitoring or for baking in your look when you're ready to commit.

Audio features include a mini-XLR input with phantom power for pro-style mics, a 3.5mm jack, and an internal stereo mic. Additional features include the same Blackmagic OS as the URSA Mini, and Bluetooth remote control. A license key for DaVinci Resolve Studio is included for versatile post-production control. The Pocket Cinema Camera 4K's carbon fiber polycarbonate build provides lightweight strength and durability, and power options include running off a Canon LP-E6 type battery or the included power supply.

4/3" Image Sensor / Dual Native ISO
The Pocket Cinema Camera 4K uses a 4/3" sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to DCI 4K.
Active Micro Four Thirds Lens Mount
Use lightweight, electronically-controlled MFT lenses, or use separately available adapters to expand your lens choices to include PL, C, or EF-mount lenses.
CinemaDNG Raw and ProRes Options
Choose from CinemaDNG Raw and ProRes 422 files options depending on your project's needs.
5" Touchscreen Display
A large 5" touchscreen display reduces the need for an external on-board monitor, while a full-sized HDMI port enables you to output a signal to a larger display on your video village.
CFast 2.0, SD/UHS-II, and USB Type-C Capture
Internally record to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB-C output to an external drive.
Flexible Power Options
The Pocket Cinema Camera 4K can be powered using a rechargeable Canon LP-E6 type battery or the included power supply.
DaVinci Resolve Studio
An activation key for DaVinci Resolve Studio is included with the camera.

Camera Features

Effective Sensor Size

18.96mm x 10mm (Four Thirds)

Lens Mount

Active MFT mount.

Lens Control

Iris, focus and zoom on supported lenses.

Dynamic Range

13 Stops.

Shooting Resolutions

4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD).

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

5” 1920 x 1080.

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Play Button, 1 x Focus Button and 1 x IRIS Button.

Connections

Total Video Inputs

None.

Total Video Outputs

1 x HDMI Type A

Analog Audio Inputs

1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu).
1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Outputs

1 x 3.5mm headphone jack.

Computer Interface

USB Type-C for external drive recording, software updates and media download.

Blackmagic Pocket Cinema Camera 4K

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None.

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

4K DCI Standards

4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60.

Media

Media

1 x CFast and 1 x SD USH-II card slot for CinemaDNG Raw and ProRes Recording. Actual supported codec and frame rates are media dependent.

Media Format

Can format cards to ExFAT for Windows and Mac or HFS+ for Mac (file systems).

Supported Codecs

Codecs

CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.

Storage Features

Storage Type

1 x CFast 2.0.

1 x SD UHS-II card.

Storage Rates

4096 x 2160
CinemaDNG RAW - 270 MB/s
CinemaDNG RAW 3:1 - 128 MB/s
CinemaDNG RAW 4:1 - 96 MB/s
3840 x 2160
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s

1920 x 1080
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Storage rates based on 30 frames per second.

Recording Formats

Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4096 x 2160, 3840 x 2160 and 1920 x 1080. Apple ProRes 4096 x 2160, 3840 x 2160 and 1920 x 1080 with either film, video and extended video dynamic range.

Software

Software Included

Pocket Cinema Camera 4K Operating System.

DaVinci Resolve Studio on SD Card.

Blackmagic Camera Setup.

Operating Systems

macOS 10.12 Sierra,

macOS 10.13 High Sierra or later.

Windows 8.1 or Windows 10.



Power Requirements

Power Supply

1 x External 12V power supply.

External Power Input

1 x 2-pin locking connector.

Battery Type

Canon LP-E6.

Battery Life

Approximately 60 minutes.

Power

12V-20V

Acessories

Optional Accessories

Physical Specifications

Blackmagic Pocket Cinema Camera 4K

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing
