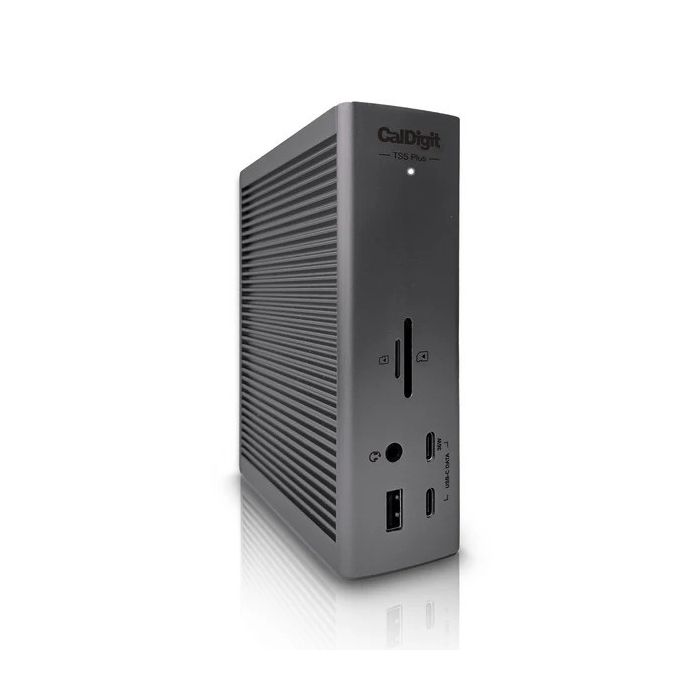

CalDigit TS5 Plus Thunderbolt Station 5 Plus
by CaldigitOver a decade after the original Thunderbolt Station redefined what was possible via a single Thunderbolt connection, the TS5 Plus has built on previous generations to offer the ultimate docking station experience. Thunderbolt users no longer need to compromise when it comes to connectivity.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x CalDigit TS5 Plus
- 1 x Thunderbolt 5 Braided Cable (1.0m)
- 2 x Rubber Feet Strips
- 1 x Power Cord
- 1 x Power Supply (330W)
Over a decade after the original Thunderbolt Station redefined what was possible via a single Thunderbolt connection, the TS5 Plus has built on previous generations to offer the ultimate docking station experience. Thunderbolt users no longer need to compromise when it comes to connectivity.
The TS5 Plus features 140W power delivery for even the most demanding of laptops. This makes it ideal for host devices like the 16” MacBook Pro with M3/M4 Pro or Max chips that require 140W.
The TS5 Plus features 3x Thunderbolt 5 80Gb/s ports with support for Bandwidth Boost. This will provide up to 120Gb/s bandwidth for even the most demanding displays.
The built-in 10 Gigabit Ethernet port is a powerful addition to an already powerful device. 10GbE is 10X faster than traditional 1GbE found in the vast majority of docks on the market. Users with 10GbE networks will be able to expand their workflows on their Thunderbolt equipped Macs and PCs. The 10GbE port is of course backwards compatible with 1GbE, 2.5GbE, and 5GbE.
When we say the TS5 Plus is the most powerful dock we are not kidding. The TS5 Plus features not one but 3x 36W Type-C ports. One of the front USB-C ports provides up to 36W, and the 2x downstream Thunderbolt 5 ports provide up to 36W for charging power hungry devices.
There are a total of 10x USB ports on the TS5 Plus. This includes 5x USB-A 10Gb/s ports, and 5x USB-C 10Gb/s ports.
For the first time on a Thunderbolt dock, the TS5 Plus features Dual USB Controllers which allow the dock to offer vastly significant USB performance.
When connecting displays to the TS5 Plus, the dock supports up to dual 4K 240Hz displays on Macs that support these resolutions. On supported Windows Thunderbolt 5 PCs, the TS5 Plus supports up to triple 4K 144Hz displays.
The TS5 Plus is compatible with Thunderbolt 5, Thunderbolt 4, USB4 and USB4 v2 Macs and PCs. It is also compatible with Thunderbolt 3 Macs. For maximum functionality the TS5 Plus should be used with a Thunderbolt 5 or USB4 v2 host computer.
Interface
- 1 x Thunderbolt 5 Host (Up to 120Gb/s)
- 2 x Thunderbolt 5 (80Gb/s)
- 5 x USB-C (10Gb/s)
- 5 x USB-A (10Gb/s)
- 1 x DisplayPort 2.1
- 1 x SD 4.0 (UHS-II)
- 1 x microSD 4.0 (UHS-II)
- 1 x 10 Gigabit Ethernet
- 1 x Front Combo Audio In/Out (3.5mm)
- 1 x Rear Audio Out (3.5mm)
- 1 x Rear Audio In (3.5mm)
- 1 x DC In (24V 13.75A)
Minimum System Requirements
- macOS 15 or above
- Windows 11 or above
- iPadOS
- Thunderbolt 5 Computer
- Thunderbolt 4 Computer
- Thunderbolt 3 Mac
- USB4 or USB4 v2 Computer
- Thunderbolt/USB4 iPad
Power Delivery
- Thunderbolt 5/USB4 Host Port: Up to 140W
- Each Downstream Thunderbolt 5/USB4 Port: 36W
- One USB-C Port on the Front: 36W
- Remaining USB-C Ports: 7.5W
- USB-A Ports: 7.5W
Size & Weight
- Height: 6.10” (155.0mm)
- Width: 1.85” (47.0mm)
- Length: 5.03” (127.9mm)
- Weight: 1.98 lbs (0.90kg)
