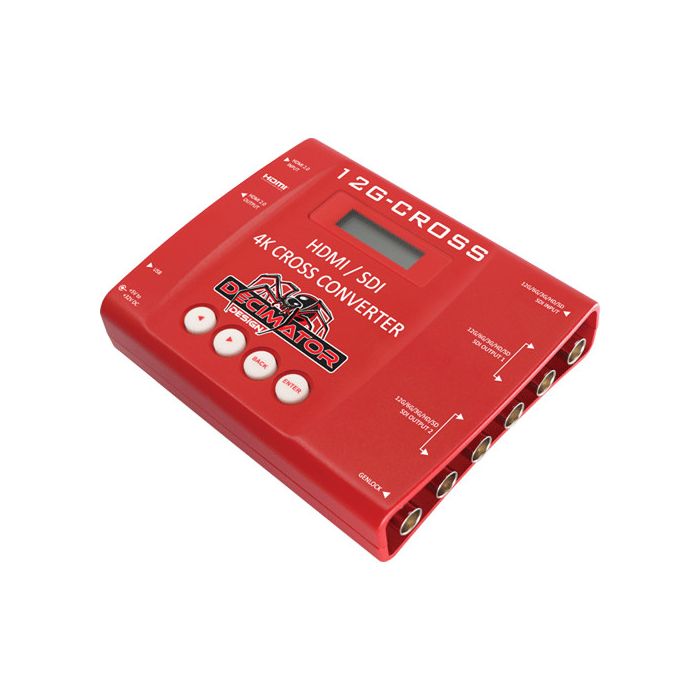

Decimator 12G-CROSS
by Decimator Design- Up to 4K HDMI & 12G-SDI Input
- Converts HDMI to SDI & SDI to HDMI
- Upscales/Downscales, Converts Frame Rate
- 1 x HDMI Input, 1 x HDMI Output
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion
- Power Supply
- USB Cable
Combining capabilities usually reserved for a computer-controlled converter, the DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion is an independent device that features both HDMI and a 12G/3G/HD/SD-SDI input, and can cross-convert either signal to the other. It features a built-in scaler and frame rate converter, allowing you to convert the input signal to your required output standard in 3249 possible conversion combinations.
The 12G-CROSS features one HDMI 2.0 output and two pairs of 12G/3G/HD/SD-SDI outputs, controllable via 57 selectable conversion modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a USB cable, a power supply, and features a threaded locking power socket to prevent accidental power loss during use.
57 Conversion Formats
- (3840 or 4096) x 2160p: 50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p: 30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p: 50/59.94/60 via HDMI or 3G-SDI (Level A or B)
- 1920 x 1080i: 60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p: 30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080PsF: 30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p: 60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p: 24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
Video Input Connectors | 1 x HDMI (HDMI 2.0) Female 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female |
Input Video Format | HDMI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps |
Embedded Audio Input | HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input) |
Video Output Connectors | 1 x HDMI (HDMI 2.0) Female 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Loop Output) |
Output Video Format | HDMI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps |
Embedded Audio Output | HDMI: 2-Channel (per Output) SDI: 2-Channel (per Output) |
Video Standard Compliance | SMPTE 259M/274M/292M/296M/ST-2036 |
HDCP Support | None |
Other I/O | 1 x USB (Unspecified Type) Input 1 x BNC Genlock |
Power Connector | 1 x Barrel (5 to 32 VDC) Input |
Dimensions | 5.12 x 4.17 x 1.22" / 13 x 10.6 x 3.1 cm |
