Decimator MC-DMON-QUAD
by Decimator Design
Verfügbarkeit:
7-10 days delivery
SKU
DD-MC-QUAD

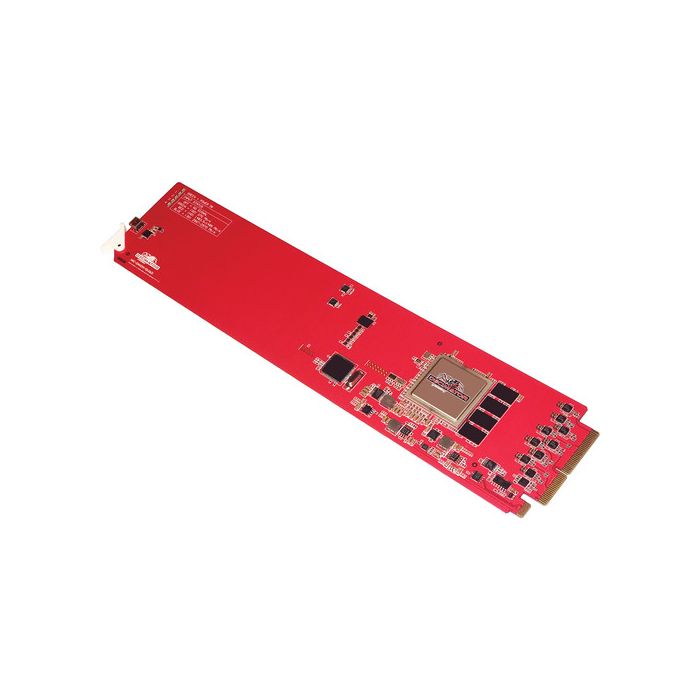

MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios.
408,25 €
326,60 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
The MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios. For SDI connectivity and tally, the card is compatible with the separately available DR1-10B1G rear.
- Four 3G-SDI inputs with automatic format detection
- Each input can have a unique format - data rate, resolution, and frame rate
- Supports unique aspect ratios per quadrant
- Functions as 1 to 4 multiviewer or 4 to 1 multiplexer
- Custom Layouts with various standard layouts
- 16-Character UMD overlay per window with custom positioning and size
- 8-Channel Audio Metering overlay per window with custom positioning and size
- Audio ID overlay
- Supports dynamic UMD and tallies via RS422/485 using the widely implemented TSL protocol (requires separately available DR1-10B1G connectivity module)
- Tallies can be applied to either tally boxes (default) or border element
- Tally boxes allows for up to four Tallies per window
- Selectable output format in both Full-Screen MultiViewer mode
- Low latency buffering enables connection of unsynchronized sources
- Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
- In pass-through mode, the selected input is passed to both SDI outputs
- Mini-USB port for firmware updates
- Supports openGear DashBoard for control
Connectivity | |
---|---|
Inputs | 4 x 3G-SDI 1 x mini-USB Type-B for control and updates 1 x 3-pin connector for UMD and Tallies via RS-422/485 |
Outputs | 1 x 3G-SDI |
Supported Standards | |
---|---|
SDI | 3G-SDI (SMPTE 424M) Data rate: 2.97; 2.967 Gb/s Resolutions: 1080p: 60; 59.94; 50 Hz HD-SDI (SMPTE 292M/274M/296M) Datarate: 1.485; 1.435 Gb/s Resolutions: 1080i: 60; 59.94; 50 Hz 1080p/psf: 30; 29.97; 25; 24; 23.98 Hz 720p: 60; 59.94; 50; 30; 29.97; 25; 24; 23.98 Hz SD-SDI (SMPTE 259M) Datarate: 270 Mb/s Resolutions: 625i50 (PAL); 525i59.94 (NTSC) |
General | |
---|---|
Status Indication | 1 x Power / Update 4 x Signal lock and rate |
