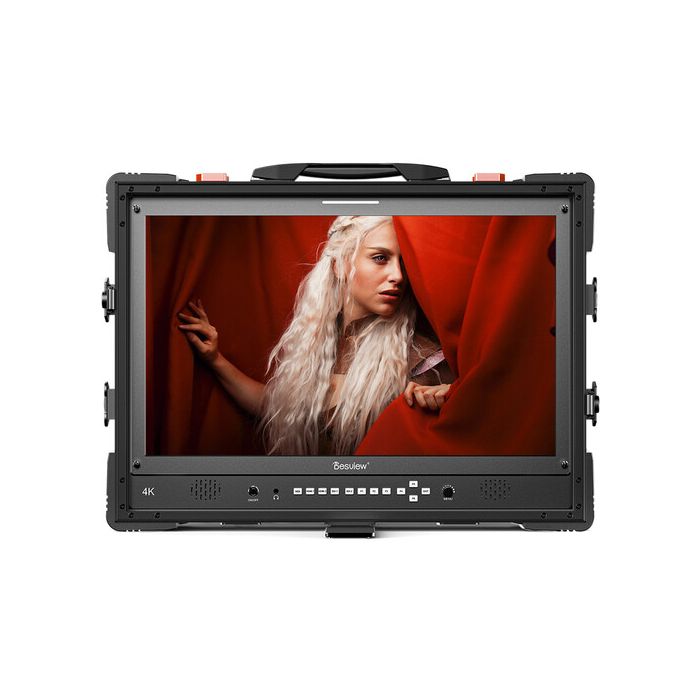

Desview D24-HDR 4K Professional Director Monitor

by Desview
Verfügbarkeit: 7-10 days delivery
SKU
DES-D24-HDR

23.8" 3840 x 2160 HDR Display
12G/3G-SDI & HDMI In/Out, USB Input

1.299,00 € 1.039,20 €

Paket beinhaltet

  • Desview 23.8" Director Monitor with Protector Case
  • Power Cable
  • Case

The 23.8" Monitor with Protector Case from Desview features a durable safety case and a bright 4K HDR display for broadcast, field production, or cinema monitoring. The 23.8" display features a 3840 x 2160 resolution, 400 cd/m² brightness, and 1000:1 contrast ratio for crystal clear imagery. The monitor features 12G-SDI, 3G-SDI, HDMI, and USB inputs that support up to 4K60 video, and it can output via 3G-SDI and HDMI to additional destinations such as other monitors and switches.

The multiview function allows you to view dual, triple, or quad images on the display. Other features include a waveform tool, a tally light, picture-in-picture mode, a 178° viewing angle, a headphone jack, front speakers, and both horizontal and vertical display modes suitable for social media content. You can power the monitor using the 4-pin XLR power adapter, a standard AC plug, or via the V-mount battery plate on the back. The protective safety case protects the monitor in the field and during transport.

Display
Panel Type LCD
Display Size 23.8" / 60.5 cm
Native Resolution 3840 x 2160
Aspect Ratio 16:09
Viewing Angle Horizontal: 178°
  Vertical: 178°
Touchscreen No
Maximum Brightness 400 nits / cd/m2
Contrast Ratio 1000:01:00
HDR Support Yes
Pixels Per Inch (ppi) 185 ppi
Color Gamut 99.5% DCI-P3
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra
Inputs / Outputs
Video I/O 2x BNC (3G-SDI) Input
  2x HDMI 2.0 Input

1x BNC (12G-SDI) Input

1x USB-A (Unspecified Signal) Input

2x BNC (3G-SDI) Output
  1x HDMI 2.0 Output
Embedded Audio SDI: 2-Channel
  HDMI: 2-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker Stereo
Power I/O
1x Barrel (24 VDC) Input
Other I/O 1x RJ45 (Tally) Input
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
  DCI 4K: 60
  SDI
  DCI 4K: 60
Power
Battery Type 1x V-Mount
Environmental
Operating Temperature 12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
General
Weight 32.80 lb / 14.88 kg
