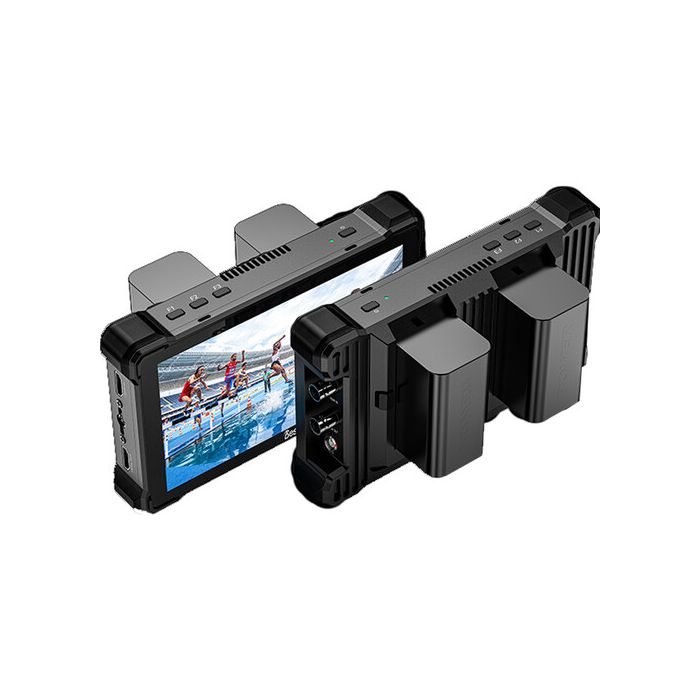

Desview R7S III 7inch On-Camera Monitor

The R7SIII 7" High-Bright 1080p Touchscreen Monitor with 4K60 HDMI/3G-SDI I/O from Desview enables you to view your video capture using a sharp 7" IPS LCD with 1920 x 1080 resolution, 2800 cd/m² of brightness, 1000:1 contrast ratio, 10-bit color, and touchscreen control. Features include a viewing angle of 178°, HDMI 2.0 and 3G-SDI input and output, LUT import via the USB-A port, a 3.5mm headphone output, and support for up to DCI 4K60 HDMI video input and output with embedded audio. There are numerous imaging tools built into the monitor, including vectorscope, waveform, and zebra, among many others.

The R7SIII is powered using the integrated dual L-series battery plate, via USB-C, or via a separately available DC barrel adapter. The monitor also features an 8 VDC barrel output for powering your camera using the camera batteries using a separately available dummy battery or cable. Mount the R7SIII on your rig using the 1/4"-20 bottom or side thread and a support arm or the included tilting monitor mount.

Ultrahigh Brightness

The R7SIII features a 2800 cd/m² ultrahigh brightness LCD screen for clear visuals in darkness or direct sunlight.

High-Resolution Display

The upgraded display supports up to 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.

Professional Interfaces

The monitor features HDMI and 3G-SDI inputs and outputs, 3.5mm headphone output, USB-C power, and both USB-A firmware and LUT import.

Dynamic Monitoring

The latest HDR PQ and HLG curves are supported for displaying rich colors and smooth transitions, and it allows you to switch between SDR and HDR views with a single click. It also features a film-grade color gamut with 100% DCI-P3 coverage, supporting true-to-life color with 10-bit color depth.
