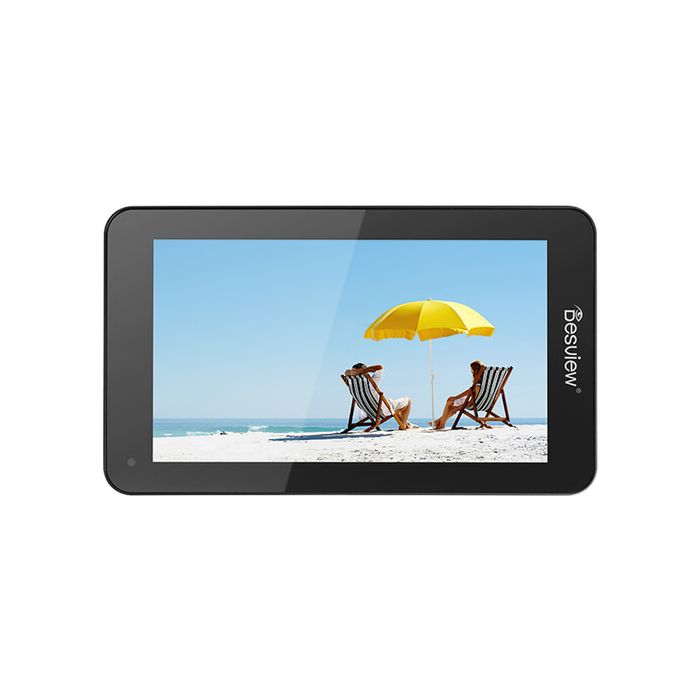

Desview U6 5.5inch On-Camera Monitor

by Desview

Verfügbarkeit: 7-10 days delivery

SKU

DES-U6

5.5" 1920 x 1080 Touchscreen Display
2800 cd/m² Brightness, 1000:1 Contrast

389,00 € 311,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

Desview U6 5.5" 4K HDMI Camera Control Monitor
Thumb Drive
Cold Shoe Mounting Adapter
HDMI Cable Set
D-Tap Power Cable
USB Type-C to LANC Camera Control Cable
Microfiber Cleaning Cloth
Storage Case

Details

The compact U6 5.5" 4K HDMI Camera Control Monitor from Desview provides professional monitoring in a sharp 5.5" IPS LCD with 1920 x 1080 resolution, 2800 cd/m² brightness, 1000:1 contrast ratio, and touchscreen control. The monitor features HDMI input and output, and it supports up to DCI and UHD 4K video input and pass-through output. It also features a USB Type-C port that provides 5V power input for the monitor, and it also can be used for LANC camera control functions such as iris and focus. You can also power your camera or other accessories using the 8 VDC barrel output.

The IPS LED panel has a viewing angle of 178° L/R, U/D for good color and contrast, even with off-axis viewing, and it displays 90% of the DCI-P3 standard. The U6 is powered using the integrated L-series battery plate or via a separately available DC adapter. A USB Type-A port allows you to import custom 3D LUTs. Two 1/4"-20 threads on the side and bottom allow you to mount the monitor on a variety of configurations, or you can use the included cold shoe adapter to mount the monitor on your camera. The 3.5mm headphone jack on the bottom allows you to monitor the embedded audio.

Features

Daylight-viewable, 5.5" touchscreen on-camera monitor with 2800 cd/m² brightness.
Slim, lightweight design with touchscreen IPS LCD panel.
HDMI supports video input up to DCI/UHD 4K60.
Power the camera via USB Type-C or DC input.
Control the camera using the USB Type-C port for LANC control functions such as iris and focus.
Two 1/4"-20 mounting threads on the side and bottom of the monitor.

Touchscreen

The U6 monitor adopts a 5.5" touchscreen panel with a 1920 x 1080 resolution and 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch to zoom, which helps check every corner and detail of the image. A short press on the power button can lock the screen to prevent accidental changes to your selections.
The 2800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.

Mehr Informationen

Display
Panel Type	IPS-Type LCD
Display Size	5.5" / 14.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	Yes
Maximum Brightness	2800 nits / cd/m2
Contrast Ratio	1000:01:00
Dot Pitch	0.021 x 0.063 mm
HDR Support	No,
Pixels Per Inch (ppi)	400 ppi
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
Video I/O	1x HDMI 2.0 Input
	1x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (24 VDC) Input
	1x Barrel (8 VDC) Output
	1x USB-C (3 A / 5 VDC) Input
Other I/O	1x USB-A 2.0 Input
	1x USB-C (LANC) Input/Output
Media/Memory Card Slot	No
Wi-Fi	No
Format Support
Video Format	HDMI
	DCI 4K: 60/50/30/25/24
	UHD 4K: 60/50/30/25/24
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
Power
Input Power	7 to 24 VDC
Battery Type	1x L-Series (Interchangeable Mount)
Power Consumption	15 W
Mounting
Mounting	2x 1/4"-20 Female
Environmental
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
General
Dimensions	6 x 3.5 x 1.11" / 151.4 x 89.1 x 28.21 mm
Packaging Info
Package Weight	5.1 lb
Box Dimensions (LxWxH)	14.9 x 12.2 x 5.3"
