DJI Agras T25 Drone

by DJI
20-30 days delivery
SKU
DJI-T25

DJI AGRAS T25 redefines standards for compact agricultural drones. Light and nimble, DJI AGRAS T25 can easily be handled by one person. It can carry a spraying payload up to 20 kg or a spreading payload up to 25 kg.

Neu

Paket beinhaltet

  • DJI Agras T25 Drone

DJI AGRAS T25 redefines standards for compact agricultural drones. Light and nimble, DJI AGRAS T25 can easily be handled by one person. It can carry a spraying payload up to 20 kg[1] or a spreading payload up to 25 kg[1]. DJI AGRAS T25 is equipped with Front and Rear Phased Array Radars, a Binocular Vision System, and a high resolution FPV gimbal camera. DJI AGRAS T25 supports multiple missions, from surveying[2] to spraying and spreading and excels across a variety of terrains.

*The appearance of the product is subject to the actual product.

Foldable, Flexible, Functional

DJI AGRAS T25 adopts a lightweight, foldable design. Optimized for solo operations, its unfolded dimensions have been reduced by 21% compared with its predecessor[11]. Transport, fold, takeoff, and land with flexibility.

Additional Sprinklers to Simplify Spraying

DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers for four-sprinkler spraying[12]. When flying manually, use Reverse Directional Spray to simplify operations without having to make turns. DJI AGRAS T25 is equipped with a high-resolution FPV gimbal camera which enables viewing the surrounding environment in real time for safer operations.

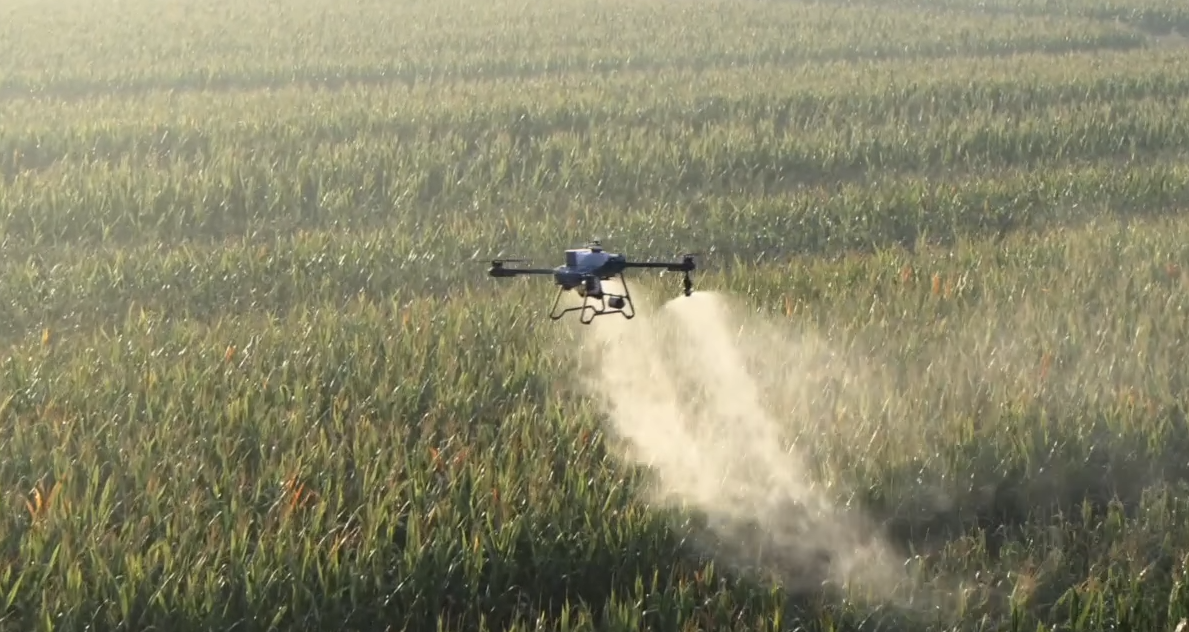

Spraying System

High Rate, Atomized Spray, Leak Free

DJI AGRAS T25's Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T25 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume, increasing spraying scope, operation efficiency, and leaf coverage.

Magnetic Drive Impeller Pump

Dual pump flow rate of up to 24 L/min[3]. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

Dual Atomizing Centrifugal Sprinklers

Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.

Brand-New Solenoid Valves

Precision starting and stopping eliminates leaking.

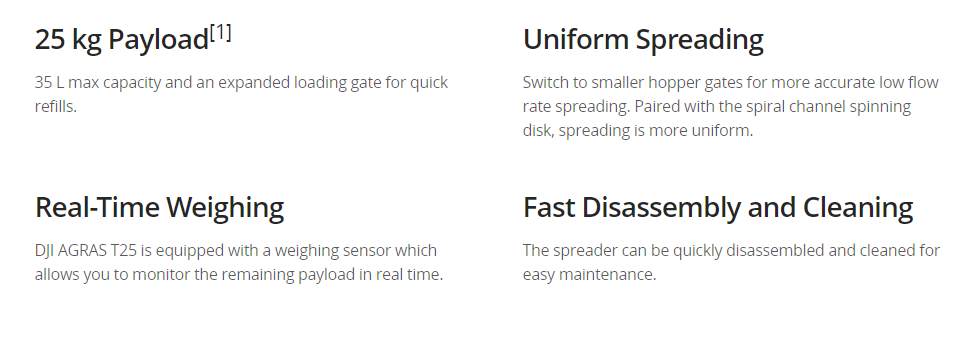

DJI AGRAS T25 Spreading System [1]

Spread with Speed

DJI AGRAS T25's new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.

Tested for reliability, durability and safety

Spraying and spreading operations are frequent, intense, and take place in complex environments. DJI AGRAS T25 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation.

Double your peace of mind with Binocular Vision and Dual Radar

DJI AGRAS T25 is equipped with front and rear Active Phased Array Radars with double the number of RF channels[18] for higher detection precision. Together they enable Multidirectional Obstacle Sensing[6], elevating operating safety. Two sets of Binocular Vision sensors enable DJI AGRAS T25 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing[13] and Terrain Following[13] over steep slopes.

One drone for surveying[2], spraying, and spreading

DJI AGRAS T25 integrates aerial surveying[2], spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automated flight routes. DJI AGRAS T25 can take off and perform automated operations, all at the push of a button.

Orchard Aerial Survey[2]

DJI AGRAS T25 supports obstacle bypassing and Terrain Following for surveying[2] of orchards on slopes up to 20°[5]. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes.

5 hectare orchard mapped in 10 minutes[14]

Orchard 3D Map

Field Aerial Survey[2]

Area Route, Mapping of 13 hectare field in 10 minutes[14]

Survey the entire field, automatically identify field boundaries and obstacles, and plan more precise flight routes.

Boundary Route, 13 hectare field boundary mapped in 3 minutes[14]

Suitable for fields without obstacles in the middle. Allows for quick plotting of field boundaries and efficient aerial surveying[2].

Remote Controller with a large high brightness screen

The 8-core processor provides powerful computing power and makes operations smoother. Intelligent route planning reduces the number of ineffective flights with full load and greatly increases operation efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. The manual mode allows you to control operations at will.

  • Multi Plot Operations
  • Orchard Route Segmentation
  • Orchard Mode Spreading
  • Sided Spraying

Signal Stability

The new and upgraded quad-antenna O3 Transmission system works even in areas without cellular coverage, offering a transmission range of 2 km. [8] Its anti-interference ability helps ensure high signal quality during operations over tall crops.

DJI Relay (Optional)

DJI Relay ensures smooth real-time video transmission for safer flights even in complex operation scenarios with signal obstructions.

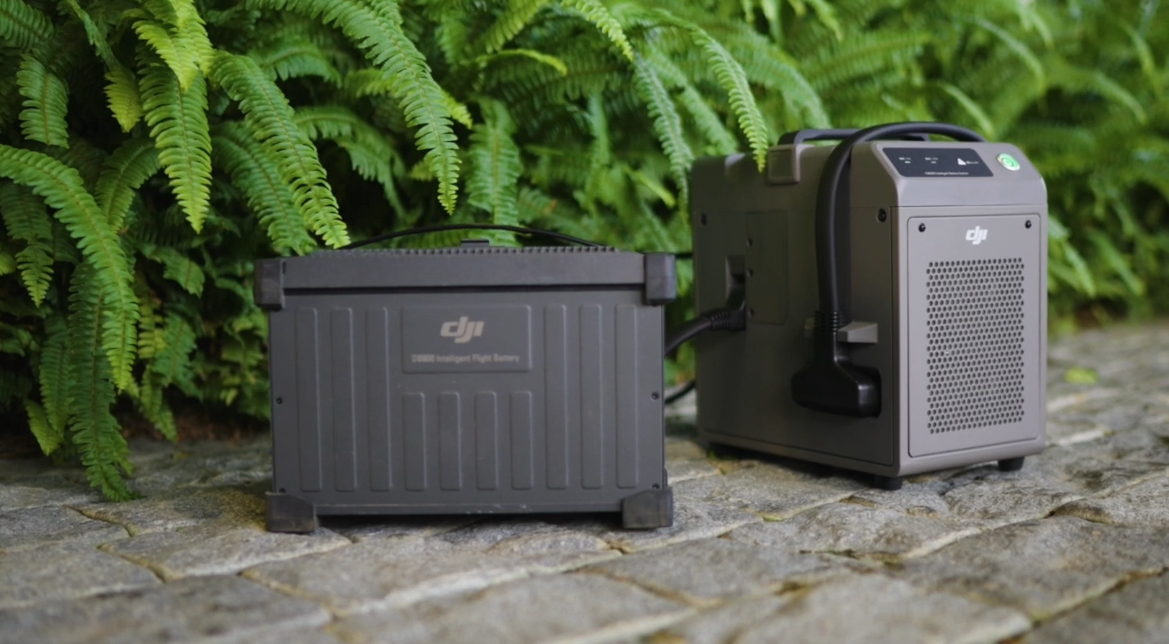

Fuel-Efficient Fast Charging

The D6000i Multifunctional Inverter Generator delivers efficient inversion and rectification, maximizing fuel economy. The DB800 Intelligent Flight Battery supports ultra-fast charging[7] in 9 minutes. The C8000 Intelligent Charger can charge batteries directly with utility power.

Smart Agriculture Ecosystem

Pair DJI AGRAS T25 with the new Mavic 3M and leverage multispectral data to minimize inputs and maximize yields. Survey your farm and generate prescription maps to guide variable rate fertilization and crop protection. Quickly patrol fields to identify growth stress.

* Actual product appearance may differ slightly from official image and video depictions.
[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The take-off payload weight needs to be reduced by 5 kg for every 1,000 m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] RTK is required.
[3] Maximum spraying flow rate with two sprinklers is 16 L/min. Maximum spraying flow rate with four sprinklers is 24 L/min.
[4] Data measured with 4 mm diameter urea. The maximum flow rate may vary depending on the granule size, density, and surface smoothness of different fertilizers.
[5] To ensure a high success rate of surveying and mapping, DJI AGRAS T25 can automatically adjust its flight speed based on the hill slope. The steeper the slope, the slower its speed.
[6] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. It is recommended that linear objects such as wires or inclined lines be planned as obstacles. Downward sensing is used for Terrain Follow and Altitude Stabilization. The sensing in other directions is used for Obstacle Avoidance.
[7] Charging from 30% to 95%. Factors impacting charging time: Altitude of the charging station; Charging cable meets requirements for fast charging; Battery cell's temperature is in the range of 15° to 70° C (59° to 158° F)
[8] It was measured at a flight altitude of 2.5 meters, without obstruction or electromagnetic interference.
[9] Data was measured with the DJI DJI AGRAS T25 and may vary based on operating environment and parameters. Flight parameters for this test: Dosage of 15 L/ha, spraying width of 7 m, flight speed of 6.5 m/s, and height of 2.5 m.
[10] Data was measured with urea and may vary by granule type, operating environment, and parameters. Spreading parameters for this test: Dosage of 150 kg/ha, spreading width of 8 m, flight speed of 10 m/s, height of 4 m, and spinning disk speed of 1,000 r/min.
[11] Size comparison between the unfolded DJI AGRAS T25 and the unfolded T20P.
[12] Requires the purchase of two additional centrifugal nozzles.
[13] Obstacle Bypassing is supported in the forward direction. Obstacle Bypassing features are not supported at night or in low light environments. Fly with caution. Obstacle Bypassing is not recommended around electric or guy wires.
[14] Refers to the mapping time after completing the aerial survey. Time varies depending on the firmware version, type of aerial survey, and other factors.
[15] Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
[16] Compared with third-party general-purpose generators equipped with an intelligent charger.
[17] Each AC cable of the C8000 Intelligent Charger must be connected to an AC socket or extension socket with a rated current greater than 16 A.
[18] Compared with T20P Omnidirectional Active Phased Array Radar.
[19] Generator only available in select countries and regions. Please contact your local dealer for more details.

Aircraft
Weight 25.4 kg (excl. battery)
  32 kg (incl. battery)
Max Takeoff Weight[1] Max takeoff weight for spraying: 52 kg (at sea level)
  Max takeoff weight for spreading: 58 kg (at sea level)
Max Diagonal Wheelbase 1925 mm
Dimensions 2585×2675×780 mm (arms and propellers unfolded)
  1475×1540×780 mm (arms unfolded and propellers folded)
  1050×690×820 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal) RTK enabled:
  Horizontal: ±10 cm, Vertical: ±10 cm
  RTK disabled:
  Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
RTK/GNSSOperating Frequency RTK:
  GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
  GNSS:
  GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1
Max Configurable Flight Radius 2000 m
Max Wind Resistance 6 m/s
Propulsion System - Motors
Stator Size 100×28 mm
KV 59 rpm/V
Power 4600 W/rotor
Propulsion System - Propellers
Material Nylon carbon fiber filament
Dimension 50 inch
Propeller Rotation Diameter 1270 mm

Quantity 4
Dual Atomizing Spraying System - Spray Tank
Material Plastic (HDPE)
Volume 20 L
Operating Payload [1] 20 kg[1]
Quantity 1
Dual Atomizing Spraying System - Sprinklers
Model LX8060SZ
Quantity 2
Nozzle Distance 1368 mm(Rear Nozzles)
Droplet Size 50-500 μm
Effective Spray Width[2] 4-7 m (at a height of 3 m above the crops)
Dual Atomizing Spraying System - Delivery Pumps
Type Impeller pump (magnetic drive)
Quantity 2
Single Pump Flow Rate 0-12 L/min
Max Flow Rate 16 L/min (2 sprinklers)
  24 L/min (4 sprinklers)
DJI AGRAS T25 Spreading System
Compatible Material Diameter 0.5-5 mm
Spread Tank Volume 35 L
Spread Tank Internal Load [10] 25 kg[1]
Effective Spraying Width Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.
Phased Array Radar System
Model RD241608RF (forward phased array radar)
  RD241608RB (rear phased array radar)
Terrain Follow Max slope in mapping-free operation: 50°
  Altitude detection range: 1-50 m
  Stabilization working range: 1.5-30 m
Obstacle Avoidance[4] Obstacle sensing range (multidirectional): 1-50 m
  FOV:
  Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  Rear phased array radar: vertical 360°, horizontal ±45°
  Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
  Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
  Sensing direction: 360° multidirectional sensing
Binocular Vision System
Measurement range 0.5-29 m
Effective Sensing Speed ≤10 m/s
FOV Horizontal: 90°, Vertical: 106°
Operating Environment Adequate light and discernible surroundings
Remote Controller
Model RM700B
Operating Frequency[5] 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
  (unobstructed, free of interference, and at an altitude of 2.5 m)
Wi-Fi Protocol Wi-Fi 6
Wi-Fi Operating Frequency [5] 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz
Bluetooth Protocol Bluetooth 5.1
Bluetooth Operating Frequency
GNSS GPS+Galileo+BeiDou
Screen 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Operating Temperature -20° to 50° C (-4° to 122° F)
Storage Temperature Range Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Six months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature 5° to 40° C (41° to 104° F)
Internal Battery Runtime 3 hours 18 minutes
External Battery Runtime 2 hours 42 minutes
Charging Type It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
Charging Time 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

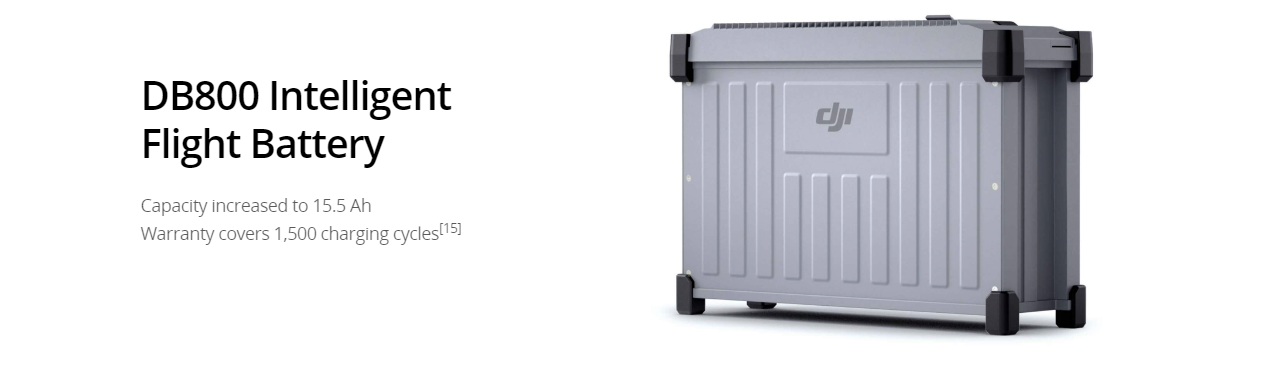

DB800 Intelligent Flight Battery
Model DB800 Intelligent Flight Battery
  (BAX702-15500mAh-52.22V)
Weight Approx. 6.6 kg
Capacity 15500 mAh
Nominal Voltage 52.22 V

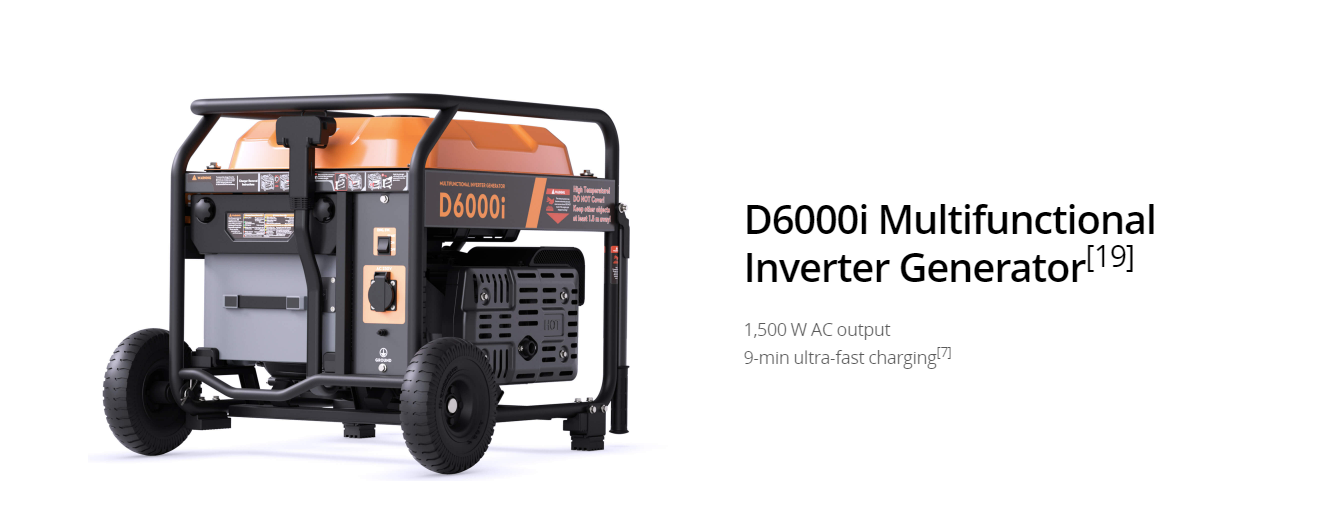

D6000i Multifunctional Inverter Generator
Output Channel 1. DC charging output 42-59.92V/4500W
  2.AC output 230V/1500W or 120V/750W[8]

Battery Charging Time[11] To fully charge one battery (DB800 battery) takes 9-12 mins
Fuel Tank Capacity 20 L
Starting Method Starting the Generator via the One-Button Start Switch
Max Power of Engine 6000 W
Fuel Type Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption [9] 600 ml/kWh
Engine Oil Model SJ10W-40

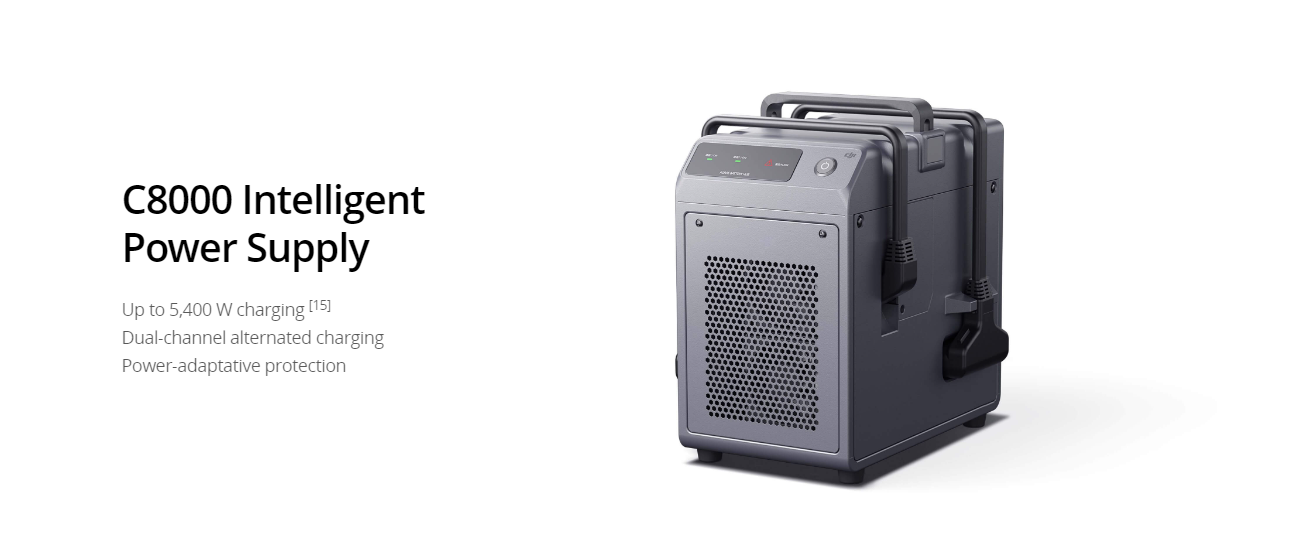

C8000 Intelligent Charger
Model Number CHX101-7000
Dimensions 300 × 280 × 230 mm
Weight Approx. 11.5 kg
Input/Output Input Voltage: 100-240 VAC
  Output Voltage: 59.92V
  Output Current: 100A max
Charging Time[11] Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
Protection Functions Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
Charging Safety AC wire protection, power wire protection, and charge connector protection
Relay
Model RL01-65
Dimensions 120×110×100 mm
Weight ≤575 g
Input Voltage [6] 9 V3 A / 12 V2.5 A / 15 V2 A
Power Consumption 9 W (SRRC), 12 W (FCC)
Capacity 6500 mAh
Operating Time 4 hours
Operating Frequency [5] 2.4000-2.4835 GHz
  5.725-5.850 GHz
Max Transmission Distance 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
  (unobstructed, free of interference, and at a flight altitude of 2.5 m)
Charging Time 2 hours and 20 minutes (when using a standard DJI charger)
IP Rating [6] IP55
Definition [1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 5 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
  [2] The spray width of the spraying system depends on the operating scenario and demand for coverage evenness.
  [3] The spread width of the spreading system depends on the operating scenario and demand for coverage evenness.
  [4] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing mainly assists in Terrain Follow and Altitude Hold. The sensing in other directions is used for Obstacle Avoidance.
  [5] 5.8 GHz frequency is unavailable in some contries. Check local regulations for more information.
  [6] Use chargers or external power supplies that meet the specifications. Otherwise, the device may not work normally.
  [7] The protection rating may be reduced due to improper use and damage caused by external forces or environmental factors.
  [8] The actual power and voltage may vary according to local regulations.
  [9] Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.
  [10] The DJI Agras app will intelligently recommend the payload weight limit for the spread tank according to the current status and surroundings of the aircraft. DO NOT exceed the recommended payload weight limit when adding material to the spread tank. Otherwise, the flight safety may be affected.
  [11]Factors impacting charging time: Altitude of the charging station; Charging cable meets requirements for fast charging; Battery cell's temperature is in the range of 15° to 70° C (59° to 158° F)
