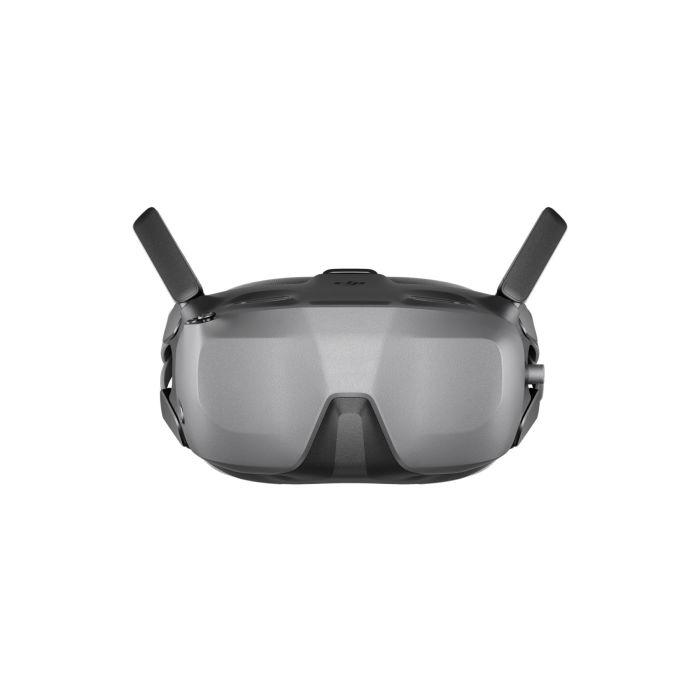

DJI Goggles N3
by DJIPair with RC Motion 3 for intuitive motion controls and experience the thrill of immersive flight.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DJI Goggles N3 × 1
- Immersive Flight Experience
- Ready to Use
- 1080p Ultra-Wide Screen
- DJI O4 Video Transmission
- AR Cursor
- 2.7-Hour Max Operating Time [1]
Embrace the Pilot's Perspective
When paired with DJI Neo/DJI Avata 2 and DJI RC Motion 3, [2] DJI Goggles N3 lets you soar through the skies and enjoy an immersive flight experience, as if you were in the pilot seat. Activate the head tracking function to control Neo/Avata 2 with head or wrist movements, achieving seamless synergy.
Easily unlock the aerial acrobatics of Neo, and let Goggles N3 immerse you in the thrilling experience of 360° front/back flips, left/right rolls, and 180° drifts.
Easily unlock the aerial acrobatics of Neo, and let Goggles N3 immerse you in the thrilling experience of 360° front/back flips, left/right rolls, and 180° drifts.
Ready to Use, Streamlined Creation
Roomy and Eyewear-Friendly Design
The roomy interior comfortably accommodates glasses, without needing diopter adjustments or lens installations. Simply put them on, and you can take off right away.
Integrated Design
The integrated headband and battery design balance the overall weight of the goggles, ensuring no pressure on your face for a comfortable fit.
One-Tap Defogging
When fog builds up on the surface of the lenses, the defogging function effectively controls moisture by accelerating the internal fan speed to swiftly circulate air, making it ideal for changing temperatures and high-humidity conditions.
1080p Ultra-Wide Screen
DJI Goggles N3 has a full 1080p 60Hz LCD screen and an impressive 54° FOV. Enjoy stunning visuals with minimal dizziness as impactful aerial scenes come alive before your eyes.
- LCD - Screen Material
- 1920 × 1080 - Screen Resolution
- 60 Hz - Max Screen Refresh Rate
- 1350 nits - Max Screen Brightness
O4 FHD Video Transmission
Ultra-Low Latency, Stable Video Transmission
The advanced DJI O4 digital video transmission system adopts a 2T4R antenna design, offering exceptional anti-interference performance. Enjoy 1080p/100fps live feeds with a minimum latency of 31 ms [3] and a transmission range of up to 13 km. [4] The goggles automatically select the optimal frequency band between 2.4 GHz and 5.8 GHz [5] based on the environment. This ensures stable transmission so you can experience flying in real-time and get a buttery-smooth live view.
With a max video transmission bitrate of 60 Mbps [6] and SyncSmooth technology, video transmission from the skies to the ground is optimized, providing a smooth live view even when flying at a high speed.
Smooth Flight, Powerful Operating Time
AR Cursor
DJI RC Motion 3 [2] can be used as an AR cursor before the aircraft takes off, or when the aircraft is hovering after braking. This allows you to effortlessly activate functions and adjust settings without taking your hands off RC Motion 3.
Real-Time Live Feed Sharing
Connect DJI Goggles N3 to your smartphone using a USB-C cable, and you can display a secondary live feed through the DJI Fly app. This allows others to check the live view in real-time, making sharing and teaching convenient and efficient.
Panorama Video Playback
Import panoramic videos onto a microSD card, and you can watch them through DJI Goggles N3. Enjoy a cinematic viewing experience in everyday life.
2.7-Hour Operating Time
A fully charged DJI Goggles N3 can last through the use of up to 13 DJI Neo batteries. [7] With a powerful 2.7-hour operating time, [1] you can unleash your creative passion and potential to the fullest.
| Goggles | |
| Model | TKGSM |
| Weight | 536 g (battery and headband included) |
| 349 g (battery and headband excluded) | |
| Dimensions | With antennas folded: 193×163×103 mm (L×W×H) |
| With antennas unfolded: 206×163×132 mm (L×W×H) | |
| Screen Size (single screen) | 3.5 inches |
| Resolution (single screen) | 1920×1080 |
| Refresh Rate | Up to 60 Hz |
| Interpupillary Distance Range | No interpupillary distance adjustment required, ready to use immediately. |
| Diopter Adjustment Range | Diopter adjustment not supported, can be used with personal glasses. |
| FOV (single screen) | 54° |
| Video Recording Format | MOV (video format: H.264) |
| Supported Video and Audio Playback Formats | MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM) |
| Panoramic Video: Spherical 2D panoramic videos | Max Video Specification: 4K/60fps |
| Real View Display | Real View not supported. |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Power Input | Built-in battery |
| Supported SD Cards | microSD (up to 512 GB) |
| Recommended microSD Cards | Lexar Professional 1066x 64GB U3 A2 V30 microSDXC |
| Lexar Professional 1066x 128GB U3 A2 V30 microSDXC | |
| Lexar Professional 1066x 256GB U3 A2 V30 microSDXC | |
| Lexar Professional 1066x 512GB U3 A2 V30 microSDXC | |
| Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC | |
| Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC | |
| Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC | |
| Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC | |
| Video Transmission | |
| Video Transmission | O4 |
| Operating Frequency | 2.400-2.4835 GHz |
| 5.150-5.250 GHz | |
| 5.725-5.850 GHz | |
| Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. | |
| Transmitter Power (EIRP) | 2.4 GHz: |
| < 30 dBm (FCC) | |
| < 20 dBm (CE/SRRC/MIC) | |
| 5.1 GHz: | |
| < 23 dBm (CE) | |
| < 21 dBm (FCC) | |
| 5.8 GHz: | |
| < 33 dBm (FCC) | |
| < 30 dBm (SRRC) | |
| < 14 dBm (CE) | |
| Latency | With DJI Avata 2: |
| 1080p/100fps video transmission quality: Minimum 31 ms | |
| With DJI Neo: | |
| 1080p/60fps video transmission quality: Minimum 58 ms | |
| Measured in an open, outdoor environment without interference or obstructions. Actual data varies with different aircraft models. | |
| Max Transmission Distance | With DJI Avata 2: |
| 13 km (FCC) | |
| 10 km (CE/SRRC/MIC) | |
| With DJI Neo: | |
| 10 km (FCC) | |
| 6 km (CE/SRRC/MIC) | |
| Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the aircraft's max flight distance. Always pay attention to RTH reminders on the live view during your flight. | |
| Max Video Bitrate | With DJI Avata 2: 60 Mbps |
| With DJI Neo: 50 Mbps | |
| Measured in an open, outdoor environment without interference or obstructions. Actual data varies with the operating environment. | |
| GFSK | |
| Operating Frequency | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | < 26 dBm (FCC) |
| < 20 dBm (CE/SRRC/MIC) | |
| Battery | |
| Dimensions | 120×71×44 mm (L×W×H) |
| Capacity | 2450 mAh |
| Voltage | 6.33-8.4 V |
| Type | Li-ion |
| Chemical System | LiNiMnCoO2 |
| Energy | 17.64 Wh |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Max Charging Power | 5 V/3 A (charging when powered off) |
| Runtime | 2.7 hours |
| The 2.7-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones. |
