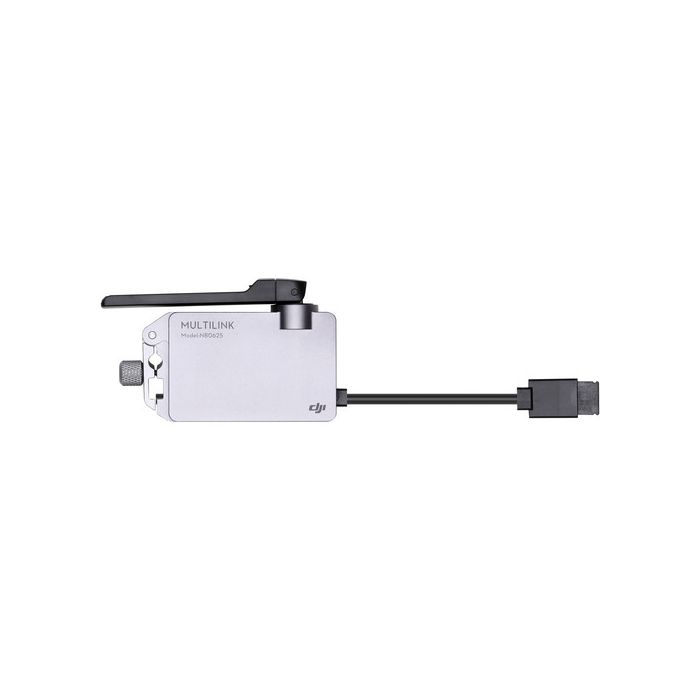

DJI Inspire 2 Multilink
by DJIAllows for Multiple Operators of 1 Drone
Connects 2-4 Controllers as Master/Slave
Run Pilot/Gimbal with 2 Remotes
Run Pilot/Gimbal/Camera with 3-4 Remotes
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DJI Multilink for Inspire 2 and Cendence Controllers
More easily perform complex multi-operator shots and maneuvers with the Multilink from DJI. Designed specifically for Inspire 2 and Cendence remote controllers, the Multilink allows for multiple remotes to control different aspects of a drone, as well as share incoming video signals. Multilink allows for one master remote and up to three slave remotes. The slave remotes send commands to the aircraft via the master remote, and the drone's image/video signal is received by the slave remotes directly from the aircraft.
Once set up, the master remote is designated as the pilot and the first slave remote is the gimbal operator. The pilot can control the gimbal as well, but not simultaneously. The second and third operators cannot control the gimbal but can control the camera itself, as can all remote operators. It's designed to connect to your Inspire 2 or Cendence controller, or an optional patch antenna module, directly via the included CAN cable. Simply use the DJI GO 4 app to complete setup and assign each remote's role.
Compatibility | DJI Inspire 2 Remote DJI Cendence Remote DJI Focus DJI Inspire 2 GPS Module DJI Patch Antenna |
LED Status Indicators | Yes |
Operating Frequency | 2400 to 2483.5 MHz 5725 to 5850 MHz |
EIRP | 2.4 GHz (FCC): <25 dBm 2.4 GHz (CE): <20 dBm 2.4 GHz (SRRC): <20 dBm 5.8 GHz (FCC): <29 dBm 5.8 GHz (CE): <14 dBm 5.8 GHz (SRRC): <19 dBm |
Maximum Communication Distance | 2.4 GHz: 492' / 150.0 m 5.8 GHz: 328' / 100.0 m |
Input | 4.2 to 5.5 VDC, 1 A (Max.) |
Maximum Delay Time | 2.4 GHz: 11.1 ms (From Master to Slave 3) 5.8 GHz: 7.5 ms (From Master to Slave 3) |
Minimum Delay Time | 2.4 GHz: 3.7 ms (From Master to Slave 1) 5.8 GHz: 2.5 ms (From Master to Slave 1) |
Operation Temperature | -4 to 104°F / -20 to 40°C |
