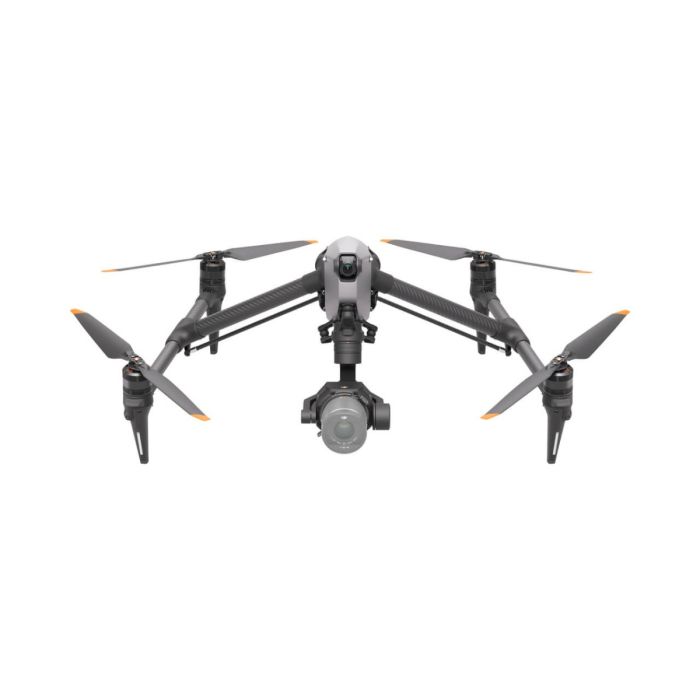

DJI Inspire 3
by DJIDual Native ISO
80° Tilt Boost or 360° Pan Dual Configurations
High Dynamic Range of 14+ Stops
1/1.8-inch Ultra-Wide Night-Vision FPV Camera
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x Inspire 3 Aircraft
- 1 x RC Plus
- 1 x Zenmuse X9-8K Air Gimbal Camera
- 1 x Zenmuse X9-8K Air Gimbal Camera Case
- 1 x Lens Carrying Box (18/24/35/50mm)
- 6 x TB51 Intelligent Battery
- 1 x TB51 Intelligent Battery Charging Hub
- 1 x PROSSD 1TB
- 3 x Inspire 3 Foldable Quick-Release Propellers (Pair)
- 1 x RC Plus Strap
- 1 x RC Plus Waist Support
- 1 x Inspire 3 Trolley Case
- 1 x USB-C to USB-C High-Speed Data Cable
- 1 x USB-C to USB-A Data Cable
- 1 x TB51 Intelligent Battery Charging Hub AC Cable
- 2 x Inspire 3 Gimbal Rubber Dampers
- 1 x TB51 Intelligent Battery Paired Batteries Sticker
- 1 x Double-Headed Screwdriver
Full-frame 8K ProRes RAW/CinemaDNG
Features an 8K sensor with internal recording of up to 8K/25fps CinemaDNG video and 8K/75fps Apple ProRes RAW video in full frame.

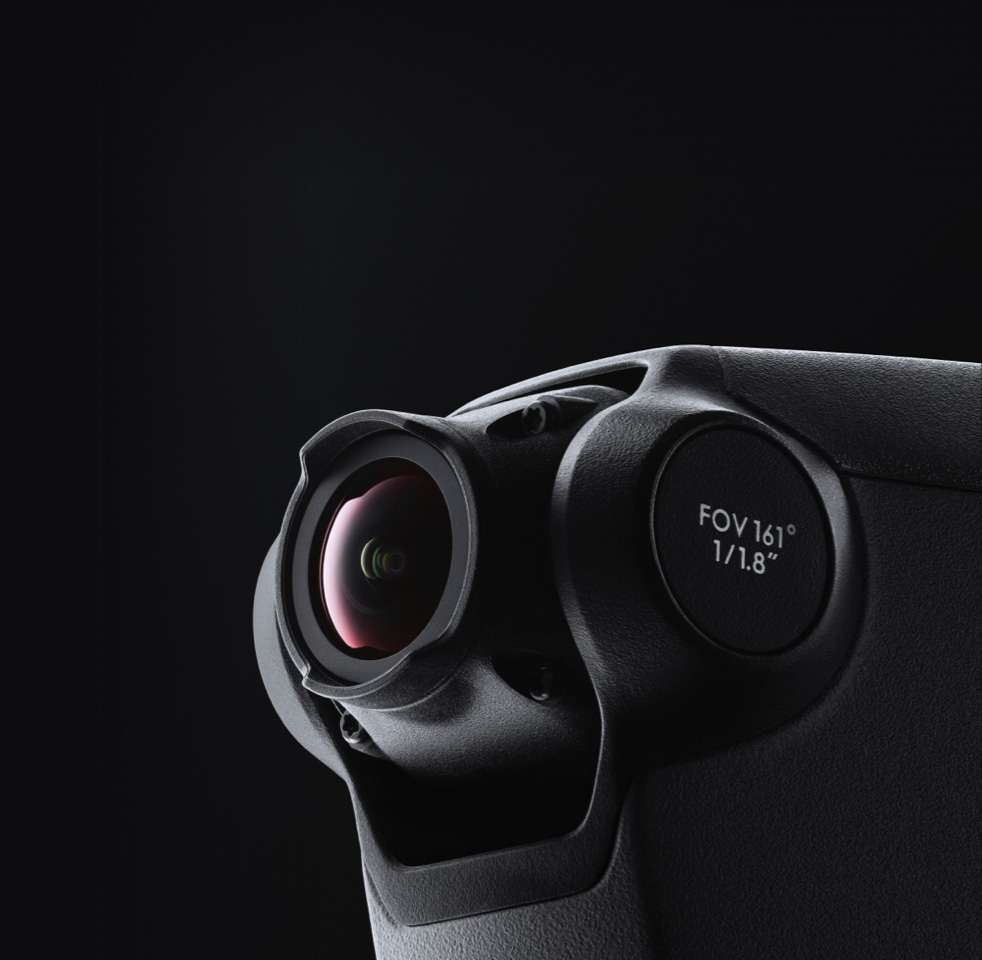

1/1.8-inch Low-Light FPV Camera
A new 1/1.8-inch-sensor FPV camera with a 3μm pixel size, 161° ultra-wide DFOV, and the ability to transmit live feeds at up to 1080p/60fps.
360° Pan and Tilt Boost
Inspire 3 features 360° Pan and Tilt Boost configurations. Tilt Boost allows for obstruction-free 80° upward-angle shooting.
O3 Pro Video Transmission
A max transmission distance of 15 km and 1080p/60fps, 4K/30fps live feeds with low latency. Also features dual control mode.
RTK and Waypoint Pro
Centimeter-level RTK positioning makes flying more stable and accurate, significantly improving features such as the new Waypoint Pro.
DJI PRO Ecosystem Support
Inspire 3 supports the DJI High-Bright Remote Monitor, DJI Master Wheels, and DJI Three-Channel Follow Focus, increasing coordination efficiency.
Aircraft | |
Model | T740 |
Aircraft Weight | Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers) |
Max Takeoff Weight | Approx. 4,310 g |
Hovering Accuracy Range | Vertical: |
±0.1 m (with vision positioning) | |
±0.5 m (with GNSS positioning) | |
±0.1 m (with RTK positioning) | |
Horizontal: | |
±0.3 m (with vision positioning) | |
±0.5 m (with GNSS positioning) | |
±0.1 m (with RTK positioning) | |
RTK Positioning Accuracy (RTK fix) | 1 cm + 1 PPM (horizontal) |
1.5 cm + 1 PPM (vertical) | |
Max Angular Velocity | Pitch: 200°/s |
Roll: 200°/s | |
Yaw: 150°/s" | |
Max Tilt Angle | N Mode: 35° |
S Mode: 40° | |
A Mode: 35° | |
T Mode: 20° | |
Emergency Brake: 55° | |
Max Ascent Speed | 8 m/s |
Max Descent Speed | Vertical: 8 m/s |
Tilt: 10 m/s | |
Max Horizontal Speed | 94 kph |
Max Service Ceiling Above Sea Level | Standard Propellers: 3800 m |
High-Altitude Propellers: 7000 m | |
Max Wind Resistance | Takeoff/land: 12 m/s |
In-flight: 14 m/s | |
Max Hovering Time | Not Specified by Manufacturer |
Max Flight Time | approx. 25 minutes |
Motor Model | DJI 3511s |
Global Navigation Satellite System | GPS + Galileo + BeiDou |
Propeller Model | Standard Propellers: DJI 1671 |
High-Altitude Propellers: DJI 1676 | |
Operating Temperature | -20° to 40° C (-4° to 104° F) |
Diagonal Distance | Landing Gear Raised: 695 mm |
Landing Gear Lowered: 685 mm | |
Travel Mode Dimensions | Height: 176 mm |
Width: 709.8 mm | |
Length: 500.5 mm | |
Gimbal Camera | |
Sensor | 35mm full-frame CMOS |
Max Resolution | Photo: 8192×5456 |
Video: 8192×4320 | |
Supported Lens | DL 18 mm F2.8 ASPH Lens |
DL 24 mm F2.8 LS ASPH Lens | |
DL 35 mm F2.8 LS ASPH Lens | |
DL 50 mm F2.8 LS ASPH Lens | |
Photo Format | JPG, DNG |
Video Format | MOV, CinemaDNG |
Operation Mode | Capture, Record, Playback |
Exposure Mode | P, A, S, M |
Shutter Type | Electronic shutter |
Shutter Speed | 8-1/8000 s |
White Balance | AWB |
MWB (2000K-10000K) | |
ISO Range Photo | |
ISO: 100-25600 | |
Video | |
EI: 200-6400 | |
Anti-flicker | Capture Mode: Auto, 50 Hz, 60 Hz, OFF |
Angular Vibration Range | Hovering: ±0.002° |
Flying: ±0.004° | |
Installation Method | Quick release |
Mechanical Range | Tilt: |
-128° to +110° (landing gear lowered) | |
-148° to +90° (landing gear raised) | |
Roll: -90° to +230° | |
Pan: ±330° | |
Controllable Range | Tilt (landing gear lowered): |
Before gimbal pitch limit extension: -90° to +30° | |
After gimbal pitch limit extension: -115° to +100° | |
Tilt (landing gear raised): | |
Before gimbal limit extension: -90° to +30° | |
After gimbal limit extension: -140° to +75° | |
Roll: ±20° | |
Pan: ±300° | |
Max Control Speed | With DJI RC Plus: |
Tilt: 120°/s | |
Roll: 180°/s | |
Pan: 270°/s | |
With DJI Master Wheels: | |
Tilt: 432°/s | |
Roll: 432°/s | |
Pan: 432°/s | |
Weight | Approx. 516 g (without lens) |
Video Transmission | |
Video Transmission System | O3 Pro |
Live View Quality | FPV Camera: Up to 1080p/60fps |
Gimbal Camera: Up to 1080p/60fps, 4K/30fps | |
Max Live Video Bitrate | 50 Mbps |
Max Transmission Distance | Single Control Mode: |
FPV Camera: approx. 15 km (FCC), 8 km (CE/SRRC/MIC) | |
Gimbal Camera (1080p/60fps live feeds): approx. 13 km (FCC), 7 km (CE/SRRC/MIC) | |
Gimbal Camera (4K/30fps live feeds): approx. 5 km (FCC), 3 km (CE/SRRC/MIC) | |
Dual-Control Mode: | |
FPV Camera: approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC) | |
Gimbal Camera (1080p/60fps live feeds): approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC) | |
Gimbal Camera (4K/30fps live feeds): approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC) | |
Lowest Latency | FPV Camera: 90 ms |
Gimbal Camera: 90 ms | |
Operating Frequency | 2.4000-2.4835 GHz |
5.150-5.250 GHz (CE: 5.170-5.250 GHz) | |
5.725-5.850 GHz | |
Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) |
5.1 GHz: <23 dBm (CE) | |
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE) | |
Battery | |
Model | TB51 Intelligent Battery |
Capacity | 4280 mAh |
Nominal Voltage | 23.1 V |
Type | Li-ion |
Chemical System | LiCoO2 |
Energy | 98.8 Wh |
Weight | Approx. 470 g |
Operating Temperature | -20° to 40° C (-4° to 104° F) |
Charging Temperature | -20° to 40° C (-4° to 104° F) |
Max Charging Power | 411 W |
Charge via Aircraft | Not supported |
Battery Charging Hub | |
Input | 100-240 V AC, max 8 A |
Output | 26.4 V, 7.8 A |
Total Rated Output | 476 W, including 65W PD fast charging of USB-C port |
Charging Time | Fast Mode: Approx. 35 minutes to 90% |
Standard Mode: Approx. 55 minutes to 100% | |
Silent Mode: Approx. 80 minutes to 100% | |
Charging Temperature | -20° to 40° C (-4° to 104° F) |
Weight | Approx. 1,680 g |
Memory Card | |
Memory Card Type | DJI PROSSD 1TB |
Sensing | |
Forward | Measurement Range: 1.5-48 m |
Effective Sensing Speed: ≤15 m/s | |
FOV: | |
Horizontal 90°, Vertical 103° (landing gear raised) | |
Horizontal 72°, Vertical 103° (landing gear lowered) | |
Backward | Measurement Range: 1.5-48 m |
Effective Sensing Speed: ≤15 m/s | |
FOV: Horizontal 90°, Vertical 103° | |
Lateral | Measurement Range: 1.5-42 m |
Effective Sensing Speed: ≤15 m/s | |
FOV: Horizontal 90°, Vertical 85° | |
Upward | Measurement Range: 0.2-13 m |
Effective Sensing Speed: ≤6 m/s | |
FOV: Front and Back 100°, Left and Right 90° | |
Downward | Measurement Range: 0.3-18 m |
Effective Sensing Speed: ≤6 m/s | |
FOV: Front and Back 130°, Left and Right 160° | |
Operating Environment | Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15) |
Downward: Surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people); adequate lighting (lux >15) | |
Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered. | |
ToF Infrared Sensor Measurement Range | 0-10 m |
Remote Controller | |
Model | RM700B |
Operating Time | Built-in Batteries: approx. 3.3 hours |
Built-in Batteries Plus External Battery: approx. 6 hours | |
Operating Frequency | 2.4000-2.4835 GHz |
5.725 GHz-5.850 GHz | |
In some countries and regions, 5.1GHz and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. | |
Video Output Port | HDMI |
Power Supply | Built-in batteries or external battery |
Coordinated Operation | Supports dual controls and coordination between multiple operators |
Power Consumption | 12.5 W |
Operating Temperature | -20° to 50 °C (-4° to 122° F) |
Storage Temperature | -30° to 45° C (-22° to 113° F) (within one month) |
-30° to 35° C (-22° to 95° F) (one to three months) | |
-30° to 30° C (-22° to 86° F) (three months to one year) | |
Battery | Built-in Battery: 3250mAh-7.2V (a set) |
External Battery: WB37 Intelligent Battery | |
Wi-Fi Protocol | Wi-Fi 6 |
Wi-Fi Operating Frequency | 2.4000-2.4835 GHz |
5.150-5.250 GHz | |
5.725-5.850 GHz | |
Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) |
5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) | |
5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) | |
Bluetooth Protocol | Bluetooth 5.1 |
Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
Bluetooth Transmitter Power (EIRP) | < 10 dBm |
App | DJI Pilot 2 |
FPV Camera | |
FOV | 161° |
Resolution | 1920×1080@60fps |
