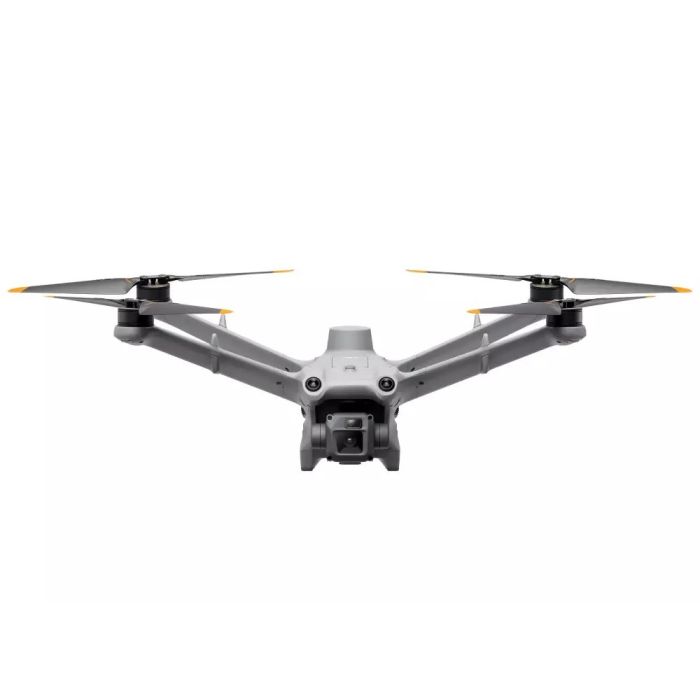

DJI Matrice 3D
by DJI
14-20 days delivery
SKU
DJI-M3D
DJI Matrice 3D is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DJI Matrice 3D
High-Performance Aircraft Models
DJI Matrice 3D is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks.
Wide-Angle Camera
- 4/3 CMOS
- 24mm Format Equivalent
- 20MP Effective Pixels
- Mechanical Shutter
Tele Camera
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D meets the requirements of high-standard operations.
Cloud-Based Operation, Maximum Control
Wide-Angle Camera | |
Image Sensor | 4/3 CMOS, Effective Pixels: 20 MP |
Lens | FOV: 84° |
Format Equivalent: 24 mm | |
Aperture: f/2.8-f/11 | |
Focus: 1 m to ∞ | |
Lens Defogging | The wide-angle camera supports lens defogging. |
ISO Range | 100-6400 |
Shutter Speed | Electronic Shutter: 8-1/8000 s |
Mechanical Shutter: 8-1/2000 s | |
Max Image Size | 5280×3956 |
Still Photography Modes | Single: 20 MP |
Timed: 20 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
Smart Low-Light: 20 MP | |
Panorama: 20 MP (raw image); 100 MP (stitched image) | |
Video Resolution | H.264 |
4K: 3840×2160@30fps | |
FHD: 1920×1080@30fps | |
Video Bitrate | 4K: 130 Mbps |
FHD: 70 Mbps | |
Supported File System | exFAT |
Photo Format | |
JPEG | |
Video Format | |
MP4 (MPEG-4 AVC/H.264) | |
Tele Camera | |
Image Sensor | 1/2-inch CMOS, Effective Pixels: 12 MP |
Lens | FOV: 15° |
Format Equivalent: 162 mm | |
Aperture: f/4.4 | |
Focus: 3 m to ∞ | |
Lens Defogging | The tele camera supports lens defogging. |
ISO Range | 100-6400 |
Shutter Speed | Electronic Shutter: 8-1/8000 s |
Max Image Size | 4000×3000 |
Photo Format | JPEG |
Video Format | MP4 (MPEG-4 AVC/H.264) |
Still Photography Modes | Single: 12 MP |
Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
Smart Low-Light: 12 MP | |
Video Resolution | H.264 |
4K: 3840×2160@30fps | |
FHD: 1920×1080@30fps | |
Video Bitrate | 4K: 130 Mbps |
FHD: 70 Mbps |
