DJI Power 500
by DJIDJI Power 500 provides stable power with a battery capacity of 512 Wh, max output power of 1000 W and fast charging for select DJI drones.
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1x DJI Power 500
- 1x DJI Power AC Power Cable
Power Supply/Recharge
Stable AC Output

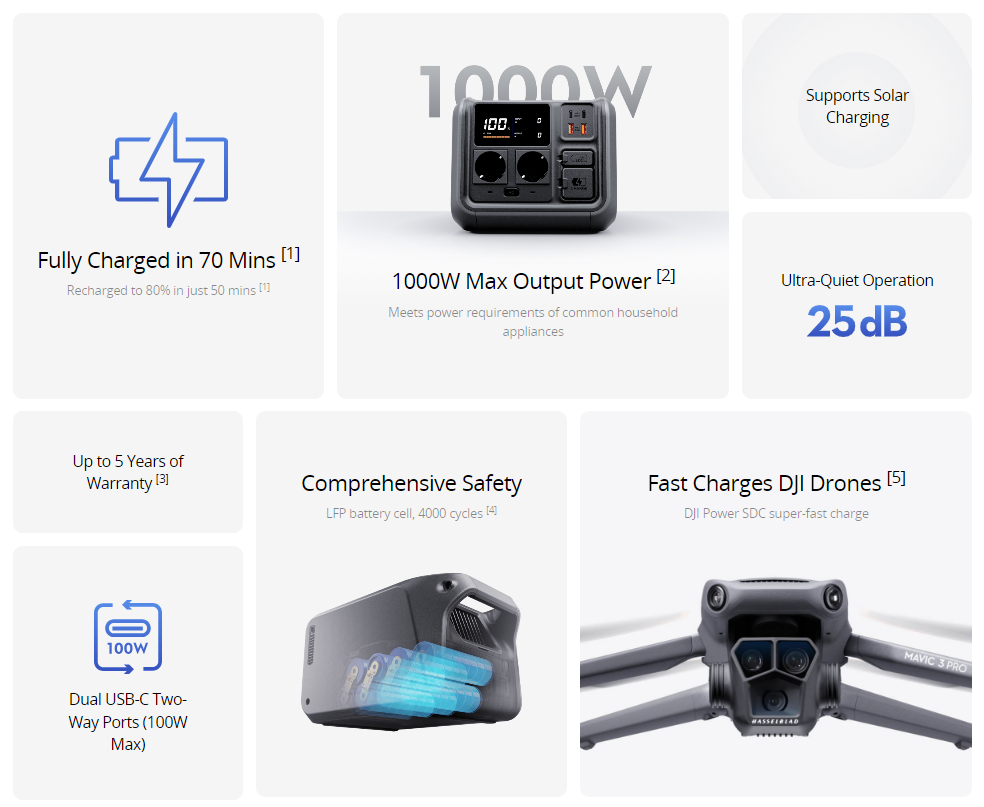

The compact and portable DJI Power 500 has a battery capacity of 512 Wh to provide a max output power of 1000 W. It can also fast charge DJI drone batteries to unleash your aerial content creation.
512Wh Capacity Charging Ability
Camping and Road Trips
Content Creation
Fast Charges DJI Drones

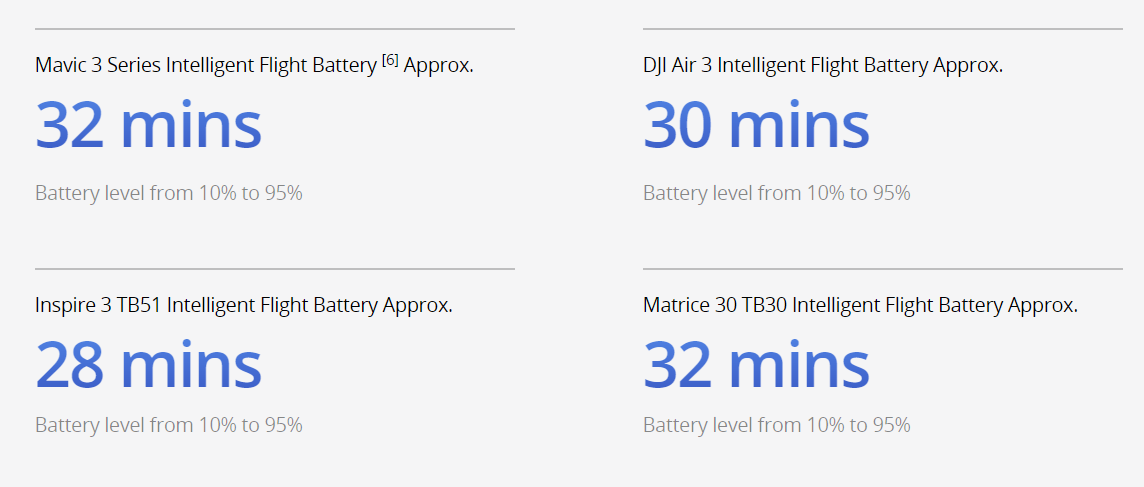

With the aid of separately-sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function, and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation.
Multiple Recharging Options
DJI Power 500 can be recharged in four ways: grid power, USB-C, solar power, and car power. Whether indoors or on the road, you can flexibly choose the recharging method that works for you.
Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, DJI Power 500 supports both 540W Fast Recharge Mode and 270W Standard Recharge Mode, with the quickest recharging time being 70 minutes for 100% battery. It can also charge to 80% in just 50 minutes.
USB-C Recharging
DJI Power 500 can be recharged through two 100W USB-C ports, for a total power of 200W input power, and it can be fully charged in approximately three hours.
Solar Power
DJI Power 500 can be connected to solar panels through the DJI Power Solar Panel Adapter Module (MPPT) or DJI Power Car Power Outlet to SDC Power Cable, and recharged with environmentally friendly solar power. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm allows the solar panels to recharge DJI Power 500 in an optimized and efficient way.
Car Power
Easily supercharge any road trip. With the DJI Power Car Power Outlet to SDC Power Cable (12V/24V), you can recharge DJI Power 500 via car charger for a fully recharged unit in as little as six hours.
Safety Design
Safe and Secure, Inside and Out
Safety comes first at all times. From the body structure and cell chemistry to the system software, DJI Power 500 features a comprehensive safety design. It has passed 26 product test certifications from the Swiss third-party testing authority SGS, ensuring worry-free electrical usage.
SGS Switzerland Authority Certification
Thanks to its comprehensive safety design, DJI Power 500 has gained the high-quality portable power station certification from SGS Switzerland, and received 26 product test certifications, including 2 product test verifications, 4 mechanical performance tests, 9 electrical performance tests, 3 environmental resistance tests, 5 noise-level tests, and 3 intelligent and efficient DC power-supplying and recharging tests.
Intelligent Battery Management System (BMS)
When the safety threshold of electricity usage is surpassed, the protective mechanism for supplying power and recharging will kick into action automatically. And once electricity supply returns to normal, DJI Power 500 will resume operation.
LFP Cel
The LFP cell is safe and durable, and can achieve 4000 cycles, providing a lifespan of approximately 10 years, even with frequent use.
Safe and Reliable Power Usage
11 Temperature Sensors
11 temperature sensors on the device continually monitor heat dissipation, and the power station can function normally even in temperatures as high as 40° C (104° F).
Power Outage Protection
Ten fuses located throughout the power station provide circuit protection for each module. Even if there is a circuit abnormality, DJI Power 500 will respond quickly and safely.
UPS Mode, Seamless Power Continuity
If an electrical device is connected to a powered-on DJI Power 500 (via AC output port) and both are receiving grid power, DJI Power 500 defaults to UPS (Uninterruptible Power Supply) mode. In cases of sudden power outage, DJI Power 500 can start powering the connected device (or devices) within 0.02 seconds, ensuring continued operation.
Ultra-Quiet Operation
The noise level of DJI Power 500 is as low as 25 dB during recharging, lower than most household refrigerators, so there is no noise disturbance even in quiet environments.
Ample Accessories
Extensive Ports, Expanded Applications
Dual USB-C Two-Way Ports (100W Max)
Dual 100W USB-C two-way ports support both power input and output, and support the PD 3.0 fast charging protocol, enabling efficient output and input. Both ports can simultaneously recharge DJI Power 500 at a maximum of 200 W, or provide power supply separately to devices like cameras, phones, and laptops at 100 W max.
Extensive Accessories
DJI Power 500 has dual two-way USB-C ports, dual AC output ports, dual USB-A ports, and one SDC Lite port. It is highly versatile to make power usage in various scenarios more convenient. It can connect to different types of solar panels, power cables, and adapter cables, meeting the needs of a variety of power supply and recharging options.
| General | |
| Model | DYM500L/DYM500H |
| Capacity | 512 Wh |
| Net Weight | Approx. 7.3 kg |
| Dimensions | 305×207×177 mm (L×W×H) |
| Number of Ports | AC Output × 2 |
| USB-C × 2 | |
| USB-A × 2 | |
| SDC Lite × 1 | |
| AC Input × 1 | |
| Max Operating Altitude | 3000 m |
| Output Specifications | |
| AC Output | DYM500L: AC 100-120 V, 50/60 Hz, max continuous output: 1000 W |
| DYM500H: AC 220-240 V, 50/60 Hz, max continuous output: 1000 W | |
| Max continuous output power is available when the product's battery level is above 20%. AC output data varies by country and region. | |
| AC Output (Bypass Mode) | DYM500L: AC 100-120 V, max 1000 W |
| DYM500H: AC 220-240 V, max 1000 W | |
| USB-A Output | 5 V, 3 A |
| 9 V, 2 A | |
| 12 V, 2 A | |
| Max output power per channel: 24 W | |
| USB–C Output | 5 V, 5 A |
| 9 V, 5 A | |
| 12 V, 5 A | |
| 15 V, 5 A | |
| 20 V, 5 A | |
| Max output power per channel: 100 W (device being charged should support PD 3.0 protocol) | |
| SDC Lite Output | SDC Lite: 9-27 V, max output power: 240 W |
| Input Specifications | |
| AC Input | DYM500L: AC 100-120 V, 540 W (recharging), 1000 W (Bypass mode) |
| DYM500H: AC 220-240 V, 540 W (recharging), 1000 W (Bypass mode) | |
| SDC Lite Input | DC 22.4-29.2 V, max 300 W, 10 A |
| USB–C Input | DC 5-20 V, max 100 W (the charger should support PD 3.0 protocol) |
| Supports simultaneous power input with two USB-C ports at a max 200 W. | |
| Battery | |
| Cell Chemistry | LFP (lithium ferrophosphate) |
| Cycle Life | Maintains over 70% capacity after 4000 cycles. |
| Measured at 25℃/77°F room temperature, being recharged in the 270W Standard Recharge Mode, and at an output power of 500 W. | |
| Operating Temperature | |
| Power Supply Temperature | -10° to 45° C (14° to 113° F) |
| Recharging Temperature | 0° to 45° C (32° to 113° F) |
| Storage Temperature | -10° to 45° C (14° to 113° F) |
