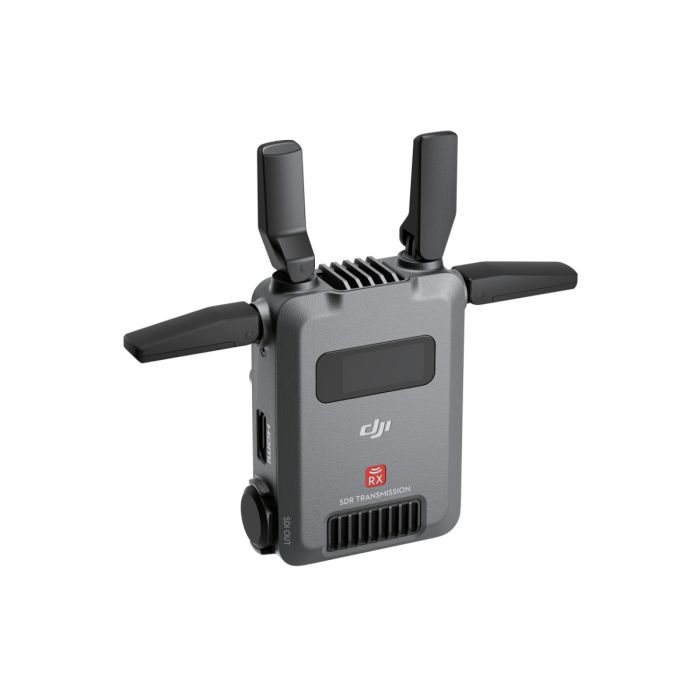

DJI SDR Transmission Receiver

by DJI

Verfügbarkeit: Auf Lager

SKU

CP.RN.00000401.01

349,00 € 279,20 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

DJI SDR Transmission Receiver (RX)

Details

The receiver can output to monitors via SDI/HDMI. Additionally, the transmitter allows for direct connection to smartphones or tablets over Wi-Fi, offering a cost-effective, dual-channel monitoring experience without the need for a receiver. Users can use a USB-C cable to connect the receiver to a smartphone or tablet for smooth and stable monitoring.

Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.

Communicate With Voice Call

DJI SDR Transmission enables one-on-one real-time communication between the receiver and transmitter, allowing for seamless conversations between the cinematographer and the director or client at any time.

DJI SDR Transmission Receiver Ports

USB-C Port

USB-C Firmware Update and Video
Output Port

USB-C Port

USB-C Power Port

3.5mm Stereo Jack

Supports one-on-one voice calls.

HDMI Output Port

Supports 1080p/60fps video and audio output.

SDI Output Port

Supports 1080p/60fps video and audio output.

Mehr Informationen

Weight	Approx. 145 g (including antennas)
Dimensions	86.5×64×32 mm (L×W×H, excluding antennas)
Ports	SDI Output Port<br> HDMI Output Port<br> 3.5mm Stereo Jack<br> USB-C Firmware Update and Video Output Port<br> USB-C Power Port
Operating Frequency	SDR Operating Frequency<br> Non-DFS Frequency Band:<br> 2.4000-2.4835 GHz<br> 5.725-5.850 GHz<br><br> <sup>5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.</sup>
Transmitter Power (EIRP)	SDR:<br> 2.4000-2.4835 GHz:<br> < 30 dBm (FCC)<br> < 20 dBm (SRRC/CE/MIC)<br><br> 5.725-5.850 GHz:<br> < 30 dBm (FCC)<br> < 14 dBm (CE)<br> < 23 dBm (SRRC)
Max Bandwidth	20 MHz
Max Bitrate	20 Mbps<br> <sup>Measured in Control mode, with Broadcast mode turned off.</sup>
Power Consumption	8.3 W<br> <sup>Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.</sup>
Power Supply	USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)<br> USB-C Power Supply Type 2: 6.8-17.2 V DC<br> NP-F Battery Power Supply Voltage: 6.8-8.4V
Output Video Format	1080p: 23.98/24/25/29.97/30/50/59.94/60fps<br> 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).<br> 720p: 50/59.94/60fps<br>
Output Audio Format	PCM
Video Transmission System	SDR
Video Transmission Latency	80 ms (including camera and screen display latency)<br> 35 ms (excluding camera and screen display latency)<br> <sup>Measured when shooting 1080p/60fps video with Broadcast mode turned off.</sup>
Video Coding Format	H.264
Max Transmission Distance	3 km (FCC)<br> 2 km (CE/SRRC/MIC)<br> <sup>Measured in Control mode, with Broadcast mode turned off.</sup>
Operating Temperature	-10° to 40° C (14° to 104° F)
