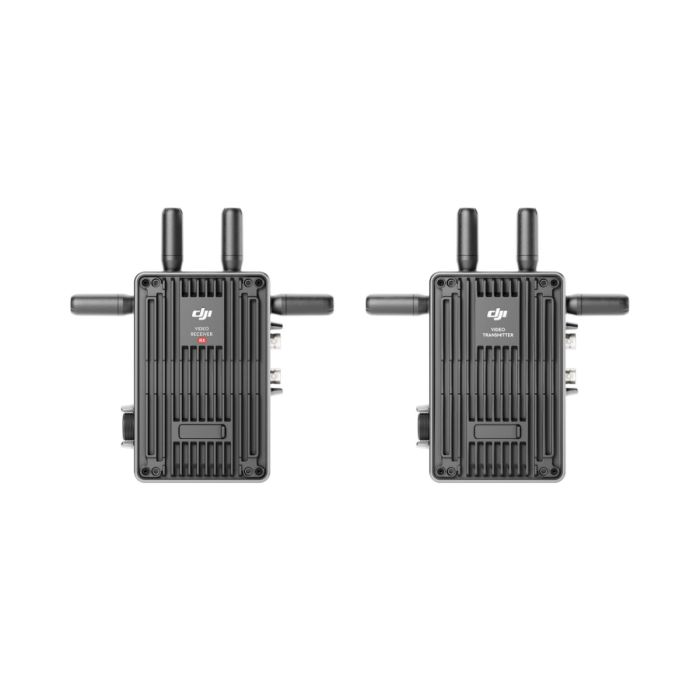

DJI Transmission Standard Combo

by DJI

Verfügbarkeit: 14-20 days delivery

SKU

CP.RN.00000318.01

DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder.

Normalpreis 2.400,00 € * Minimal price in last 30 days Sonderangebot 2.040,00 € 1.632,00 €

Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

-15%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Paket beinhaltet

1x DJI Video Transmitter
1x DJI Video Receiver
2x WB37 Battery Adapter
2x WB37 Intelligent Battery
1x WB37 Battery Charging Hub (USB-C)
1x RS Gimbal Mounting Plate
2x NP-F Battery Adapter
1x DJI Transmission USB-C Power Cable
1x DC to P-TAP Power Cable
1x SDI Cable
1x USB-C Cable
1x Protector Case
2x Ronin Video Transmission Antenna
1x Installation Toolkit

Details

DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

Long-Distance HD Live Feed

Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft [1] transmission distance at 1080p/60fps.

Unlimited Number of Receivers [2]

Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency.

Triple-Band Seamless Auto Hopping

Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use.

End-to-End Ultra-Low Latency

Use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.

Integrated Wireless Receiver

The DJI High-Bright Remote Monitor[3] integrates monitor and receiver with expansion features and supportive tools for precise control.

Remote Gimbal/Focus/Camera Control [4]

When used with Ronin 4D Hand Grips or DJI Master Wheels, [5] you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.

Independent Recording and Playback [4]

1080p/60fps H.264 footage can be independently recorded and stored on a microSD card, making it easy to edit samples right on set.

1. Measured in Control mode (with Broadcast mode turned off) with FCC compliance in a standard, interference-free environment.

2. Supported in Broadcast mode.

3. If the DJI High-Bright Remote Monitor is needed, purchase the DJI Transmission (High-Bright Monitor Combo).

4. Only supported by DJI Transmission (High-Bright Monitor Combo).

5. Sold separately.

Mehr Informationen

Specifications
Weight	DJI Video Transmitter: Approx. 350 g (excluding antennas)
	DJI High-Bright Remote Monitor: Approx. 727 g (excluding antennas)
	DJI Video Receiver: Approx. 350 g (excluding antennas)
Dimensions	DJI Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
	DJI High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
	DJI Video Receiver: 127×87×26 mm (L×W×H, excluding antennas)
Operating Frequency	When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
	Non-DFS Frequency Band:
	2.400-2.484 GHz
	5.150-5.250 GHz
	5.725-5.850 GHz
	DFS Frequency Band:
	5.250-5.350 GHz
	5.470-5.600 GHz
	5.650-5.725 GHz
	When using the DJI Video Transmitter with the DJI Video Receiver:
	Non-DFS Frequency Band:
	2.4000-2.4835 GHz
	5.150-5.250 GHz
	5.725-5.850 GHz
	DFS Frequency Band:
	5.250-5.350 GHz
	5.470-5.725 GHz
	In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited, or the 5.1/5.2 GHz frequencies are only allowed for indoor use. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
Transmitter Power (EIRP)	When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
	2.400-2.484 GHz:
	<33 dBm (FCC)
	<20 dBm (SRRC/CE/MIC)
	5.150-5.250 GHz:
	<23 dBm (FCC/SRRC/MIC)
	5.250-5.350 GHz:
	<30 dBm (FCC)
	<23 dBm (SRRC/MIC)
	5.470-5.600 GHz, 5.650-5.725 GHz:
	<30 dBm (FCC)
	<23 dBm (CE/MIC)
	5.725-5.850 GHz:
	<33 dBm (FCC/SRRC)
	<14 dBm (CE)
	When using the DJI Video Transmitter with the DJI Video Receiver:
	2.4000-2.4835 GHz:
	<33 dBm (FCC)
	<20 dBm (SRRC/CE/MIC)
	5.725-5.850 GHz:
	<33 dBm (FCC)
	<14 dBm (CE)
	<23 dBm (SRRC)
Max Bandwidth	40 MHz
Max Bitrate	40 Mbps
Power Consumption	DJI Video Transmitter: 11 W
	DJI Video Receiver: 9 W
Power Supply Voltage	6 to 18 V
Output Voltage	Power output port: 6 to 18 V
Operating Time	DJI Video Transmitter: 3 hours 40 minutes
	Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.
	DJI High-Bright Remote Monitor: 2 hours
	Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.
	DJI Video Receiver: 3 hours 50 minutes
	Tested at room temperature (25°C/77°F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.
Input Video Format	DJI Video Transmitter:
	1080p: 23.98/24/25/29.97/30/50/59.94/60fps
	720p: 50/59.94/60fps
Output Video Format	When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
	1080p: 23.98/24/25/29.97/30/50/59.94/60fps
	720p: 50/59.94/60fps
	Only the DJI Video Transmitter supports video input at fractional frame rates and loop-out. The DJI High-Bright Remote Monitor and DJI Remote Monitor Expansion Plate do not support video display or output at fractional frame rates.
	When using the DJI Video Transmitter with the DJI Video Receiver:
	1080p: 23.98/24/25/29.97/30/50/59.94/60fps
	720p: 50/59.94/60fps
	When using the Ronin 4D Video Transmitter with the DJI Video Receiver:
	1080p: 24/25/30/50/60fps
Input Audio Format	SDI embedded, HDMI embedded
Output Audio Format	PCM
Video Transmission System	O3 Pro
Video Transmission Latency	70 ms
	Measured when shooting 1080p/60fps video.
Video Coding Format	H.264
Max Transmission Distance	6 km (FCC)
	4 km (CE/SRRC/MIC)
	Measured in open environments without obstructions or interference.
Operating Temperature	-10° to 45° C (14° to 113° F)
	When using the WB37 Intelligent Battery, the recommended operating temperature is above 0° C (32° F). Take measures to keep the battery warm when using in temperatures below 0° C (32° F).
Mirror Control Mode Supported Camera Models	ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
Others
Guaranteed software updates until	2026/12/31
