DPA SC4060-F10 d:screet Omni Mic, Hi-Sens, Beige, TA4F Mini-XLR

Verfügbarkeit: 7-10 days delivery
SKU
DPA-SC4060-F10

Hardwired TA-4F Connector, For Shure Wireless Transmitters

Normalpreis 3.900,00 HRK Sonderangebot 3.432,00 HRK 2.745,60 HRK

Paket beinhaltet

  • DPA Microphones 4060-F10 Hi-Sens Omni-Directional Miniature Condenser Microphone (Beige)
  • High-Boost Grid
  • Soft-Boost Grid

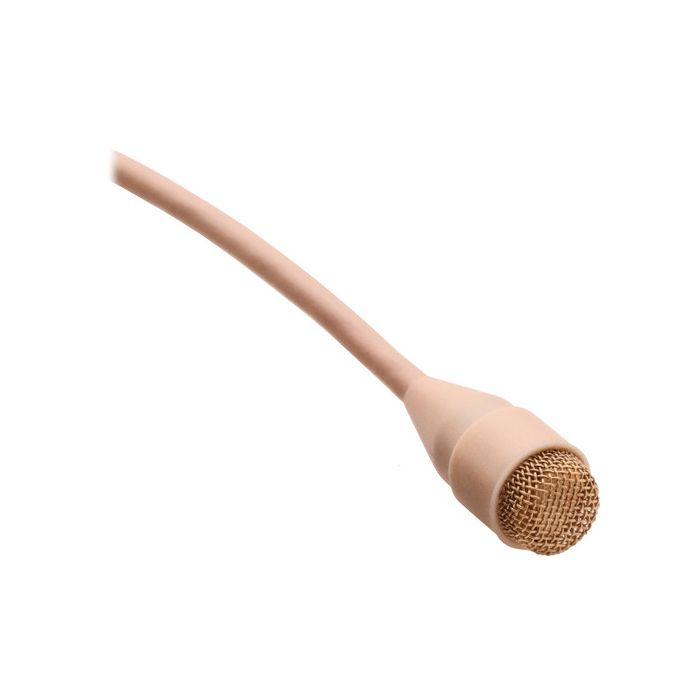

The beige 4060-F10 Hi-Sens Omni-Directional Miniature Condenser Microphone from DPA Microphones is designed for use with wireless systems in theater, television, and close-miked instrument applications. This condenser microphone is unobtrusive. Because of its small size, the tiny condenser exhibits an accurate omni-directional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.

The featured hardwire TA-4F connector is compatible with Shure Wireless Transmitters. This condenser microphone also features a 5.9’ (1.8m) cable and is supplied with 2 grids, one with a high boost and the other one with a soft boost. By changing these grids, you can acoustically modify the microphone's response according to its placement on the body including the chest, head, etc.

Offering good detail and resolution, the 4060-F10 Hi-Sens Omni-Directional Miniature Condenser Microphone has a neutral sonic character and is natural sounding. It has a low noise floor and impressive sensitivity, and can handle high SPLs. Musicians and engineers use this condenser microphone as a live or studio microphone for close-miking acoustic string instruments like violin, guitar, bass, viola, and harp. On television, the condenser microphone is popular as a lavalier lapel and tie clip mic.

Characteristics Directional Characteristics: Omni-directional
Principle of Operation Pressure
Cartridge Type Pre-polarized condenser element with vertical diaphragm
Frequency Range ±2 dB
Soft-Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High-Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz
Sensitivity Nominal: ±3 dB at 1 kHz: 20 mV/Pa, -34 dB re. 1 V/Pa
Equivalent Noise Level A-Weighted:
Typical: 23 dBA re. 20 µPa
Maximum: 26 dBA

ITU-R BS.468-4:
Typical: 35 dB
Maximum: 38 dB
S/N Ratio 1 kHz at 1 Pa (94 dB SPL): 71 dBA
Total Harmonic Distortion (THD) <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine
Dynamic Range Typical 100 dB
Maximum Sound Pressure Level (SPL) Peak Before Clipping: 134 dB
Output Impedance 30 to 40 Ω
Cable Drive Capability Up to 984' (300 m)
Connector Hardwired TA-4F connector
Temperature Range -40 to 113°F (-40 to 45°C)
Relative Humidity Up to 90%
Cable Length 5.9' (1.8 m)
Dimensions (Ø x L) 0.21 x 0.50" (5.40 x 12.70 mm)
Weight 1 lb (0.5 kg)
Packaging Info
Package Weight 1.0 lb
Box Dimensions (LxWxH) 6.0 x 6.0 x 2.0"
