DPA SC4061-B03 d:screet Omni Mic, Lo-Sens, Black, 3-pin Lemo

by DPA
Verfügbarkeit: 7-10 days delivery
SKU
DPA-SC4061-B03

For Sennheiser Wireless Systems, Designed for Unobtrusive Use, Close Mic Applications,Includes High Boost & Soft Grids

517,75 € 414,20 €

Paket beinhaltet

  • DPA Microphones 4061 Miniature Omnidirectional Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems (Black)
  • High-Boost Grid
  • Soft-Boost Grid

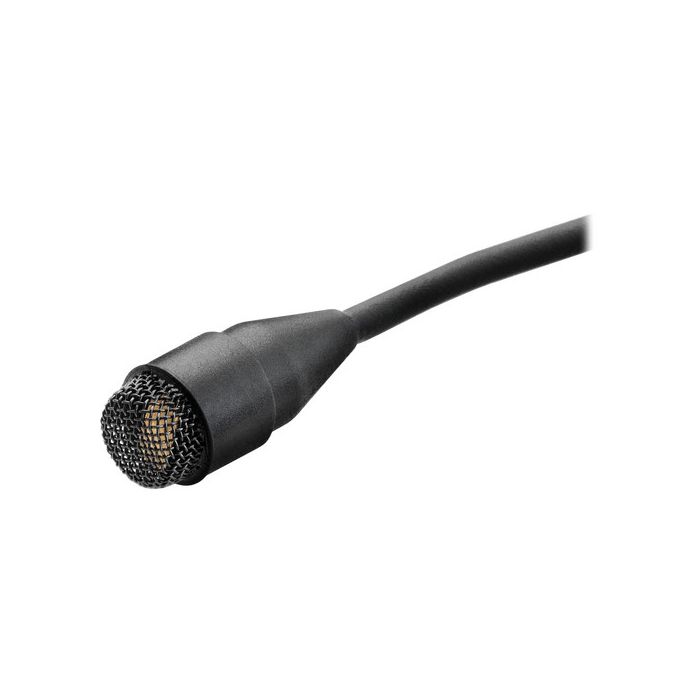

The black 4061 Miniature Omnidirectional Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems from DPA Microphones is designed for unobtrusive use in television and theater applications. The mic can also be used for close miking string instruments such as violin, guitar, bass, viola, or harp. It is acoustically identical to DPA's 4060 but with an output sensitivity adjusted for more sensitive transmitters. The mic features a neutral sonic character that is designed for accurate reproduction of your source audio with no coloration.

Polar Pattern Omnidirectional
Principle of Operation Pressure
Cartridge Type Pre-polarized condenser element with vertical diaphragm
Frequency Range Soft-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 3 dB soft boost at 8 to 20 kHz
High-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 10 dB boost at 12 kHz
Sensitivity 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1 kHz)
Equivalent Noise Level A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA

ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB
S/N Ratio 68 dBA, 1 kHz at 1 Pa (94 dB SPL):
Total Harmonic Distortion (THD) <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine
Dynamic Range Typical 97 dB
Maximum Sound Pressure Level (SPL) Peak Before Clipping: 144 dB
Output Impedance 30 to 40 Ω
Cable Drive Capability Up to 984' (300 m)
Connector Hardwired 3-Pin LEMO Connector
Temperature Range -40 to 113°F (-40 to 45°C)
Relative Humidity Up to 90%
Cable Length 5.9' (1.8 m)
Dimensions (Ø x L) 0.21 x 0.50" (5.40 x 12.70 mm)
Weight 0.26 oz (7.5 g)
Packaging Info
Package Weight 0.15 lb
Box Dimensions (LxWxH) 4.3 x 2.6 x 0.9"
