DPA SC4063-BM d:screet Omni Mic, Lo-Sens & DC, Black, MicroDot
by DPADesigned for Unobtrusive Use, Close Mic Applications, Includes High- & Soft- Boost Grids
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones d:screet mini 4063 Omnidirectional Miniature Microphone, Clip, and Windscreen with a Microdot Connector (Black)
- Clip
- Windscreen
- High-Boost Grid
- Soft-Boost Grid

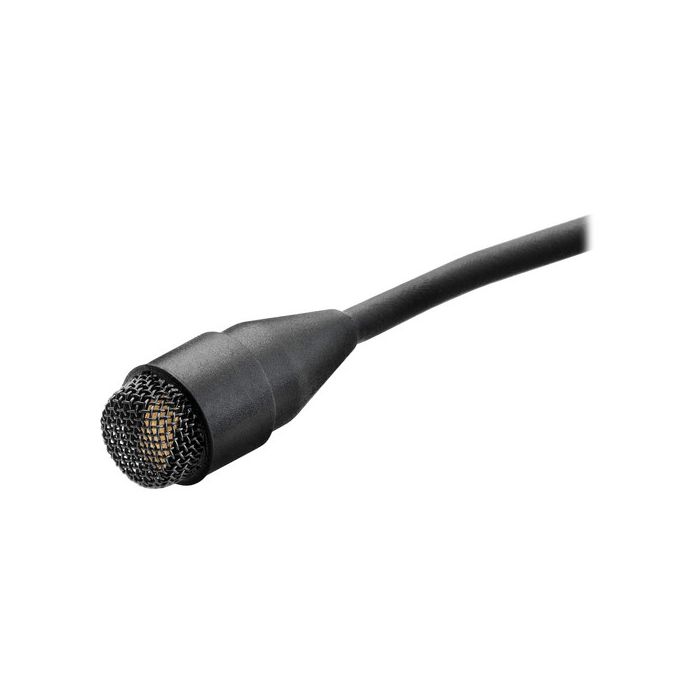

The black d:screet mini 4063 Omnidirectional Miniature Microphone, Clip, and Windscreen with a Microdot Connector from DPA Microphones is designed for unobtrusive use in television and theater applications. The mic can also be used for close miking string instruments such as violin, guitar, bass, viola, or harp. It is acoustically identical to DPA's 4061 but with a FET preamp in the input stage for working with a lower voltage power supply. It has a neutral sonic character that is designed for accurate reproduction of your source audio with no coloration.
High- and soft-boost grids are included, allowing you to alter the 4063's tone based on its placement.
Polar Pattern | Omnidirectional |
Principle of Operation | Pressure |
Cartridge Type | Pre-polarized condenser element with vertical diaphragm |
Frequency Range | Soft-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 3 dB soft boost at 8 to 20 kHz High-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 10 dB boost at 12 kHz |
Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1 kHz) |
Equivalent Noise Level | A-Weighted: Typical: 26 dBA re. 20 µPa Maximum: 28 dBA ITU-R BS.468-4: Typical: 38 dB Maximum: 40 dB |
S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): |
Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak <1% THD up to 120 dB SPL RMS sine |
Dynamic Range | Typical 97 dB |
Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 138 dB |
Output Impedance | 30 to 40 ohms |
Cable Drive Capability | Up to 984' (300 m) |
Connector | Microdot connector |
Temperature Range | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 6' (1.8 m) Cable Diameter: 0.06" (1.6 mm) |
Dimensions (Ø x L) | 0.21 x 0.50" (5.40 x 12.70 mm) |
Weight | 0.26 oz (7.5 g) |
Packaging Info | |
---|---|
Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
