DPA SC4063-FM d:screet Omni Mic, Lo-Sens & DC, Beige, MicroDot
by DPAOmnidirectional, Low Sensitivity, Beige, Requires Adapter
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones 4063 Omnidirectional Miniature Low-Sensitivity and Low-DC Microphone (Beige)
- High Boost Protection Grid
- Soft Boost Protection Grid

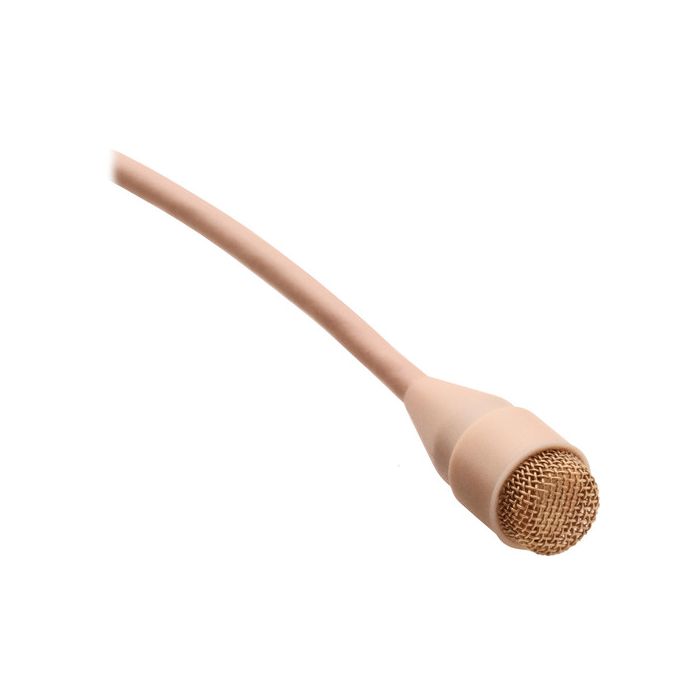

The DPA 4063 is a miniature omnidirectional lavalier microphone designed for use in performance and theatrical applications. The miniature lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double-vent protection system and moisture-resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc.
The 4063 includes interchangeable capsule protection grids that alter the signal character of the microphone. A "High Boost" capsule creates a peak at 12kHz, creating an airy texture to audio signal. The "Soft Boost" capsule creates a subtle boost between 8-20kHz, enhancing signal presence. With a SPL rating of 138dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4063 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs.
- Low Sensitivity and DC
- Identical to the DPA 4060, the 4063's low DC is designed to match systems delivering down to 3V power. Sensitivity is adjusted to 6mV/Pa to match some of the more sensitive transmitters on the market.
- Moisture Resistant
- The 4063 features a double-vent protection grid and moisture-resistant materials which prevent damage from humidity, perspiration and makeup.
- Frequency-Altering Grids
- The microphone includes "high boost" and "soft boost" protection grids that alter the frequency response and accentuate high frequency signals.
- Sensitive Condenser
- If powered correctly the microphone will be able to handle sound pressure levels up to 138dB SPL before clipping occurs.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.
Transducer | Pre-Polarized Condenser |
Polar Pattern | Omnidirectional |
Frequency Response | Soft Boost Grid: 20 Hz-20 kHz +/- 2 dB, 3 dB soft boost at 8 Hz - 20 kHz High Boost Grid: 20 Hz-20 kHz +/- 2 dB, 10 dB boost at 12 kHz |
Dynamic Range (Typical) | Not Specified by Manufacturer |
Signal-to-Noise Ratio | Typical 35 dB (max. 38 dB) |
Maximum Input Sound Level | 138 dB SPL Before Clipping |
Power Requirements | +48 V |
Output Impedance | 30 to 40 Ohm |
Output Connectors | MicroDot |
Pad | No |
Low Frequency Roll-Off | No |
Dimensions | Cable Length: 5.9' (1.8 m) |
Weight | 0.26 oz (7.5 g) including Cable and MicroDot |
Packaging Info | |
---|---|
Package Weight | 0.1 lb |
Box Dimensions (LxWxH) | 5.0 x 4.8 x 0.1" |
