- DPA SCO60C00-S d:screet Slim Omni Mic, Hi-Sens, Brown, MicroDot
DPA SCO60C00-S d:screet Slim Omni Mic, Hi-Sens, Brown, MicroDot
by DPAFor Stage, Television, & Film, Invisible with Button-Hole Mount, 20 Hz to 20 kHz Frequency Response, MicroDot Connector Included, Adapts to All Pro Wireless Systems
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 1 x DPA SCO60C00-S d:screet Slim Omni Mic, Hi-Sens, Brown, MicroDot

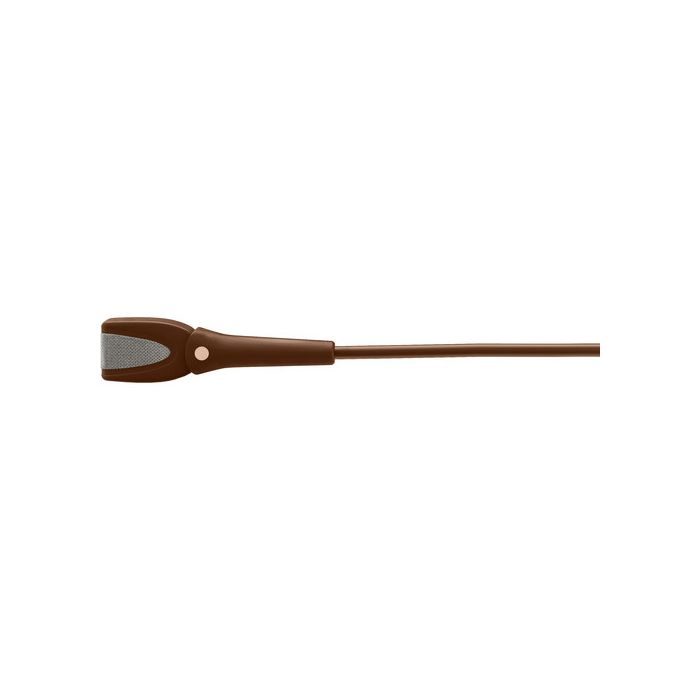

The brown d:screet Slim 4060 Omnidirectional Microphone with Hi-Sensitivity & MicroDot Connectorfrom DPA is a flat, short microphone with a cable that runs perpendicular to the sound inlet, ensuring easy mounting and a tiny footprint. When used with the detachable Button-Hole Mount (included), it becomes completely invisible, ideal in applications for film, theater, broadcast TV, and more.
The d:screet Slim 4060 Omnidirectional Microphone easily adapts to your needs via the MicroDot connector, offering a range of accessories and adapters available for all pro wireless systems. Featuring the same capsule as DPA's classic d:screet 4060 Omnidirectional Miniature Microphone, but in a different housing, the Slim Series delivers sound on par with the Miniature Series, making it a suitable choice for any application requiring big sound and a small, hidden footprint.
- Button-Hole Mount
- The d:screet Slim Omnidirectional Microphone comes with a unique Button-Hole Mount. It mounts on the mic head and has a small side-entry pipe (2 mm diameter). The pipe makes it possible for sound to enter the mic when it is concealed in a button hole. It should be mounted on the side of the microphone with the silver dot
- Adapts to All Pro Wireless Systems
Directional Characteristic | Omnidirectional |
Principle of Operation | Pressure |
Cartridge Type | Pre-polarized condenser |
Frequency Range | +/- 2 db: Soft Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
Sensitivity | 20 m V/Pa, -34 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) |
Equivalent Noise Level | A-weighted: Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A)) ITU-R BS.468-4: Typ. 35 dB (max. 38 dB) |
Signal to Noise Ratio | 71 dB (A) A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL |
THD | < 1 % THD up to 123 dB SPL peak, < 1 % THD up to 120 dB SPL RMS sine |
Dynamic Range | Typ. 100 dB |
Maximum SPL | 134 dB peak before clipping |
Output Impedance | From MicroDot: 30 to 40 ohms |
Cable Drive Capability | Up to 984' (300 m) |
Power Supply | For Wireless Systems: min. 5 V - max. 50 V through DPA adapter With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance |
Current Consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter |
Connector | MicroDot |
Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
Temperature Range | -40 to 113 ° F (-40 to 45 ° C) |
Relative Humidity | Up to 90% |
Cable | Length: 5.9' (1.8 m) Diameter: 0.06" (1.6 mm) |
Dimensions (L x Diam) | Microphone: 0.5 x 0.2" (12.7 x 5.1 mm) |
Weight | 0.3 oz (8.5 g) including cable and MicroDot connector |
