DPA VO10-rock d:vote 4099 Rock Touring Kit, 10 Mics and accessoires for Hi SPL
by DPAGood Frequency and Phase Response, Capable of Handling High SPLs, Compact, Discreet Size, Versatility in Mounting Options
5.5" Gooseneck Included, Carrying Case is Included
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- 10 x d:vote 4099 Instrument Microphone (Microphone Only - Low Sensitivity)
- 10 x DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip)
- 10 x CM2218B00 2.2mm Miniature Microphone Cable
- 2 x VC4099 Violin Mounting Clip for 4099 Microphone
- 2 x Mounting Clip for DPA 4099C Clip Microphone for Cello
- 2 x PC4099 Magnet Mount
- 2 x GC4099 Guitar Mounting Clip for 4099 Microphone
- 5 x STC4099 Saxophone Mounting Clip for 4099 Microphone
- 4 x UC4099 Universal Clip
- Mounting Clip for DPA 4099B Clip Microphone for Acoustic Bass
- 7 x DC4099 Mounting Clip for Drum Rims

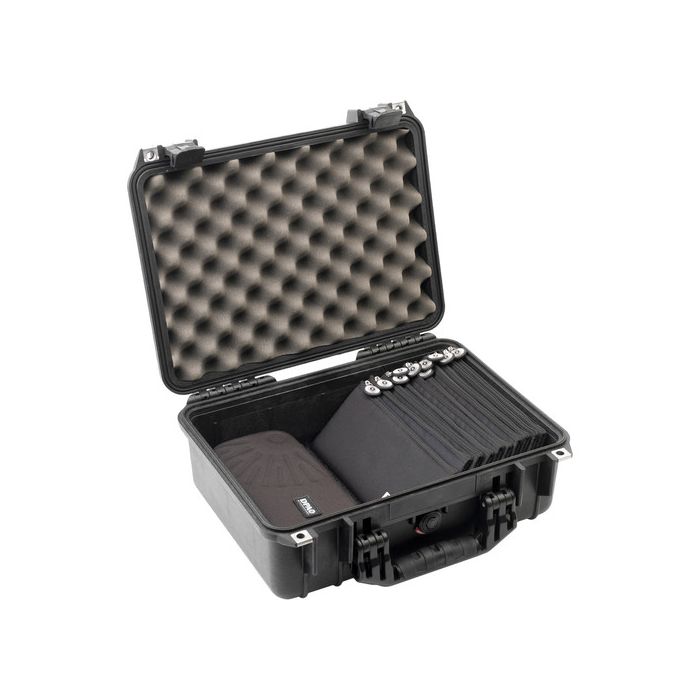

- DPKE9001 Peli Case
The d:vote 4099 Rock Touring Kit, 10 Mics and Accessories for High SPL from DPA is a complete solution for capturing instruments or vocals in recording and live sound reinforcement applications. It is designed for on-the-road-use and is suitable for rental companies, musicians, theaters, touring companies, and similar scenarios. The kit includes ten 4099 instrument microphones with MicroDot connectors, ten MicroDot to 3-pin XLR adapters with belt clips, ten miniature microphone cables, two violin clips, two cello clips, two guitar clips, two piano clips, seven drum clips, five trumpet and sax clips, four universal clips, one bass clip, and a Peli case for transportation. The detachable lightweight cable connects the 5.5" gooseneck to the XLR adapter, enabling you to conveniently mount the microphone on an instrument before connecting it. The 4099 microphone offers a low profile and unobtrusive design combined with high quality sound and accurate dynamics for a wide variety of instruments.
- High-quality frequency and phase response
- Capable of handling high SPLs
- Compact, discreet size
- Variety of mounting options
- Detachable cable and versatile gooseneck extender
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance) |
Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 100 dB |
Maximum SPL | 142 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: > 60 dB @ 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Compatibility | Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm) |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter) |
Operating Temperature | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Gooseneck | Length: 5.5" (140 mm) |
Microphone Length | 1.8" (45 mm) |
Weight | 1.16 oz (33 g) |
