- DPA VO4099Hi d:vote 4099 Clip Microphone in Pouch, Hi-Sens
DPA VO4099Hi d:vote 4099 Clip Microphone in Pouch, Hi-Sens
by DPA
Verfügbarkeit:
7-10 days delivery
SKU
DPA-VO4099Hi
For Live Sound, 6 mV/Pa Sensitivity, 142 dB Maximum SPL, 5.5" Adjustable Gooseneck, MicroDot Connector
418,25 €
334,60 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones d:vote 4099 Instrument Microphone (Microphone Only - High Sensitivity)
- Carry Pouch

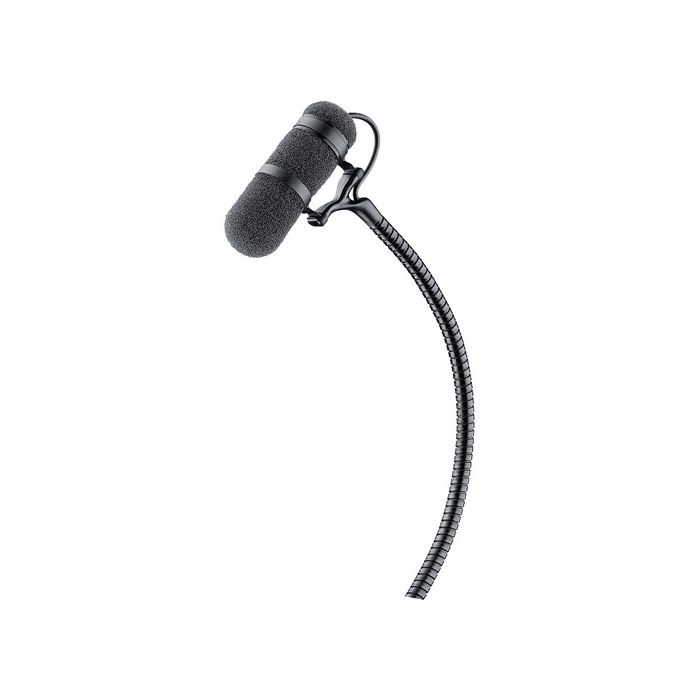

The high-sensitivity (6 mV/Pa) d:vote 4099 Instrument Microphone from DPA Microphones utilizes a supercardioid condenser capsule that can handle a maximum SPL of 142 dB.
The microphone body is connected to a 5.5" adjustable gooseneck for ease in positioning. The microphone terminates in a MicroDot connector, allowing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. A range of accessories including clips for attaching the microphone to various instruments are available sold separately.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance) |
Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 100 dB |
Maximum SPL | 142 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: > 60 dB @ 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Compatibility | Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm) |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter) |
Operating Temperature | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Gooseneck | Length: 5.5" (140 mm) |
Microphone Length | 1.8" (45 mm) |
Weight | 1.16 oz (33 g) |
Packaging Info | |
---|---|
Package Weight | 0.15 lb |
Box Dimensions (LxWxH) | 9.5 x 4.7 x 0.5" |
