DPA VO4099Hi-P d:vote 4099 Clip Microphone in Pouch, Piano (1)
by DPADual Supercardioid 4099 Gooseneck Mics, Microphones Are Sensitivity Selected, Built-In Windscreen & Shock Mount System
Magnet Mounts Attach to Piano Frame, Includes Two 3-Pin XLR Adapters
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- DPA Microphones d:vote 4099P Stereo Microphone System for Piano
- 2 x Sensitivity Selected Supercardioid 4099 Gooseneck Microphones
- Integrated Windscreen & Shock Mount System
- Magnet Mounts to Place on Piano Frame
- 2 x DAD6001 3-Pin XLR Adapters

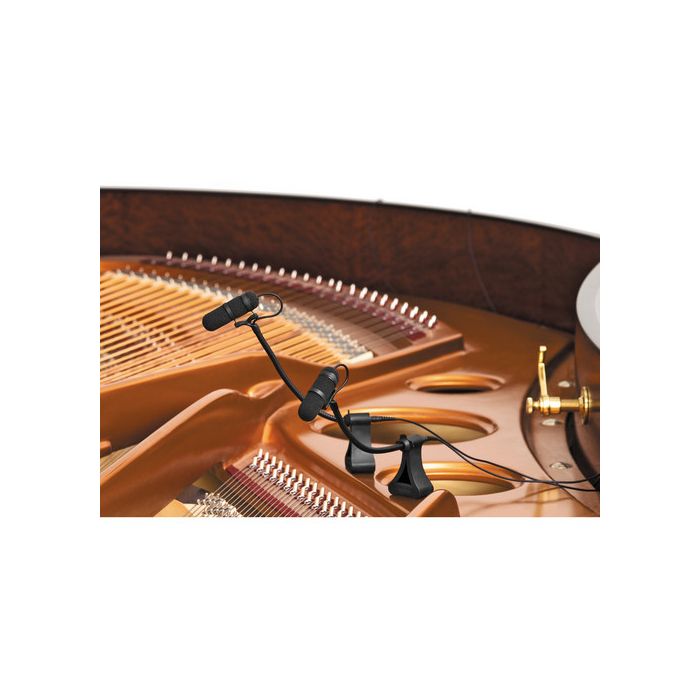

The DPA Microphones d:vote 4099P Stereo Microphone System for Piano is a piano miking solution that delivers a high level of isolation on stage while providing clean and transparent stereo sound quality with realistic dynamics. The system comes with everything you need including two mics, windscreens and shock mounts, magnet mounts and two XLR adapters. The mics and magnetic mounts afford realistic capture of a piano. Plus, they work for closed lid scenarios as well. The system provides stable and repeatable positioning. The mics can also be positioned at different angles. The mounts will work with magnetic surfaces on other instruments as well.
- High gain-before-feedback
- Flat frequency response
- Compact, discrete size
- Excellent phase characteristic
Optional Features
- Optional Gooseneck Extension
- Standard gooseneck length is 5.5" (140 mm), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument
- Detachable Cables
- The updated 4099 range features detachable cable from gooseneck, so it's more convenient to mount the mic on an instrument before connecting it. Furthermore, the choice of different cable qualities makes it possible to tailor your mic to the specific task, such as choosing the heavy duty 2.2 mm cable for PA/Live gigs or the easier-to-hide, thinner miniature cable for personal mounting on instruments where you don't want the cable weight to interfere with your performance. In case of cable break, service is easy and fast
Directional Pattern | Supercardioid |
Principle of Operation | Pressure gradient |
Cartridge Type | Pre-polarized condenser |
Frequency Range | Regular: 20 Hz - 20 kHz ± 2 dB, 7.9" (20 cm) Distance: 80 Hz - 15 kHz (with 2 dB soft boost at 10 - 12 kHz) |
Sensitivity | 6 mV/Pa -44.5 dB re. 1 V/Pa (nominal ± 3 dB at 1 kHz) |
Equivalent Noise | A-weighted: typ. 23 dB(A) re. 20 µPa (max. 26 dB - A) |
Signal to Noise Ratio | A-weighted re. 1 kHz at 1 Pa (94 dB SPL): 71 dB |
Total Harmonic Distortion | <1% up to 123 dB SPL peak <1% up to 120 dB SPL RMS sine |
Dynamic Range | 100 dB |
SPL | 142 dB (max peak before clipping) |
Output Impedance | From MicroDot: 30 - 40 ohms From DAD6001: 100 ohms |
Cable Drive Capability | Up to 984' (300 m) with DAD6001 XLR adapter |
Output Balance Principle | Signal balanced with DAD6001 XLR adapter |
Common Mode Rejection Ratio | >60 dB from 50 Hz - 15 kHz with DAD6001 XLR adapter |
Power Supply | Min. 5 V to max 50 V through DPA adapter for wireless systems, 48 V phantom power ± 4 V with DAD6001 XLR adapter (for full performance) |
Current Consumption | Typ. 1.5 mA (microphone) 3.5 mA with DAD6001 XLR adapter |
Connector | MicroDot |
Color | Black |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Sensitivity Selection | ± 1 dB (tolerance at 1 kHz) |
Temperature Range | 40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Length | Gooseneck: 5.5" (40 mm) Microphone: 1.8" (45 mm) Cable: 6' (1.8 m) |
Diameter | Capsule: 0.2" (5.4 mm) |
Weight | Microphone: 1.62 oz (46 g) |
Packaging Info | |
---|---|
Package Weight | 0.9 lb |
Box Dimensions (LxWxH) | 7.8 x 4.6 x 2.1" |
